Matrix FRAME User Manual

MATRIX FRAME - Installation Manual Page 12

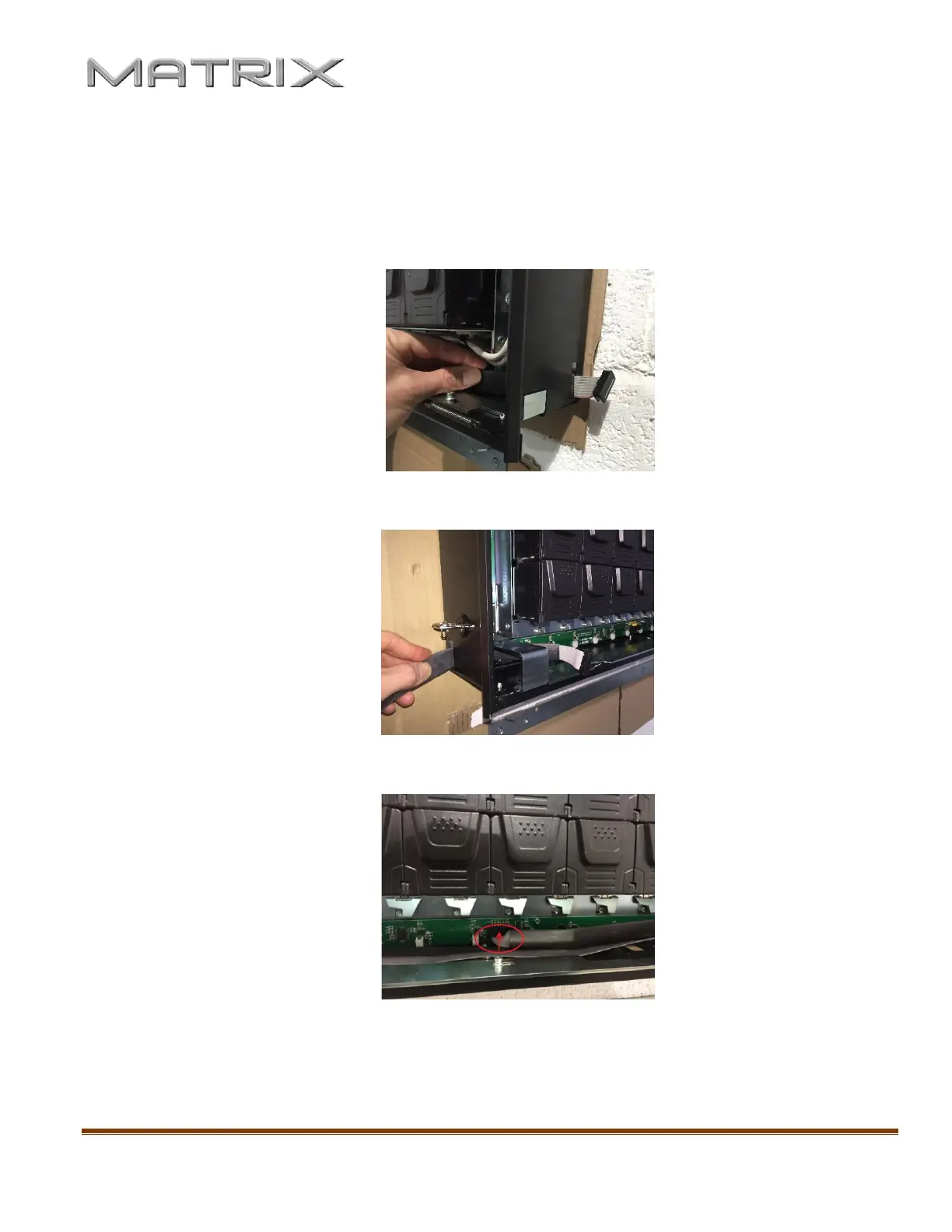

Connecting Touch and Pod
1. Disconnect the FRAME power adaptor plug from the socket at the bottom of the FRAME
2. Open the touch and pod's frame covers
3. Drive the flat connector cable through the pre-opened designated hole and outside of the Touch
FRAME
.
4. Drive the flat connecter cable into the Pod through the designated hole.
5. Connect the flat cable connector to the connector in the Pod board. Make sure it is firmly connected
6. Close the FRAME Touch and Pod covers and reconnect the FRAME power adaptor plug to the
socket at the bottom of the FRAME Touch.

Matrix FRAME Specifications

General

Type	Network Video Recorder (NVR)
Operating System	Embedded Linux
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Video Inputs	IP cameras
Network Interface	10/100/1000 Mbps Ethernet
Video Input Channels	32
Video Output Channels	1 (HDMI), 1 (VGA)
Recording Resolution	Up to 8MP
Compression	H.265, H.264
