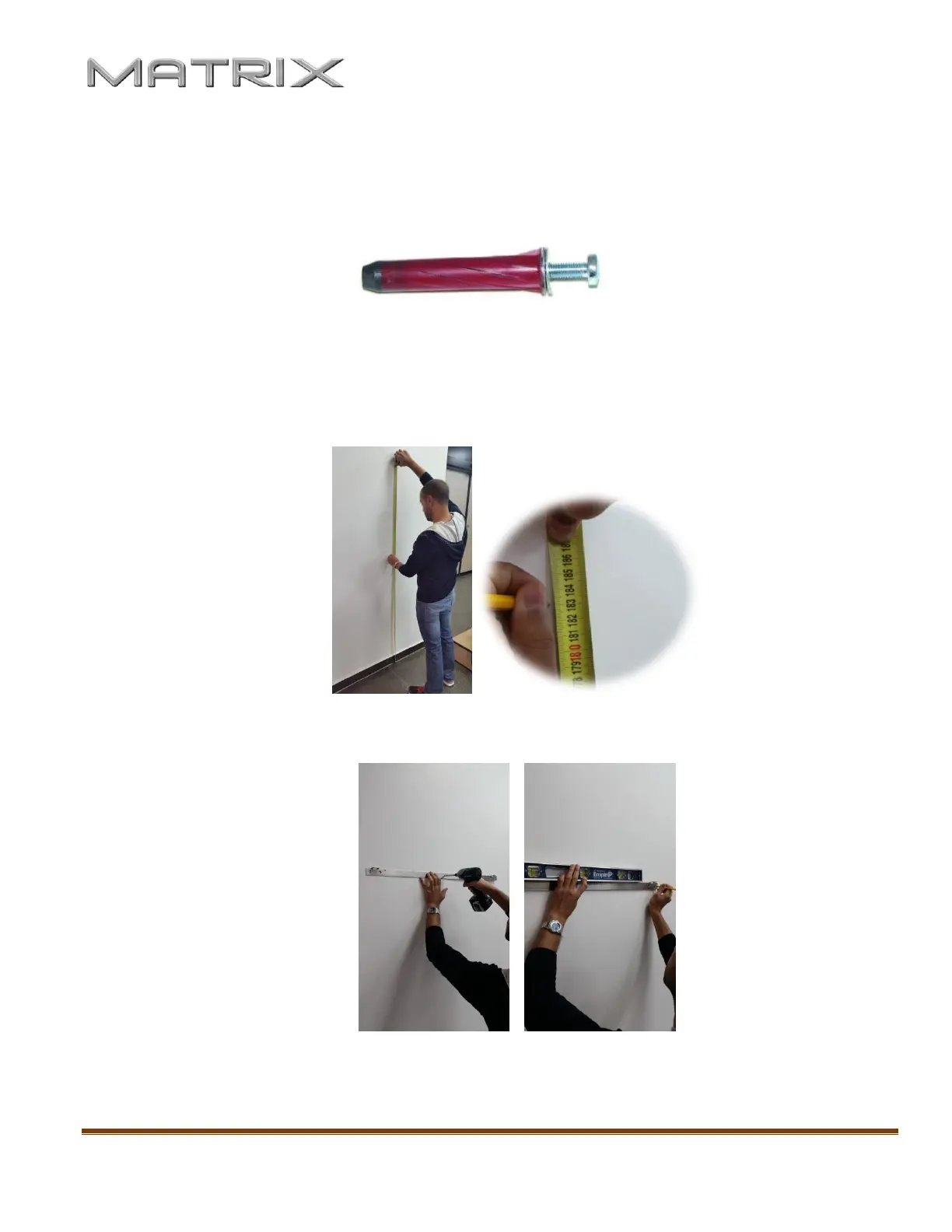

Step 1 – installing the FRAME unit
It is highly recommended to install the unit on a concrete or brick wall.
In case of installation on a drywall, use the dedicated masonry anchor showed below:
1) Mark the recommended height of 1.83m (72inch) from floor at the center of the unit
For MiniFrame recommended height is 1.73m (68inch) from floor
2) Drill the center hole and connect the mounting panel. Use a leveler and mark the 4 remaining holes

Matrix FRAME Specifications

General

Type	Network Video Recorder (NVR)
Operating System	Embedded Linux
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Video Inputs	IP cameras
Network Interface	10/100/1000 Mbps Ethernet
Video Input Channels	32
Video Output Channels	1 (HDMI), 1 (VGA)
Recording Resolution	Up to 8MP
Compression	H.265, H.264
