Matrix FRAME User Manual

MATRIX FRAME - Installation Manual Page 3
1. General
This document contains an overview of the MATRIX FRAME unit major hardware parts and provides a step
by step installation
The MATRIX FRAME is a wall mounted unit with configurable bins structure.
The unit is fully controlled by a dedicated PC offering highest level of security and management.

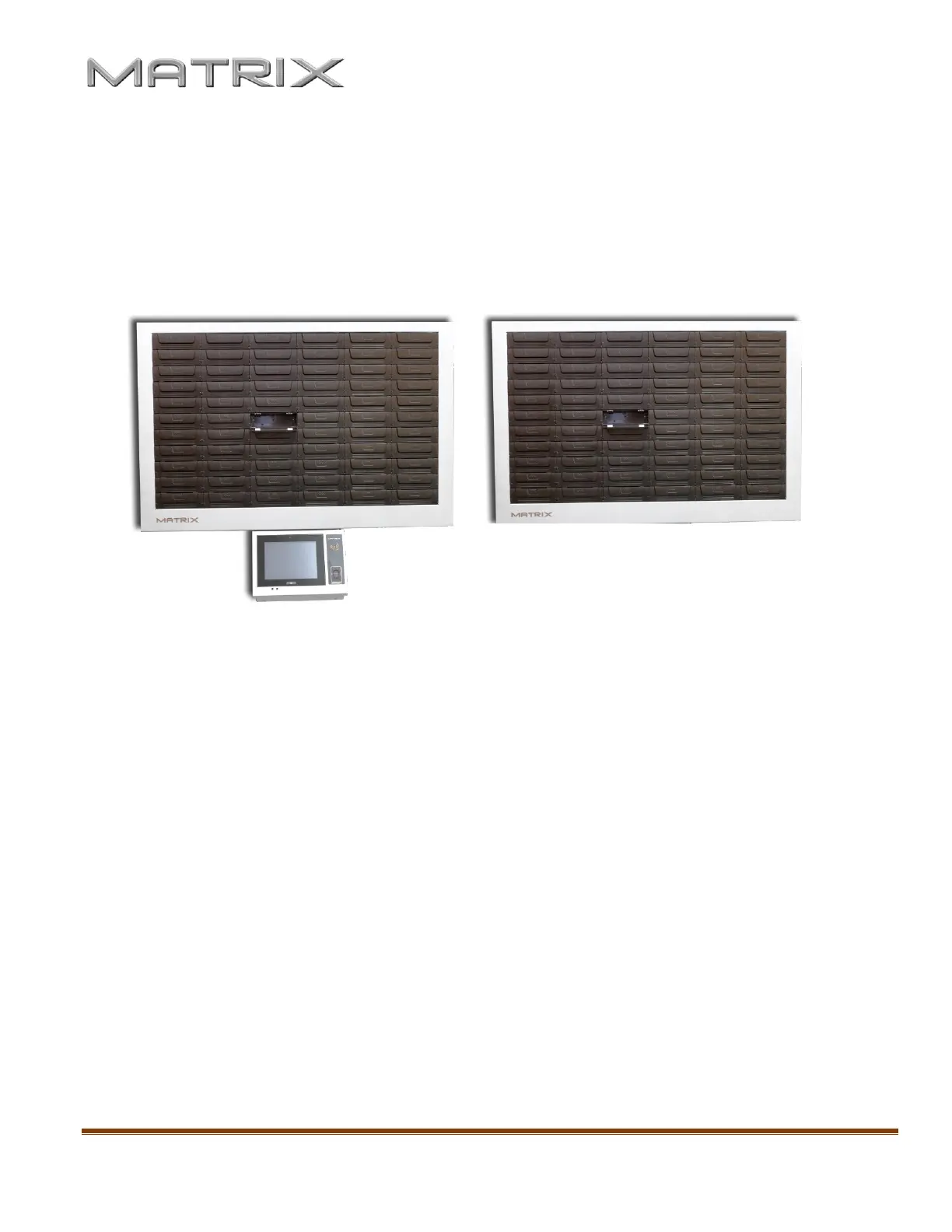

FRAME TOUCH FRAME
1.1. Product specification:
 Bins size: configurable
 Total size: (LxHxD) 1,000x660x120mm (39.4x26x4.7 Inch)
(MiniFrame) (LxHxD) 700x510x120mm (27.5x20x4.7 Inch)
 Weight: 36 kg (79lb) 25 kg (55lb) (MiniFrame)
 Materials: Top quality metal frame and ABS plastic bins
 Power supply: 110AC +/- 10% or 220AC +/-10%
1.2. Product contents:
 MATRIX FRAME
 10 Inch Panel PC (Touch version)
 RFID reader (Touch version)
 Biometric reader (Touch version)
 Security video camera (Touch version)
 Power supply cable

Matrix FRAME Specifications

General

Type	Network Video Recorder (NVR)
Operating System	Embedded Linux
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Video Inputs	IP cameras
Network Interface	10/100/1000 Mbps Ethernet
Video Input Channels	32
Video Output Channels	1 (HDMI), 1 (VGA)
Recording Resolution	Up to 8MP
Compression	H.265, H.264
