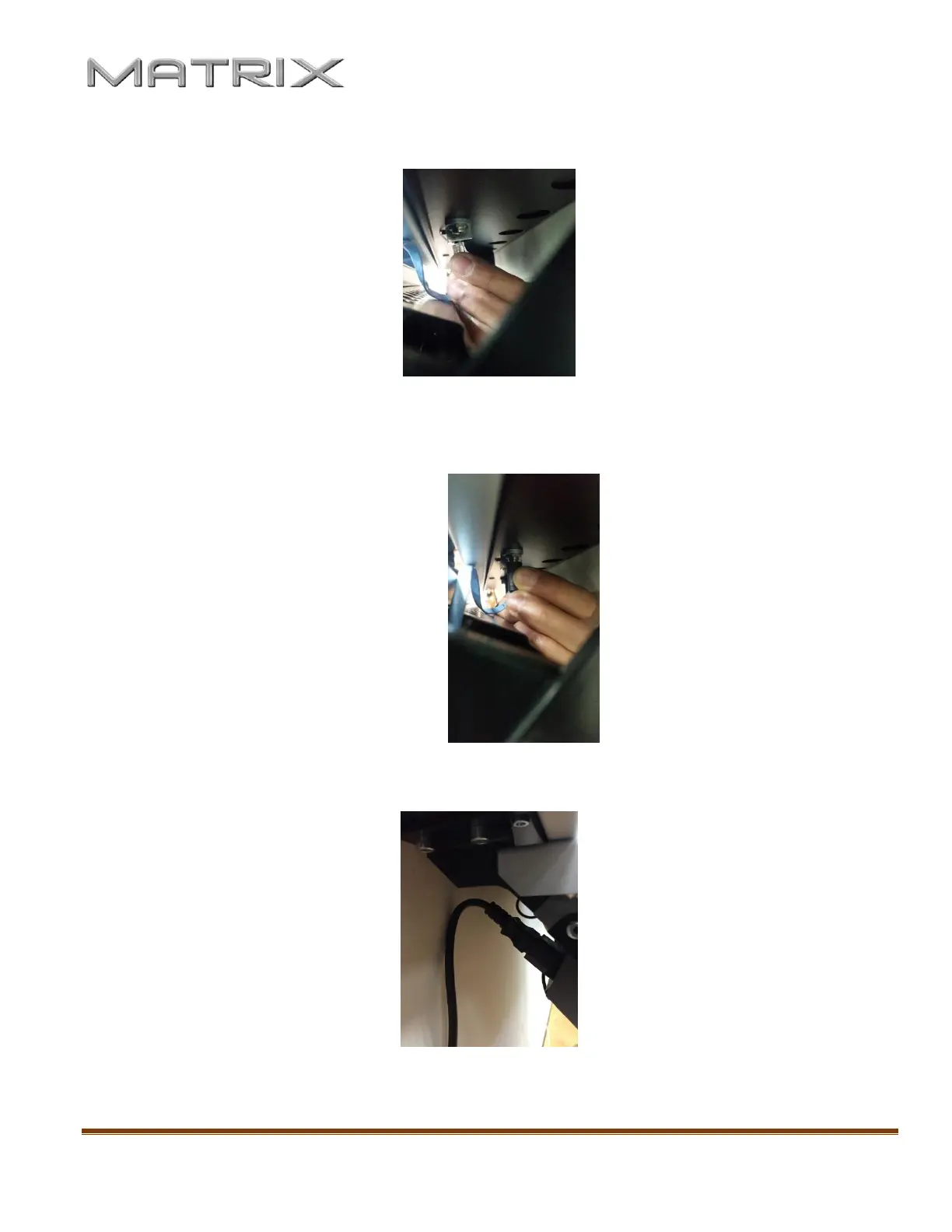

MATRIX FRAME - Installation Manual Page 8
10) Connect the connection cable to the left socket at the bottom of the FRAME unit (behind the PC)
11) Connect the FRAME power adaptor plug to the right socket at the bottom of the FRAME unit and
secure with the plastic connector (behind the PC)
12) Connect power cable to the socket and plug it to the power outlet
13) The machine will now turn on automatically
