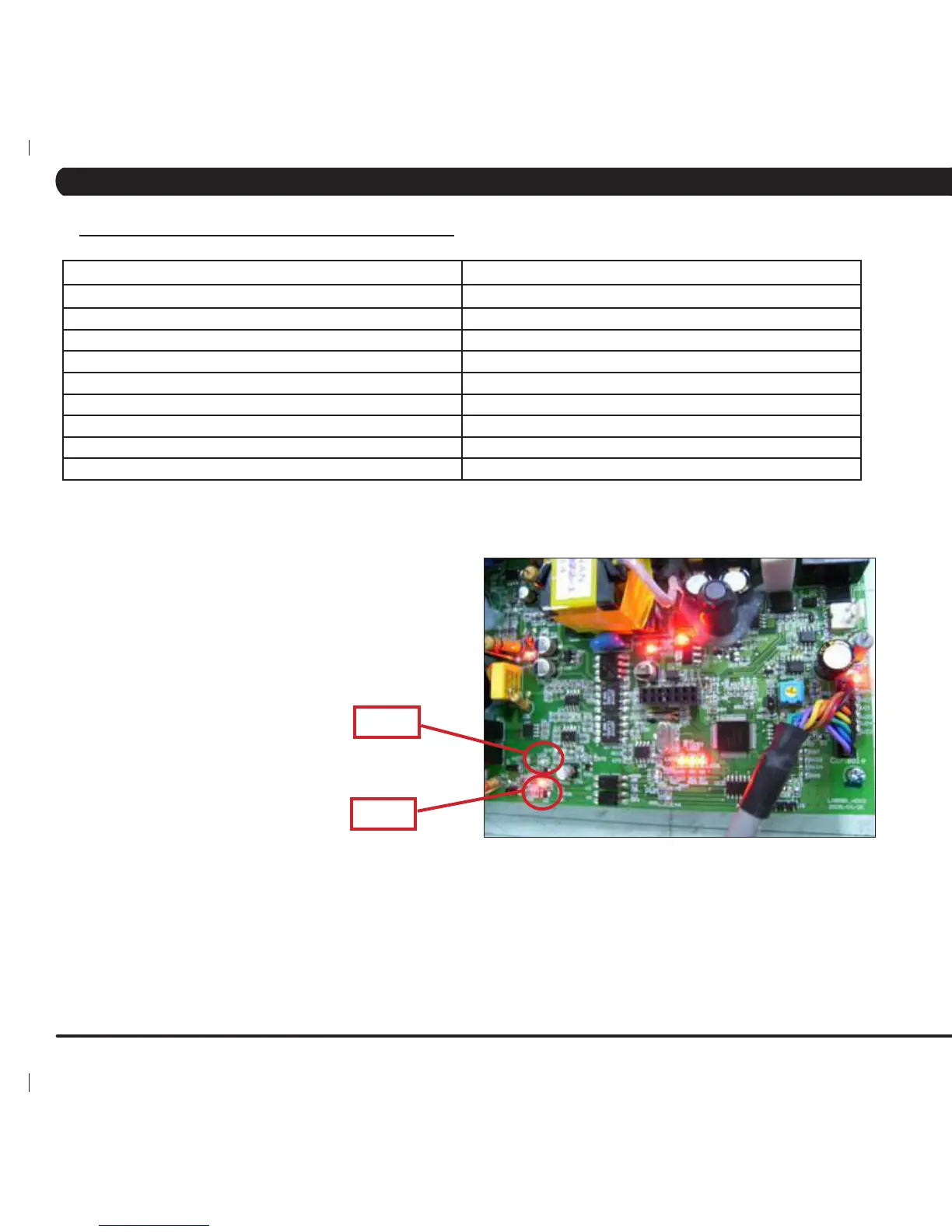

LED INDICATOR DESCRIPTION
LED 1 RPM (AC Plug In).
LED 2 +5V
LED 3 +15V
LED 4 Bus Voltage
LED 5 RPM (Generator).
LED 6 Status 1 (Program operation).
LED 7 Status 2 (Resistance value in middle 1/2 VCC).
LED 8 Status 3 (Digital Communication).
LED 9 +12V (Console Power).
7.3 LCB LED INSTRUCTIONS
WITHOUT AC PLUG - NORMAL
LED 2 - LED 9 - On.
LED 1 - Off (No AC plug detected).
LED 5 - On (Generator power detected),
WITH AC PLUG - NORMAL
LED 2 - LED 9 - On.
LED 1 - On (AC plug detected).
LED 5 - Off (No Generator power detected).
LED 1
LED 5
CHAPTER 7: TROUBLESHOOTING
