8.5 CONSOLE KEYPAD / OVERLAY REPLACEMENT - CONTINUED
CHAPTER 8: PART REPLACEMENT GUIDE

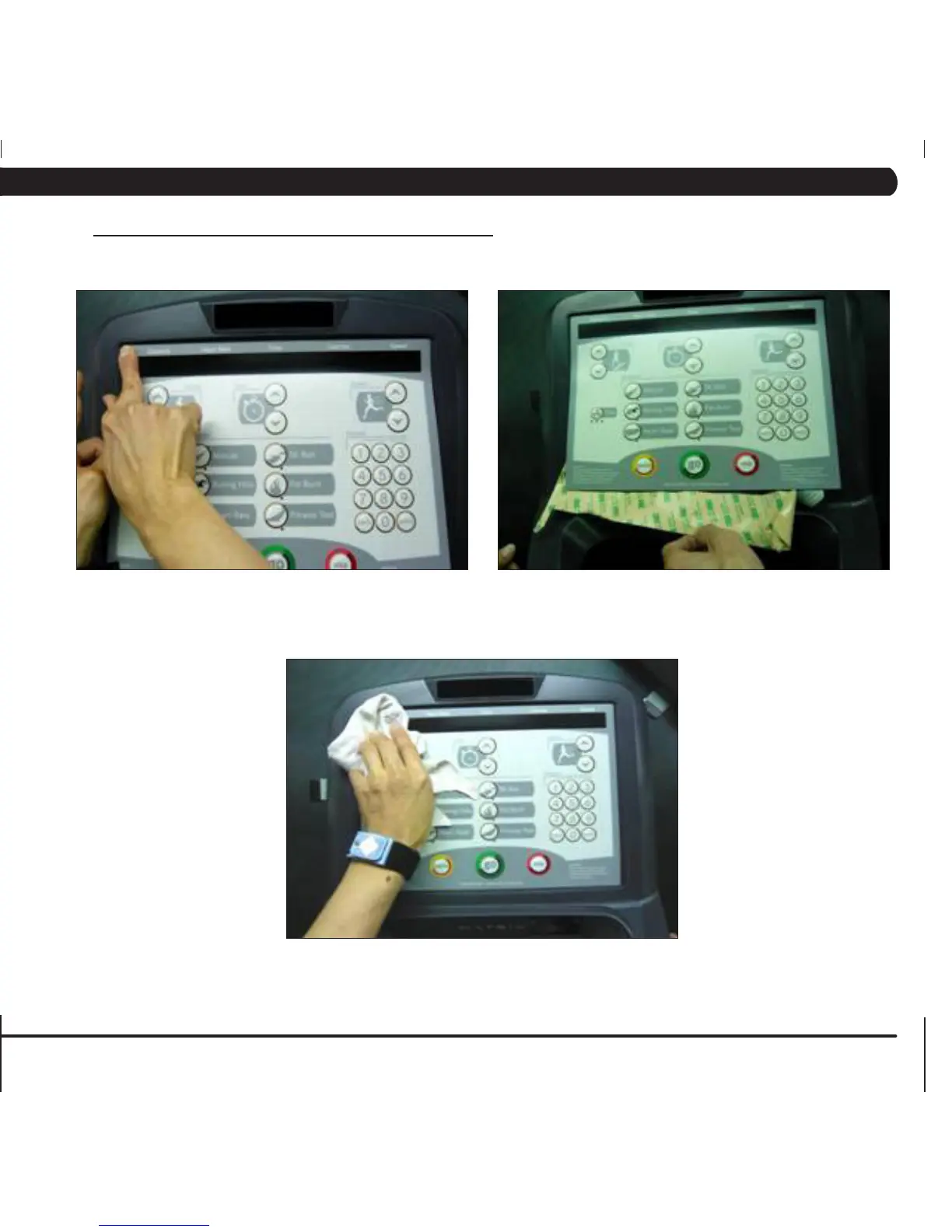

FIGURE H FIGURE I
FIGURE J
9) Press down on the corners of the overlay to keep it in place, then remove the protective film (Figure H & I).
10) Once the overlay is in the correct position, press down on the overlay with a cloth to adhere it to the console plastic (Figure J).
11) Use the same procedure to replace any additional faulty overlays. NOTE: Overlays can not be reused.
12) Test the Bike for function as outlined in Section 8.21.
