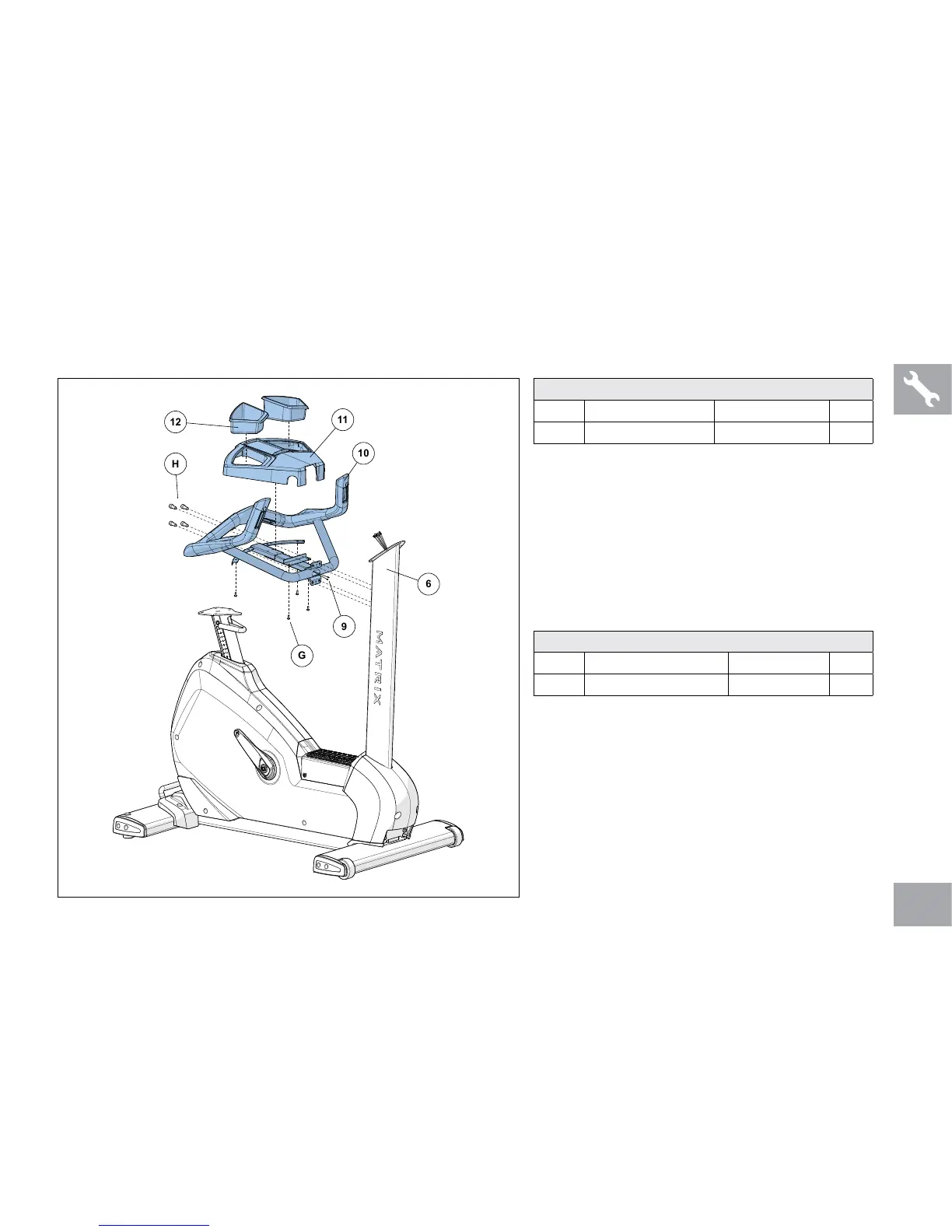

UPRIGHT ASSEMBLY STEP 4

A Open WHITE HARDWARE BAG.

Carefully pull the

PULSE GRIP CABLES (9)

through the

CONSOLE MAST (6)

using the twist

tie located inside the

CONSOLE MAST (6)

Attach the PULSE GRIPS HANDLEBARS (10) to

the CONSOLE MAST (6) using 4 BOLTS (H).

WHITE HARDWARE BAG

PART TYPE DESCRIPTION QTY

H SOCKET HEAD BOLT M8X20L 4

GREEN HARDWARE BAG

PART TYPE DESCRIPTION QTY

G PHILLIP HEAD BOLT M5X12L 4

A Open GREEN HARDWARE BAG.

B Attach the ACCESSORY TRAY (11) to the

PULSE GRIPS HANDLEBARS (10) using 4

BOLTS (G).

C Slide WATER BOTTLE POCKETS (12) into the

ACCESSORY TRAY (11).
