Matrix H5x User Manual

26
6
18
13
15
5
I
E
17
14
16

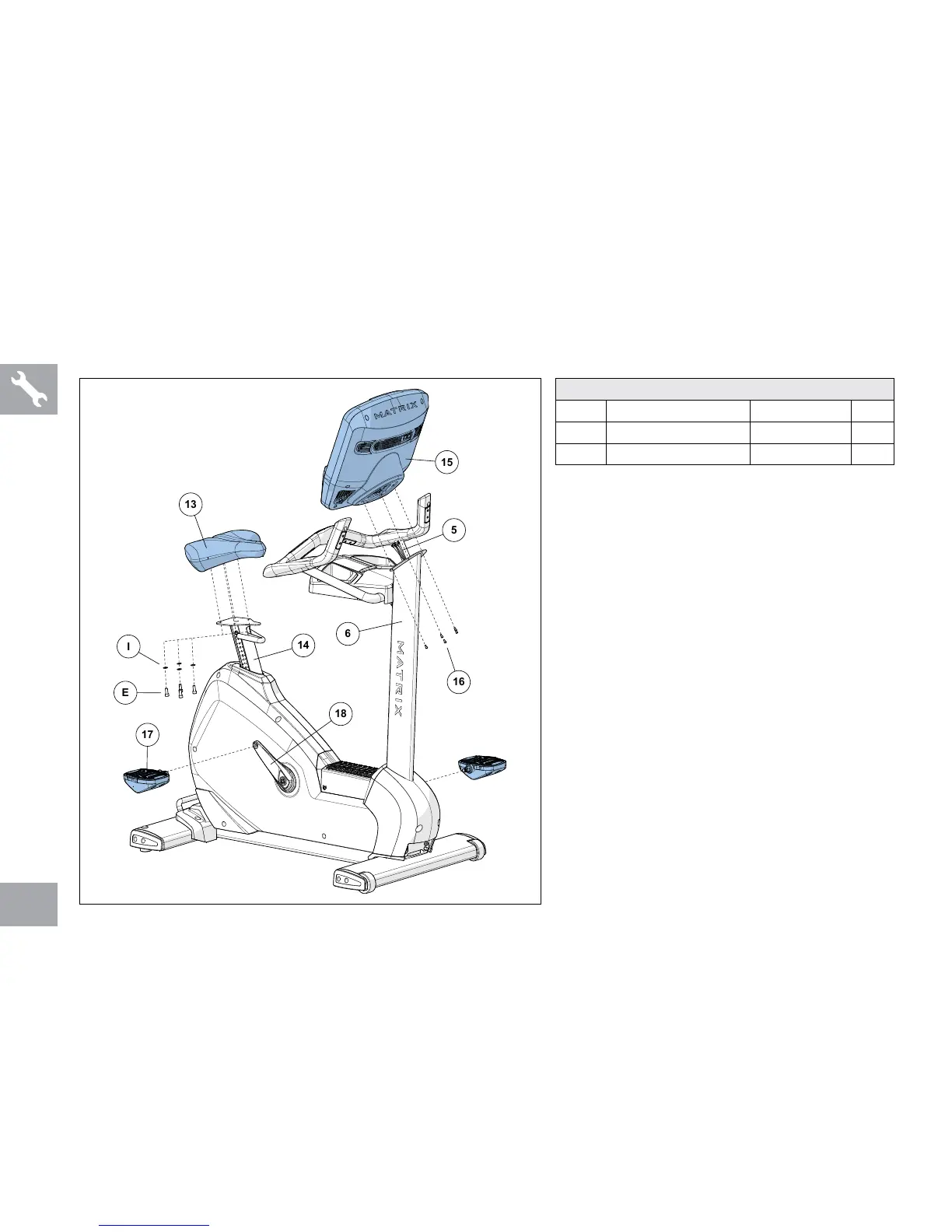

UPRIGHT ASSEMBLY STEP 5
A Open PURPLE HARDWARE BAG.
B Attach the SEAT (13) to the SEAT POST
(14) using 4 BOLTS (C) and 4 SPRING
WASHERS (I).
C Attach the CONSOLE CABLES (5) to the
CONSOLE (15).
D Attach the CONSOLE (15) to the
CONSOLE MAST (6) using 5
PRE-INSTALLED BOLTS (16).
E Attach PEDALS (17) to the CRANK (18)
with a 15mm/17mm flat wrench.
PURPLE HARDWARE BAG
PART TYPE DESCRIPTION QTY
E SOCKET HEAD BOLT M8X20L 4
I SPRING WASHER Φ8.2XΦ13.5X2.0T 4

Matrix H5x Specifications

General

Brand	Matrix
Model	H5x
Category	Exercise Bike
Language	English
