Matrix IC3 User Manual

Version 1.0 2013 IC-MXIC3B-01 Copyright by Indoorcycling Group GmbH 2013
|
www.indoorcycling.com ENG 24

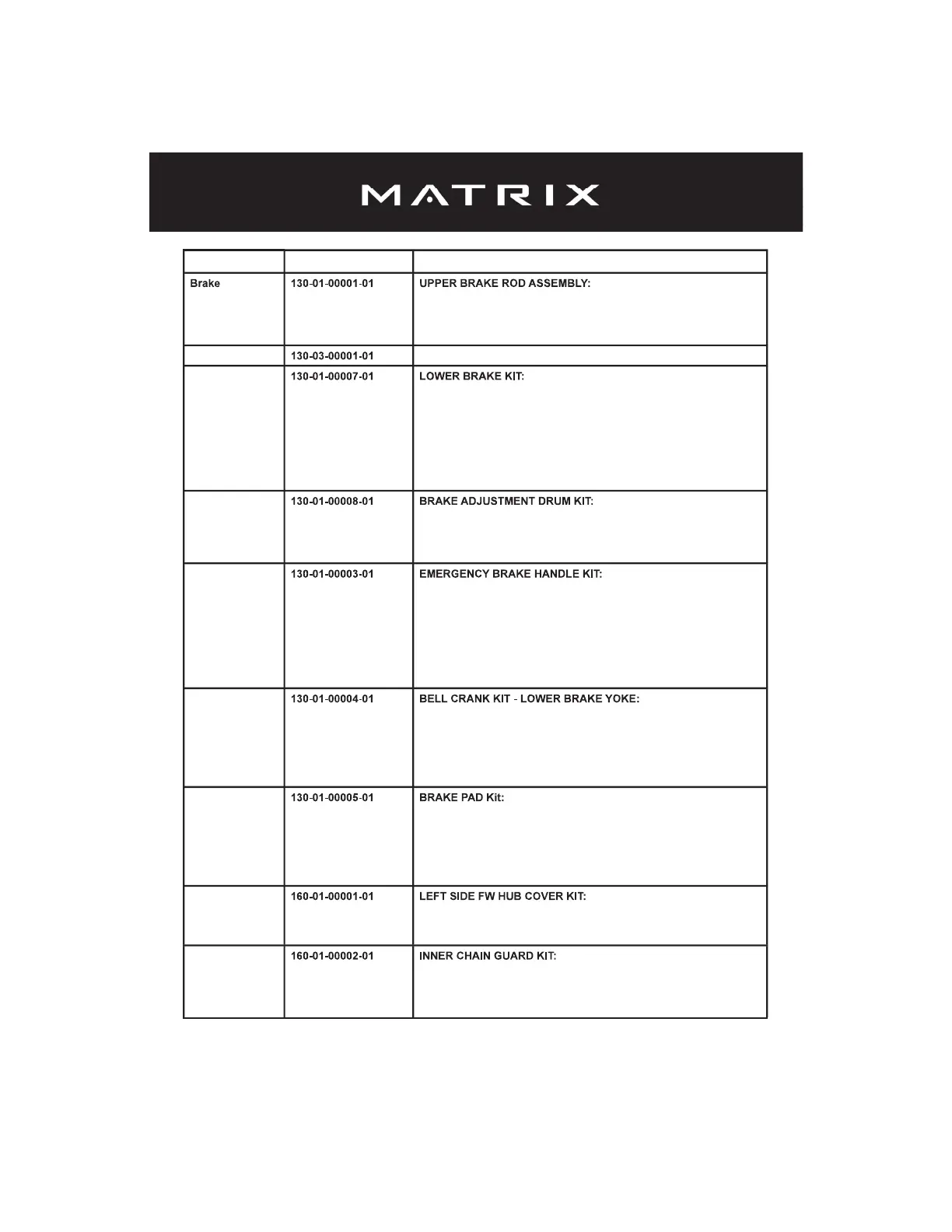

Spare Part No. Description
BRAKE ADJUSTMENT KNOB 1x
NUT, M10 x 1.5P, ss304 STAINLESS STEEL, DIN934/ ISO4032 1x
BRAKE ROD 1x
ADJUSTMENT BALL 1x
BRAKE ADJUSTMENT KNOB
BRAKE ROD FRAME FITTING 1x
WASHER, 22mm x 10mm x 2mm, ss304 STAINLESS STEEL, DIN125
/ ISO 7090 1x
COMPRESSION SPRING, 16mm x 30mm x 1.5mm, LOWER BRAKE
ROD 1x
WASHER, 30mm x 10.5mm x 2mm, ss 304 STAINLESS STEEL,
DIN9021 / ISO 7093 1x
ADJUSTMENT DRUM 1x
FLAT NUT, M10 x 0.75P, ss304 STAINLESS STEEL, DIN439/
ISO4035 2x
EMERGENCY Brake HANDLE 1x
SELF LOCKING NUT, M6 x 1.0P, ss304 STAINLESS STEEL,
DIN985/ ISO7040 1x
WASHER, 12mm x 6,4mm x 1,6mm, ss304 STAINLESS STEEL,
DIN125/ ISO7090 2x
WASHER, 12mm x 6,4mm x 1,6mm, NYLON, DIN125/ ISO7090 2x
PHILIPS HEAD MACHINE SCREW, M6 x 55 x 1.0P, ss304 STAIN-
LESS STEEL, DIN7985H/ ISO7045 1x
BELL CRANK 1x
SPACER, 6.1mm x 10.2mm x 10mm 1x
HEX SOCKET HEAD BOLT, M6 x20 x 1.0P, ss304 STAINLESS
STEEL, DIN912/ ISO4762 1x
SELF LOCKING NUT, M6 x 1.0P, #ss304 STAINLESS STEEL,
DIN985/ ISO7040 1x
SPACER, 6.1mm x 10.2mm x 10mm 1x
HEX SOCKET HEAD BOLT, M6 x20 x 1.0P, ss304 STAINLESS
STEEL, DIN912/ ISO4762 1x
SELF LOCKING NUT, M6 x 1.0P, #ss304 STAINLESS STEEL,
DIN985/ ISO7040 1x
BRAKE PAD ASSEMBLY 1x
Chain Guard
LEFT SIDE FW HUB COVER 1x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL, DIN912/
ISO4762 2x
„INNER CHAIN GUARD 1x
RUBBER GASKET INNER CHAIN GUARD 1x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL, DIN912/
ISO4762 5x“
