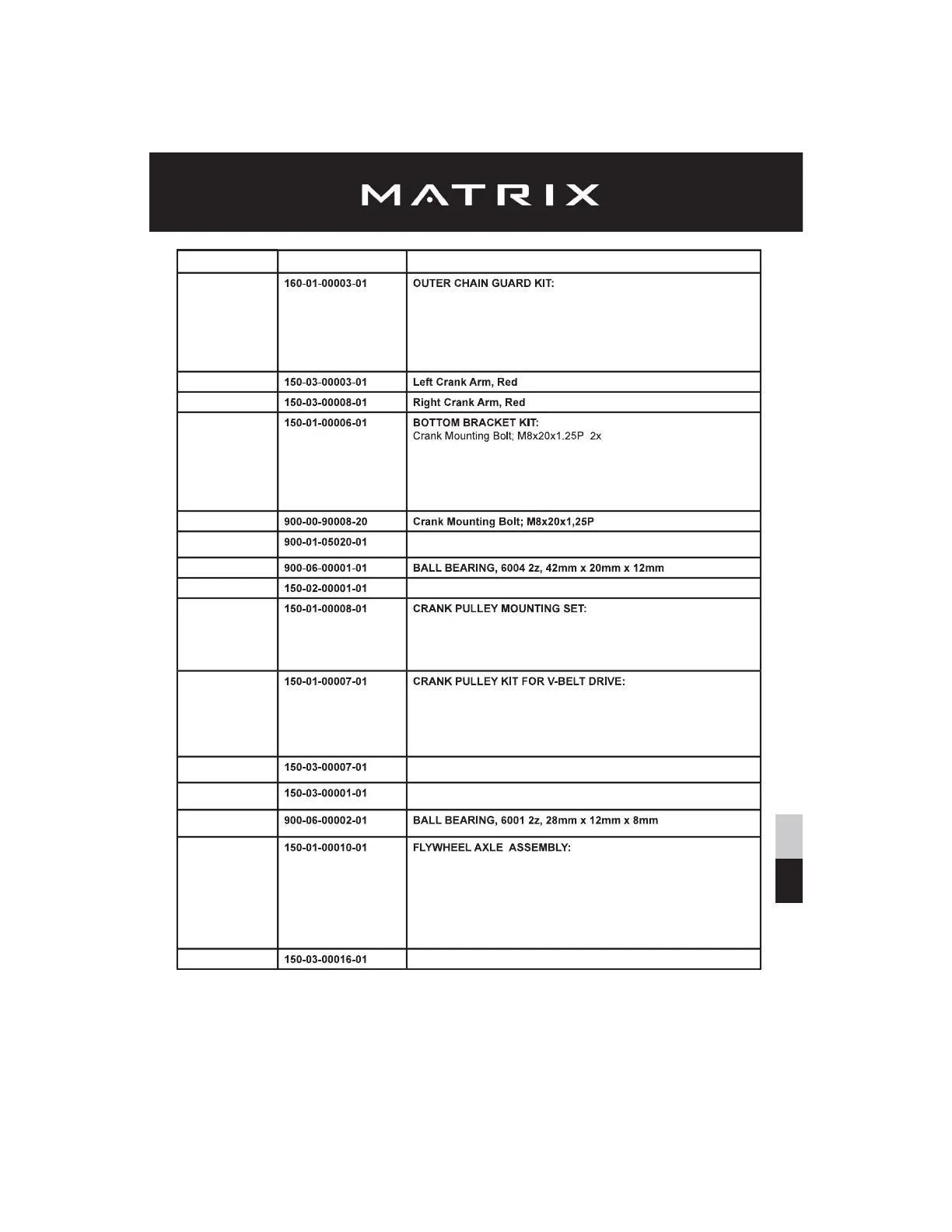

Spare Part No. Description

Chain Guard

RUBBER GASKET OUTER CHAIN GUARD 1x

OUTER CHAIN GUARD 1x

OUTER CHAIN GUARD DECAL 1x

OUTER CHAIN GUARD FRONT COVER 1x

ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL,

DIN912/ ISO4762 6x

Drive Gear

Rubber Cover For M20 Locking Nut 1x

LOCKING NUT, M20 x 1.0P, 8.9 Steel, DIN982/ISO10512 1x

BB BEARING DISTANCE SPACER, 24mm x 20mm x 12mm 1x

BALL BEARING, 6004 2z, 42mm x 20mm x 12mm 2x

BOTTOM BRACKET SPINDLE 1x

LOCKING NUT, M20 x 1.0P, 8.9 STEEL, DIN982/ISO10512

BOTTOM BRACKET SPINDLE

WASHER, 10.5mm x 20mm x 1.5mm, ss304 STAINLESS STEEL,

DIN 125 /ISO 7089 4x

BOTTON HEAD BOLT, HEX SOCKET, M10 x 20 x 1.5P,

ss304 Stainless Steel, DIN7346/ ISO738 4x

WASHER, 22mm x 10mm x 2.0mm, ss304 STAINLESS STEEL,

DIN125 / ISO 7089 4x

BUTTON HEAD BOLT, HEX SOCKET, M10 x 20 x 1.5P, ss304 STAIN-

LESS STEEL, DIN 7346 / ISO 7380 4x

PL4 CRANK PULLEY 1x

PL4 CRANK PULLEY

Poly V Belt PL4 1397

Flywheel

FLYWHEEL AXLE 1x

SELF LOCKING NUT, M12 x 1.0P, STEEL, DIN985/ ISO10511 2x

WASHER, 24mm x 13mm x 2.5mm, STEEL, DIN125 / ISO 7089 2x

SERRATED LOCK WASHER, 20.5mm x 12.5mm x 1.0mm, STEEL,

DIN6798 2x

FW AXLE DISTANCE SLEEVE, LEFT SIDE (39mm) 1x

FW AXLE DISTANCE SLEEVE, RIGHT SIDE (17mm) 1x

FLYWHEEL AXLE
