Matrix IC3 User Manual

Version 1.0 2013 IC-MXIC3B-01 Copyright by Indoorcycling Group GmbH 2013
|
www.indoorcycling.com ENG 28

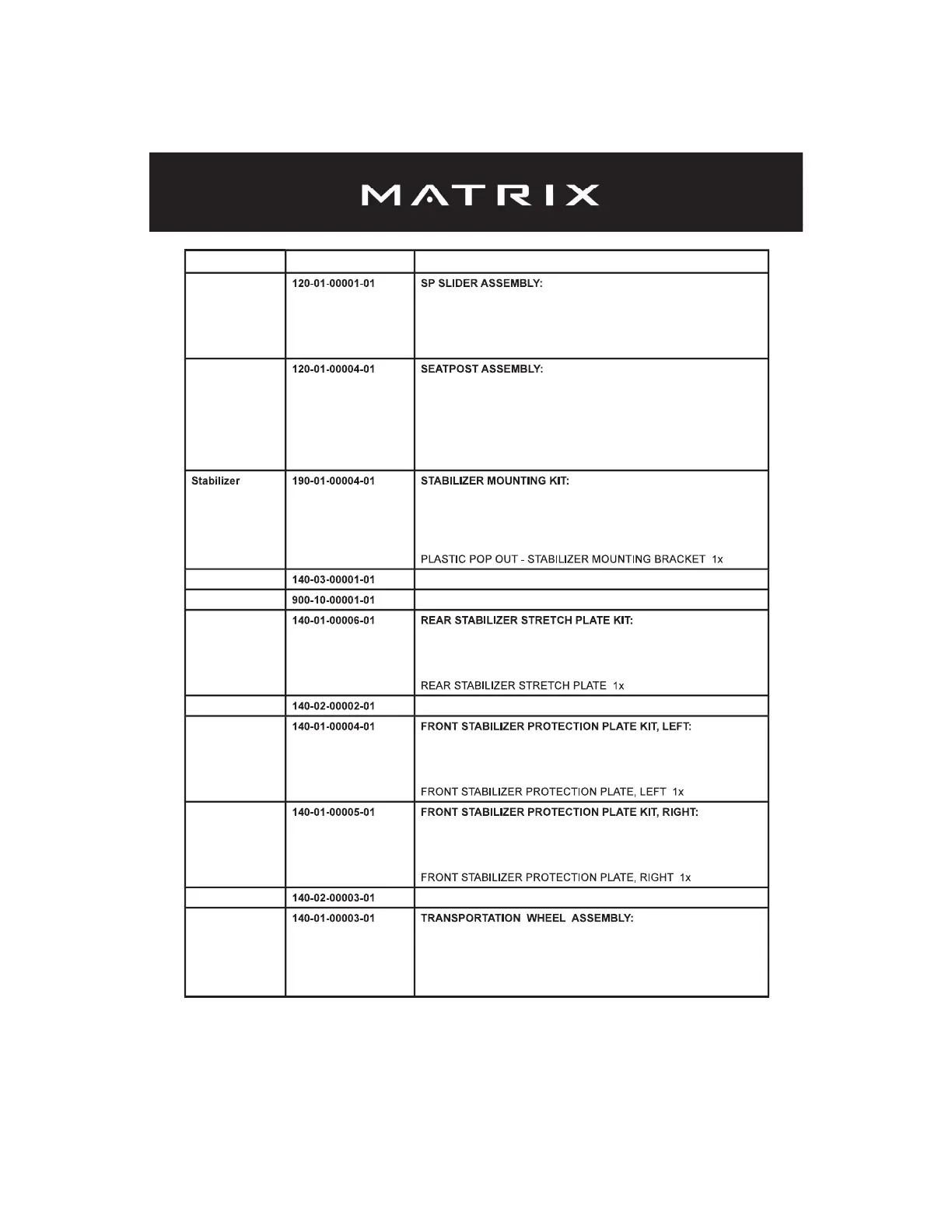

Spare Part No. Description
Seat Post
SP SLIDER WELDMENT 1x
ADJUSTMENT LEVER ASSEMBLY 1x
PLASTIC END CAP UPPER HB + SP SLIDER 2x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL, DIN912/
ISO4762 2x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL,
DIN912/ ISO4762 2x
WASHER, 5.3mm x 10mm x 1.0mm, ss304 STAINLESS STEEL,
DIN 125 / ISO 7090 2x
PLASTIC END CAP LOWER HB + SP SLIDER 2x
COUNTER SUNK HEX SOCKET, M5 x 10 x 0.8P, ss304 STAINLESS
STEEL, DIN7991/ ISO10642 2x
HEX HEAD BOLT M10 x 50 x 1.0P, ss304 STAINLESS STEEL,
DIN933 / ISO4017 1x
WASHER, 22mm x 10.5mm x 2.0mm, ss304 STAINLESS STEEL,
DIN125/ ISO7089 1x
DISTANCE SLEEVE, 11.9mm x 15.9mm x 38mm, blk oxide steel 1x
STABILIZER END CAP
LEVELLING FEET, RUBBER
WASHER, 12mm x 6.4mm x 1.6mm, BLK OXIDE STEEL, DIN125/
ISO7090 4x
HEX HEAD BOLT, M6 x 12 x 1.0P, BLK OXIDE STEEL, DIN933 /
ISO4017 4x
REAR STABILIZER WELDMENT
WASHER, 12mm x 6.4mm x 1.6mm, BLK OXIDE STEEL,
DIN125/ ISO7090 4x
HEX HEAD BOLT, M6 x 12 x 1.0P, BLK OXIDE STEEL,
DIN933 / ISO4017 4x
WASHER, 12mm x 6.4mm x 1.6mm, BLK OXIDE STEEL,
DIN125/ ISO7090 4x
HEX HEAD BOLT, M6 x 12 x 1.0P, BLK OXIDE STEEL,
DIN933 / ISO4017 4x
FRONT STABILIZER WELDMENT
BUTTON HEAD SLEEVE WITH INTERNAL THREAD, HEX SOCKET,
M8 x35 x 1.5P, ss304 STAINLESS STEEL 1x
BUTTON HEAD BOLT, HEX SOCKET, M8 x12 x 1.5P, ss304 STAIN-
LESS STEEL, ISO7380 1x
TRANSPORT WHEEL 1x

Matrix IC3 Specifications

General

Brand	Matrix
Model	IC3
Category	Exercise Bike
Language	English
