Matrix IC3 User Manual

Version 1.0 2013 IC-MXIC3B-01 Copyright by Indoorcycling Group GmbH 2013
|
www.indoorcycling.com ENG 27

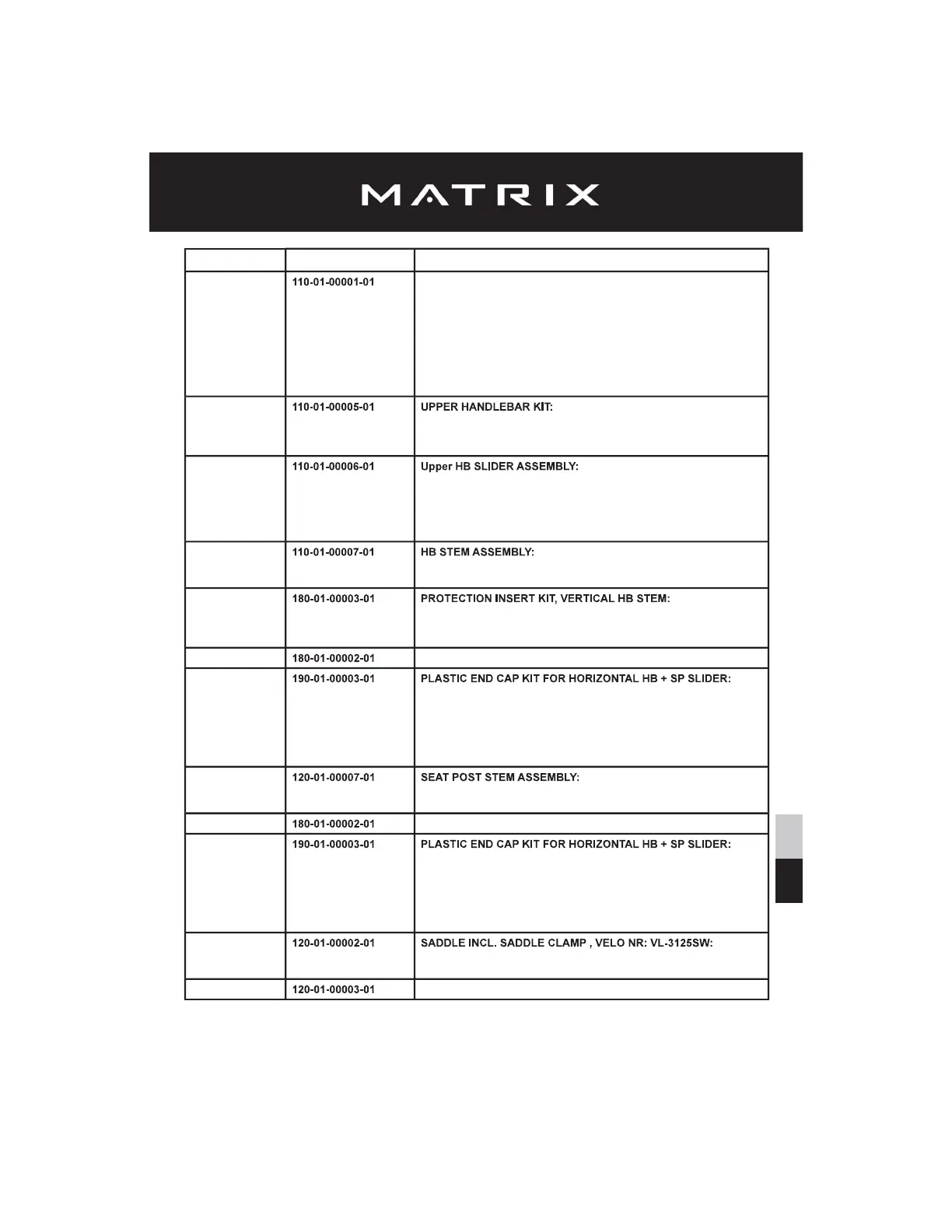

Spare Part No. Description
Handle Bar UPPER HANDLEBAR ASSEMBLY
UPPER HANDLEBAR WELDMENT 1x
COUNTER SUNK HEX SOCKET BOLT, M8 x 25 x 1.0P,
9.8 STEEL, DIN7991/ ISO10642 2x
ADJUSTMENT LEVER ASSEMBLY 1x
HB SLIDER WELDMENT 1x
PLASTIC END CAP UPPER HB + SB SLIDER 2x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL,
DIN912/ ISO4762 2x
UPPER HANDLEBAR WELDMENT 1x
COUNTER SUNK HEX SOCKET BOLT, M8 x 25 x 1.0P, 9.8 STEEL,
DIN7991/ ISO10642 2x
ADJUSTMENT LEVER ASSEMBLY 1x
HB SLIDER WELDMENT 1x
PLASTIC END CAP UPPER HB + SP SLIDER 2x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL, DIN912/
ISO4762 2x
Plastic Glider 2x
HB Stem Weldment 1x
PROTECTION INSERT, VERTICAL HB STEM 1x
COUNTER SUNK HEX SOCKET, M5 x 10 x 0.8P, ss304 STAINLESS
STEEL, DIN7991/ ISO10642 2x
ADJUSTMENT LEVER ASSEMBLY
PLASTIC END CAP UPPER HB + SP SLIDER 1x
WASHER, 5.3mm x 10mm x 1.0mm, ss304 STAINLESS STEEL,
DIN 125 / ISO 7090 1x
PLASTIC END CAP LOWER HB + SP SLIDER 1x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL,
DIN912/ ISO4762 2x
Seat Post
Plastic Glider 2x
SP Stem Weldment 1x
ADJUSTMENT LEVER ASSEMBLY
PLASTIC END CAP UPPER HB + SP SLIDER 1x
WASHER, 5.3mm x 10mm x 1.0mm, ss304 STAINLESS STEEL,
DIN 125 / ISO 7090 1x
PLASTIC END CAP LOWER HB + SP SLIDER 1x
ALLEN BOLT, M4 x10 x 0.7P, ss304 STAINLESS STEEL,
DIN912/ ISO4762 2x
SADDLE 1x
SADDLE CLAMP 1x
SADDLE CLAMP
