CHAPTER 3: Part Replacement Guide
3.09 LCB MOTOR REPLACEMENT (E50)
1) Remove the side cover and handlebar (see section 3.7 and section 3.5)-(Fig-1)
2) Remove LCB screws (Fig- 2 and Fig-3)
3) Install new LCB & insert connections. (Fig 2 and Fig 4)
4) Fasten handlebar and side cover.
5) Plug in AC power line.

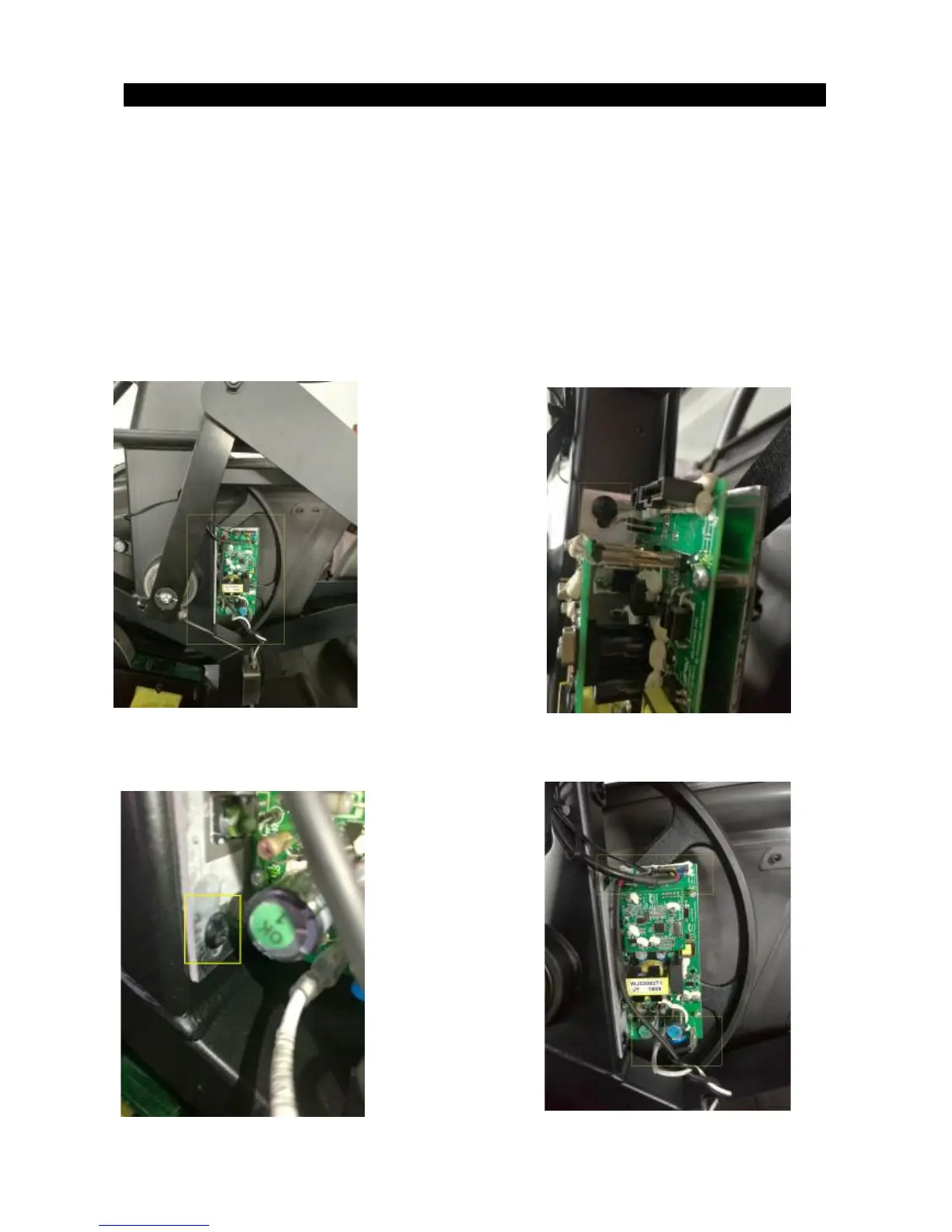

Fig-1 Fig-2
Fig-3 Fig -4
