CHAPTER 3: Part Replacement Guide
3.1 CONSOLE REPLACEMENT
1) For XIR/XER: Remove the 5 screws holding the console back cover to the frame. (Fig-1).
2) For all consoles: remove the 4 screws holding the console to the frame (E30). (Fig-2& Fig-4).
3) Disconnect the console cable and HR connections then remove the console. (Fig-3)

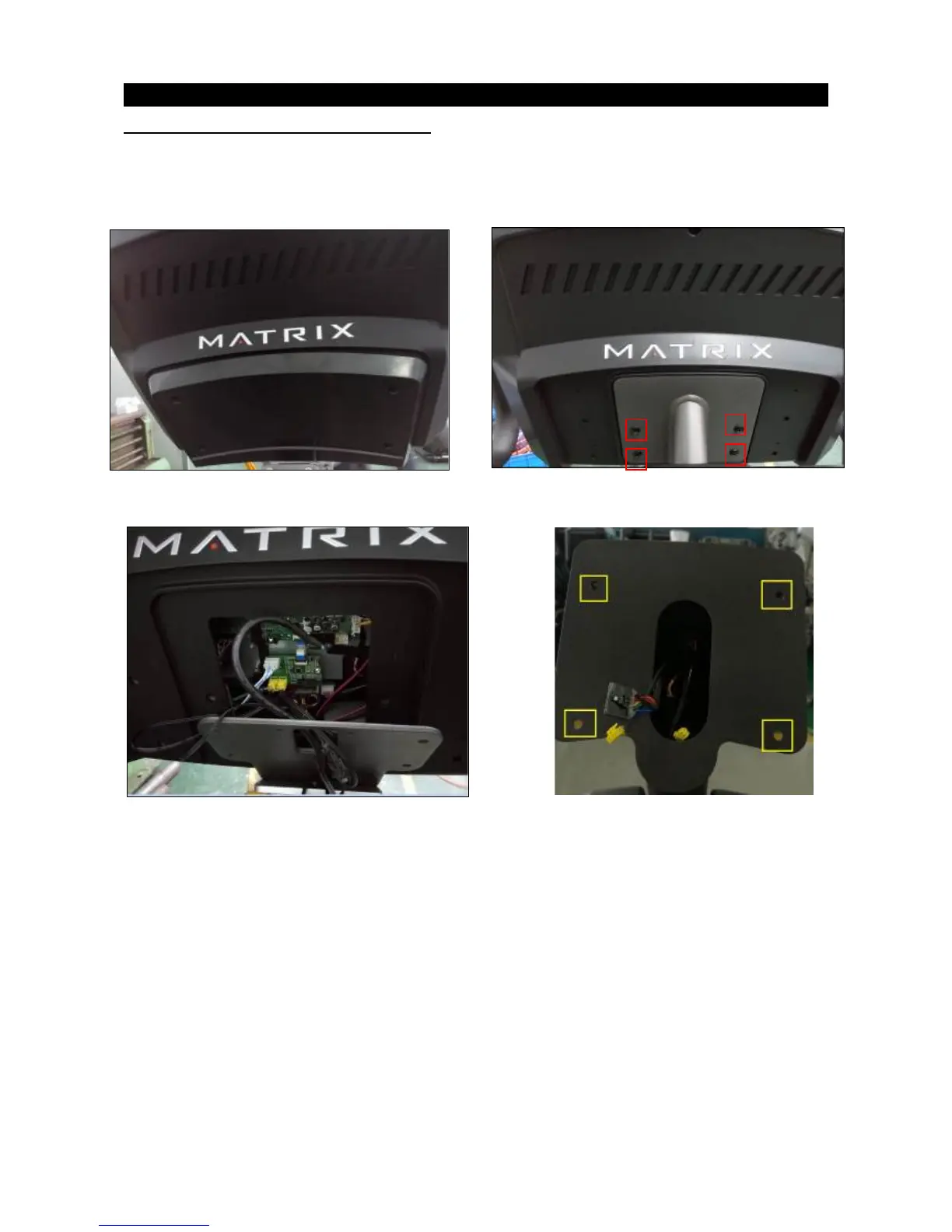

Fig-1 Fig-2
Fig-3 Fig-4
3) Reinstall the wire connections to the console.
4) Carefully push the wires into the console and mast until they are clear of the console mast connection.
Attach the console to the mast using the 4 screws.
