Matrix Retail E50 User Manual

7
(Fig-1)
CHAPTER 2: Troubleshooting

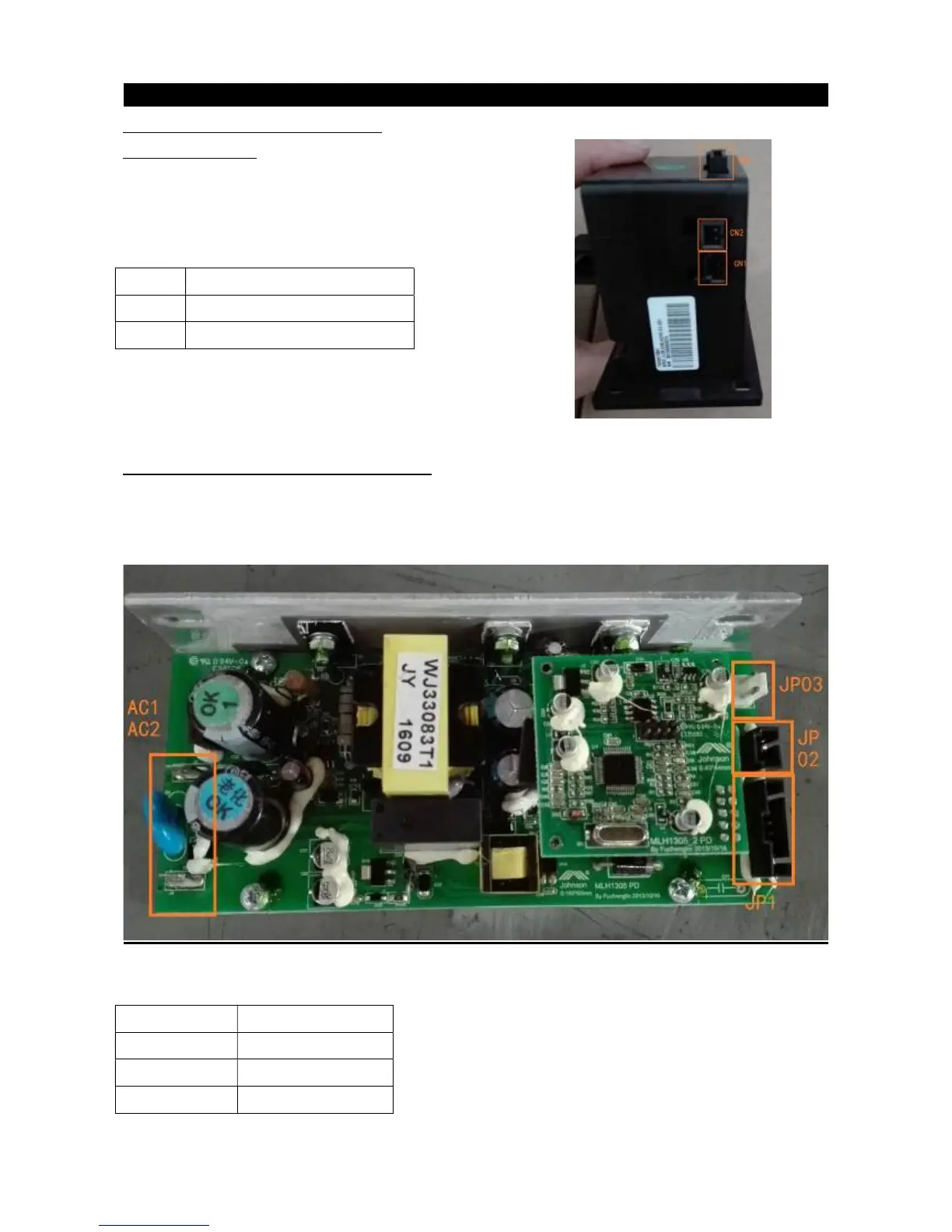

2.2. Board Connector Instruction:
2.2.1 ECB (E30):
ECB (Fig-1)
CN1 Speed sensor connection
CN2 Power adaptor connection
CN3 Console connection
2.2.2 Lower Control Board Connections
LCB (Fig-2)
Fig-2
AC1&AC2
JP1
JP02
JP03
AC power line input
LCB to console
Speed sensor
Resistance control
