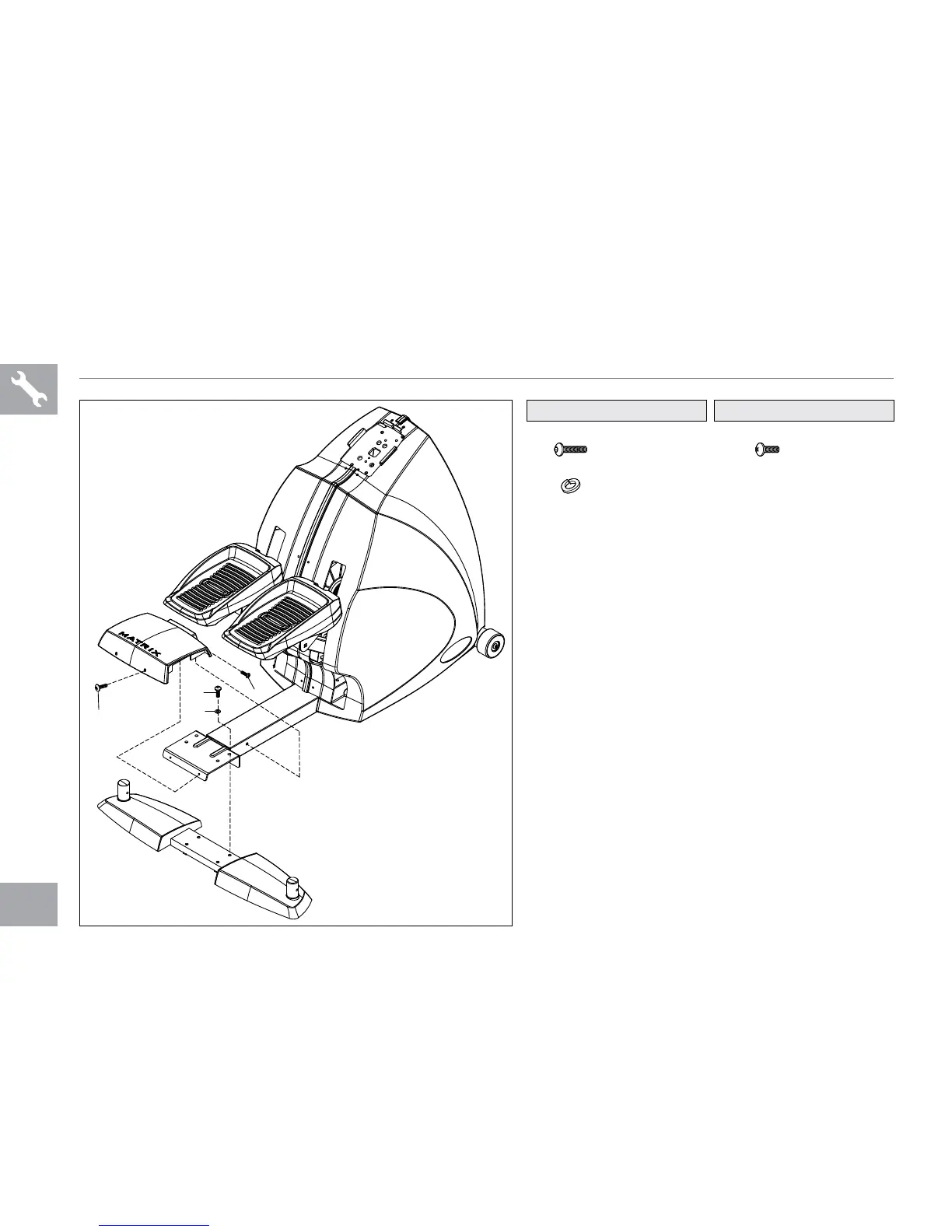

ASSEMBLY STEP 1
A Open BLACK AND RED HARDWARE BAGS.
B Attach the STABILIZER TUBE to the MAIN
FRAME using 2 BOLTS (A), 2 SPRING
WASHERS (B) and 2 ARC WASHERS (C) on
each side.
Z07 4 Z09
BUTTON HEAD BOLT
(M5x15L)
4
BUTTON HEAD BOLT
(M8x40L)
Z02 LOCK WASHER 4
BLACK HARDWARE BAG :
Z09
Z09
Z02
Z07
RED HARDWARE BAG :
