Matrix S7xi - Page 14

14

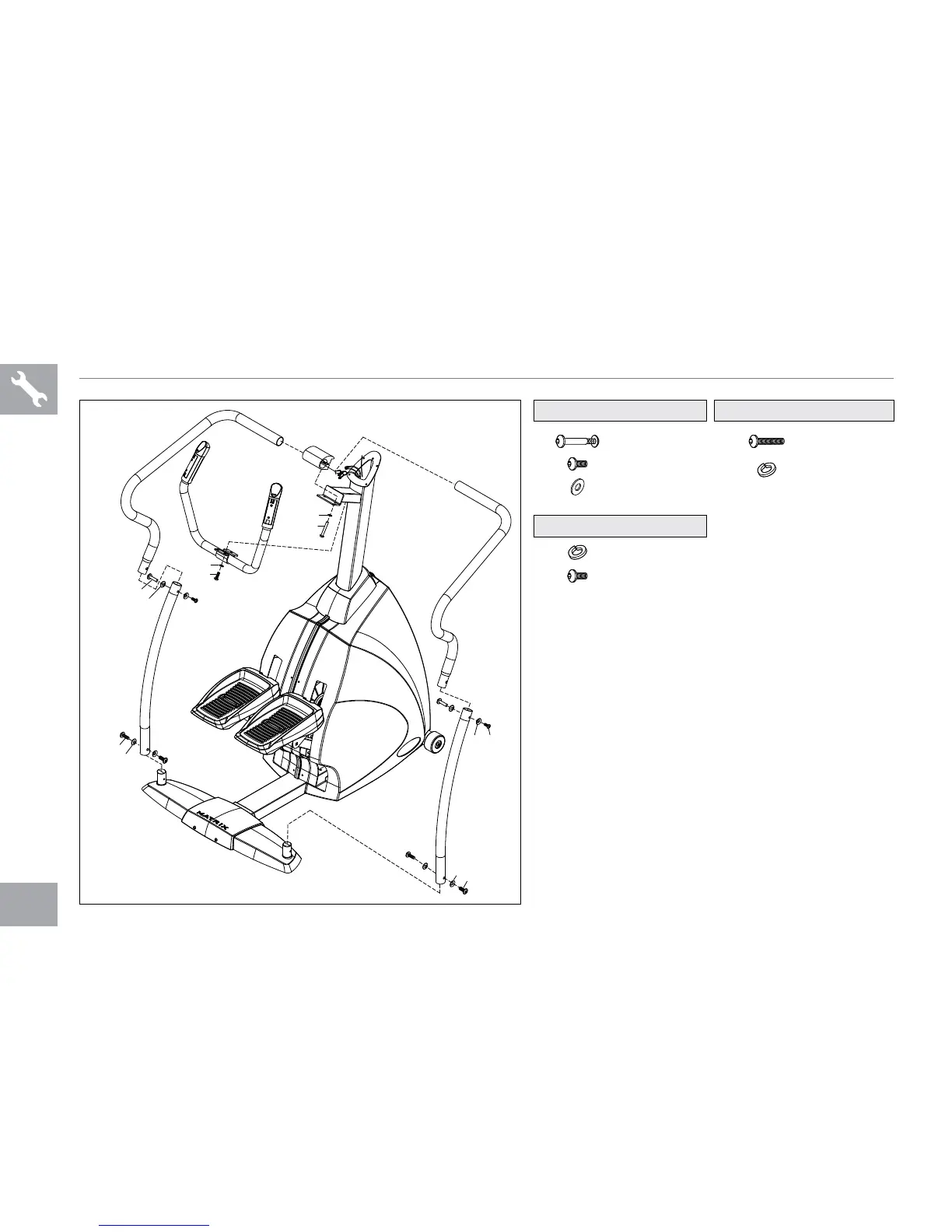

ASSEMBLY STEP 3
A Open ORANGE, YELLOW AND GREEN
HARDWARE BAGS.
B Attach the GUIDE RAIL SET to the MAIN
FRAME using 4 BOLTS (F), 4 SPRING
WASHERS (E) and 4 FLAT WASHERS (D).
C Attach the GUIDE RAIL SET to the INCLINE
BRACKET using 4 BOLTS (G), 4 FLAT
WASHERS (H), 4 SPRING WASHERS (I) and
4 NUTS (J).
D S3X MODELS: Skip page 23 and continue on
page 24.
6
Z04 x 3
Z05 x 3
Z03
Z06
Z05 x 4
Z03
Z06
Z05
Z06
Z06
Z10
Z02
Z06
ARC WASHER 8
Z03
Z05
BUTTON HEAD BOLT
(M8x16L)
2
4
SCREW SET Z10 BUTTON HEAD BOLT
(M8x45L)
2
Z02 LOCK WASHER 3
Z04
Z05
BUTTON HEAD BOLT
(M8x16L)
3
3
LOCK WASHER
ORANGE HARDWARE BAG: YELLOW HARDWARE BAG:
GREEN HARDWARE BAG:
