Matrix T3xe - Basic Operation

9
N71
N59
N57
P07
W31
Z71
P30
Z20
Z01
Z20
J
5 6
Black Hardware Bag
Description Qty
J Bolt 4
T3xh
T3x
T1x
ALL
MODELS
ASSEMBLY COMPLETE!

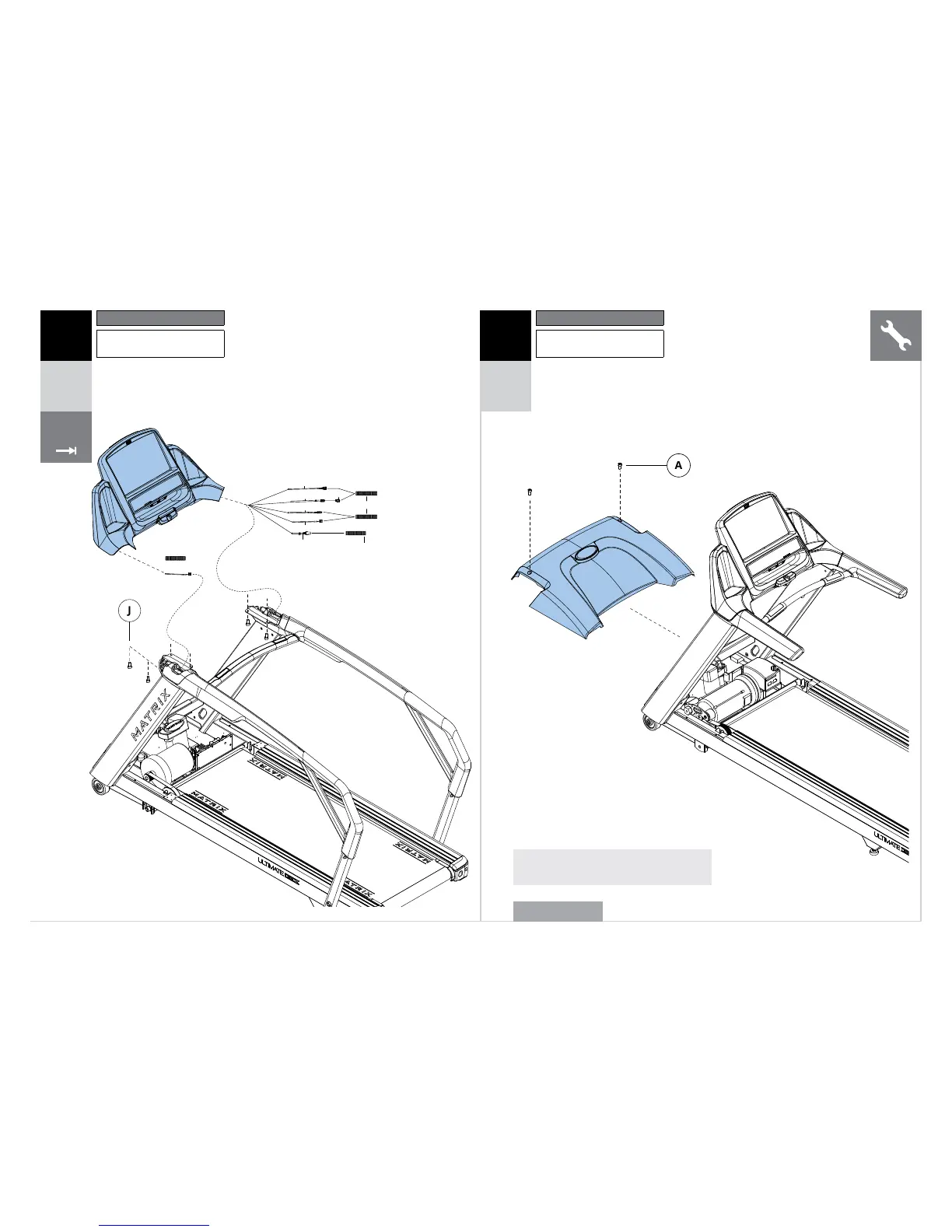

Be sure to route the console cables down the console mast
and connect the contact HR wires. Route wires through
exible cable housing (Z01 & Z20). Make all appropriate
wire connections within the motor compartment.
Pre-Installed Hardware
Description Qty
A Bolt 2
A
T3x shown
