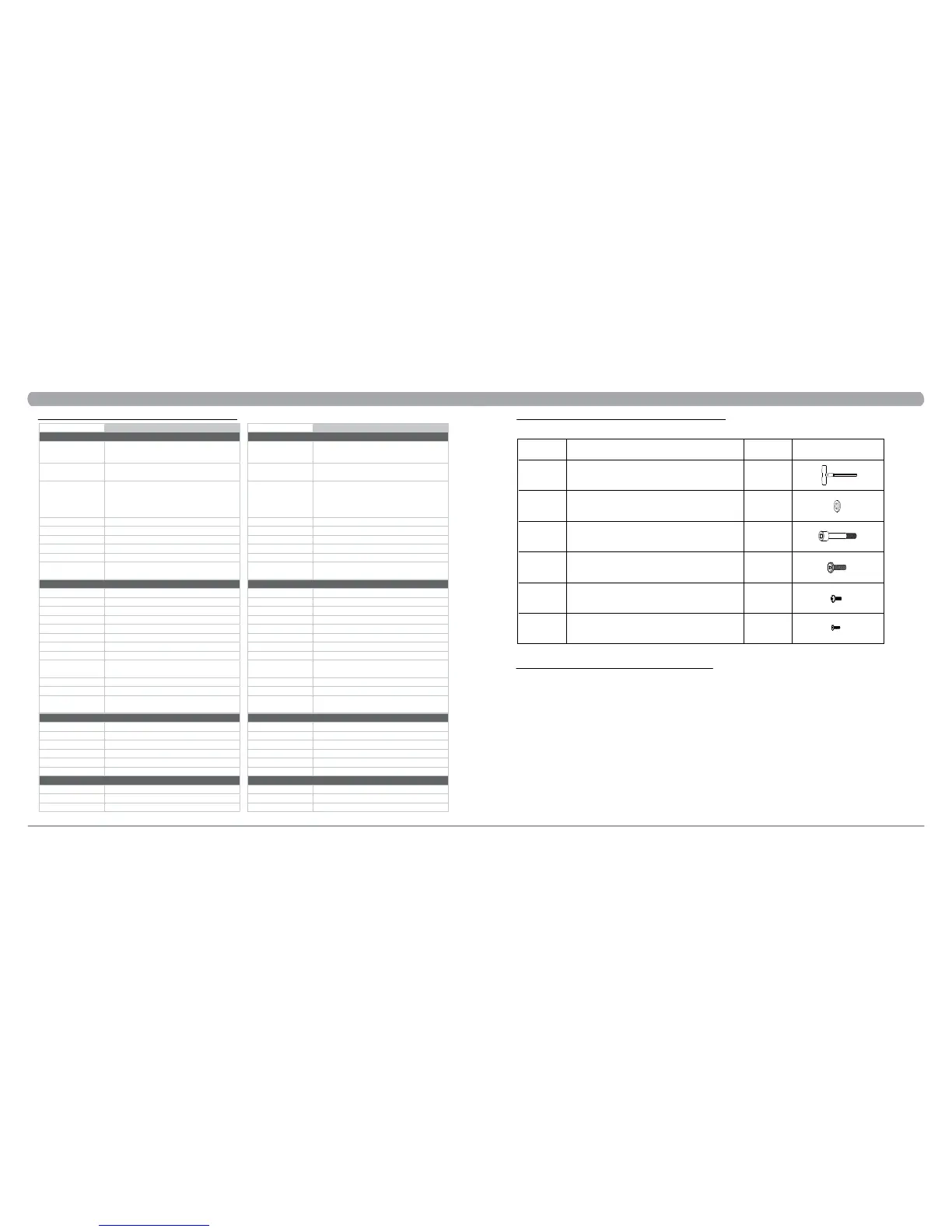

CHAPTER 5: t50x, t50x-u Treadmill specifications, parts, and assembly Guides
5.1 T50x, T50x-U MODEL SPECIFICATIONS
* Product specifications subject to change without notice.
CHAPTER 5: t50x, t50x-u Treadmill specifications, parts, and assembly Guides
5.2 T50x, T50x-U MODEL REqUIRED FASTENERS & ASSEMBLEY TOOLS
FASTENERS & ASSEMBLY TOOLS
Model Name T50x
Console
Display type
Workout Profile Window – 7” blue backlit graphic LCD display
Instruction Center – 14 – red dot-matrix LEDs display
Informational Display – 3 numeric 7-segment display
Display feedback
Time, Speed, Distance, Calories, Incline, Level, Heart Rate, METs,
Profile
Workouts
Manual, Interval + (Hill Interval, Random Hill),
Multi FX + (Brave Hill, Lakeside, Forest, Desert, Plateau),
Goal + (Time Goal, Distance Goal, Calories Goal),
Heart Rate + (Target HR, Weight Loss),
Fit Trainer + (Fit Test, Cooper Test),
Warm Up
On-the-fly program change Yes
Telemetric HR Receiver Yes
Contact HR sensors Yes
Cushion system
Ultimate Deck™ cushioning system
Safety stop Emergency button with lanyard clip
Language options
English, Italian, German, Spanish, French, Dutch, Portuguese,
Japanese
Tech Specs
Drive motor 4.2 HP AC motor
Motor control system Club Treadmill AC drive
Speed range 0.8 – 20 km/h / 0.5 – 12 mph
Incline range 0 – 15%
Deck type 1” hard-wax reversible deck
Belt area 51 × 152 cm / 20" × 60"
Running type 2-ply commercial belt
Rollers 7.6 cm / 3” Diameter, precision-crowned steel, front and back
Side handrails
56 cm (22”) long, cantilevered, integrated Speed and
Incline Control
Dimensions (LxWxH) 216 × 86 × 140 cm / 84” × 34” × 55”
Product weight 165 kg / 365 lbs
Maximum user weight
220 / 240 voltage version : 182 kg / 400 lbs
200 voltage version : 159 kg / 350 lbs
Special Features
Integrated accessory tray Yes
Integrated reading rack Yes
Maintenance lamp Yes
Swift Controls™ panel Yes
HR indicator light Yes
Speed leading light Yes
Entertainment Solutions
FITCONNEXION™ ready
Yes
Networking capabilities CSAFE ready
Number keys Yes
Model Name T50x-U
Console
Display type
Workout Profile Window – 7” blue backlit graphic LCD display
Instruction Center – 14 – red dot-matrix LEDs display
Informational Display – 3 numeric 7-segment display
Display feedback
Time, Speed, Distance, Calories, Incline, Level, Heart Rate, METs,
Profile
Workouts
Manual, Interval + (Hill Interval, Random Hill),
Multi FX + (Brave Hill, Lakeside, Forest, Desert, Plateau),
Goal + (Time Goal, Distance Goal, Calories Goal),
Heart Rate + (Target HR, Weight Loss),
Fit Trainer + (Fit Test, Cooper Test),
Warm Up
On-the-fly program change Yes
Telemetric HR Receiver Yes
Contact HR sensors Yes
Cushion system
Ultimate Deck™ cushioning system
Safety stop Emergency button with lanyard clip
Language options
English, Italian, German, Spanish, French, Dutch, Portuguese,
Japanese
Tech Specs
Drive motor 4.2 HP AC motor
Motor control system Club Treadmill AC drive
Speed range 0.8 – 20 km/h / 0.5 – 12 mph
Incline range 0 – 15%
Deck type 1” hard-wax reversible deck
Belt area 51 × 152 cm / 20" × 60"
Running type 2-ply commercial belt
Rollers 7.6 cm / 3” Diameter, precision-crowned steel, front and back
Side handrails
56 cm (22”) long, cantilevered, integrated Speed and
Incline Control
Dimensions (LxWxH) 216 × 86 × 140 cm / 84” × 34” × 55”
Product weight 165 kg / 365 lbs
Maximum user weight
220 / 240 voltage version : 182 kg / 400 lbs
200 voltage version : 159 kg / 350 lbs
Special Features
Integrated accessory tray Yes
Integrated reading rack Yes
Maintenance lamp Yes
Swift Controls™ panel Yes
HR indicator light Yes
Speed leading light Yes
Entertainment Solutions
FITCONNEXION™ ready
Yes
Networking capabilities CSAFE ready
Number keys No
SOCKET HEAD SCREW (LOW HEAD)
CROSS-HEAD BUTTON SCREW
PARTS NO. DESCRIPTION QUANTITY SKETCH
1
8
8
4
2
4
(M8 x 1.25P x 15L)
(M5 x 0.8P x 12L)
SOCKET HEAD CAP SCREW
(M3 x 0.5P x 15L)
(ULTRA LOW HEAD)
Z05
Z50
Z51
Z52
Z53
Z54
8mm T-SHAPED WRENCH
WASHER
SOCKET HEAD SCREW (M10 x 1.5P x 25L)
ASSEMBLY INSTRUCTIONS
Please make sure that the power plug is not plugged into the wall outlet while completing the following procedure. To ensure correct assembly
of the T50X and T5OX-U, carefully read and follow these steps:
ATTENTION: After installation is completed, the treadmill will need to be calibrated by using the AUTO-CHECK function. If this is
not done, the treadmill’s speed and incline values may be incorrect and damage the treadmill. Do not stand on the belt when performing the
AUTO-CHECK function.
