CHAPTE 2: Troubleshooting
2.1 ELECTRICAL DIAGRAM

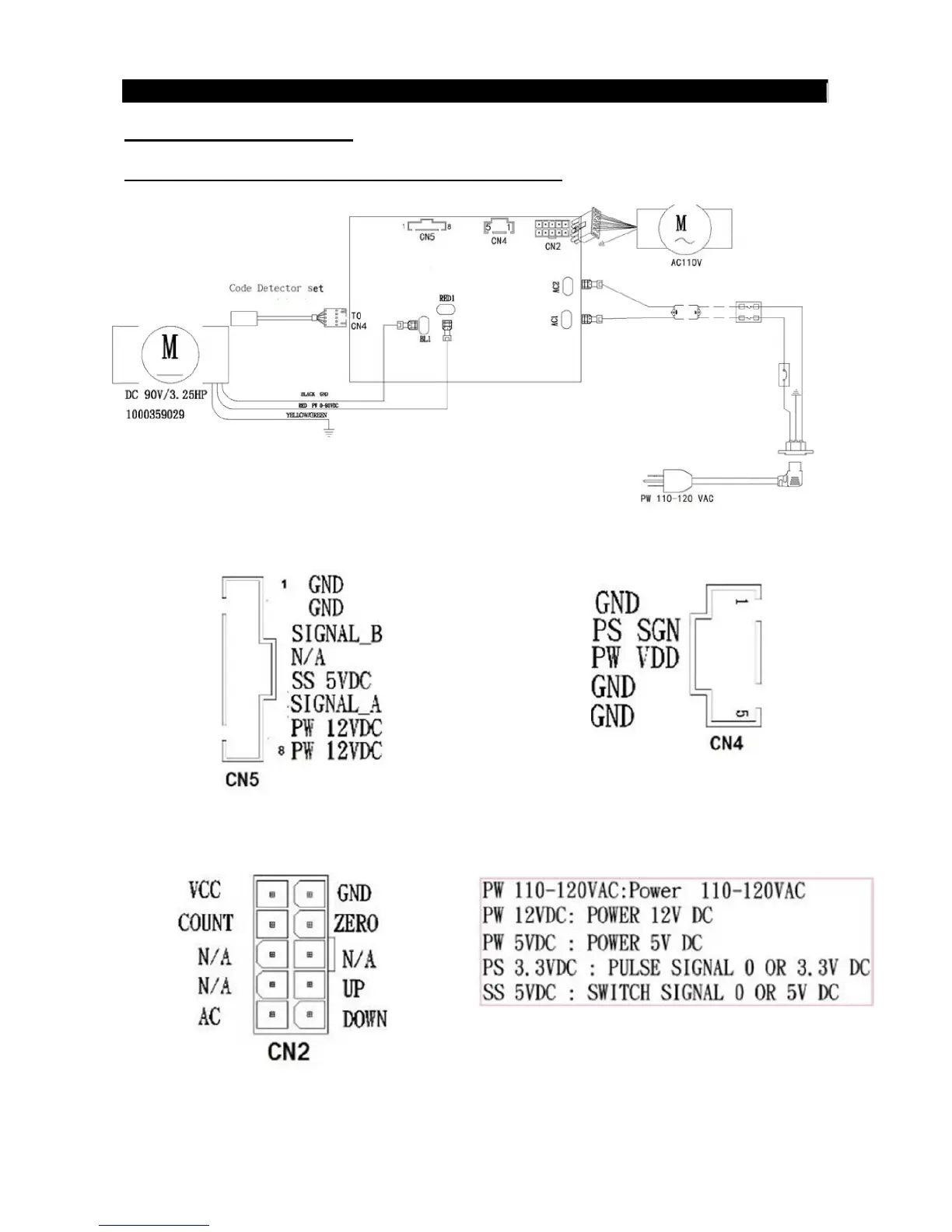

1. MCB ELECTRIC AL DIAGRAM---TF30/T30/TF50/T50
Fig-1 The MCB TO CONSOLE PIN LAYOUT Fig- 2 The MCB TO SPEED SENSOR P IN LAYOUT
Fig-3 The MCB TO INCLINE MOTOR THE PIN VOLTAGE INFORMATION
PIN LAYOUT
