Matrix T7XE-03 User Manual

67

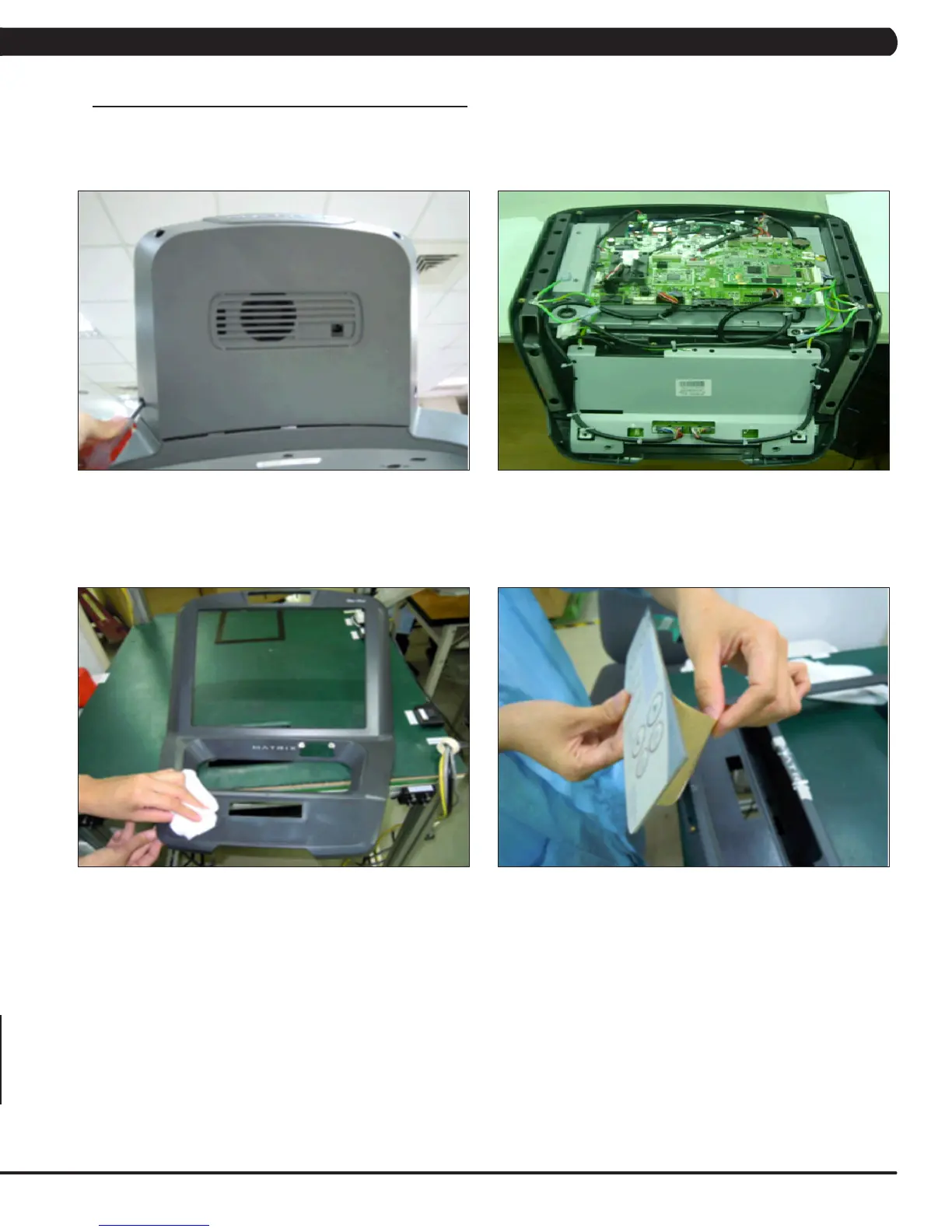

9.19 OVERLAY / KEYPAD REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.12.
3) Remove the back cover of the console (Figure A).
4) Unplug and remove the faulty overlay / keypad (Figure B).
5) Clean the area with alcohol to remove any left over adhesive (Figure C).
6) Peel part of the protective film from the new overlay / keypad (Figure D).
FIGURE D
FIGURE B
FIGURE C
FIGURE A
CHAPTER 9: PART REPLACEMENT GUIDE
