10.3 ASSEMBLY INSTRUCTIONS - CONTINUED

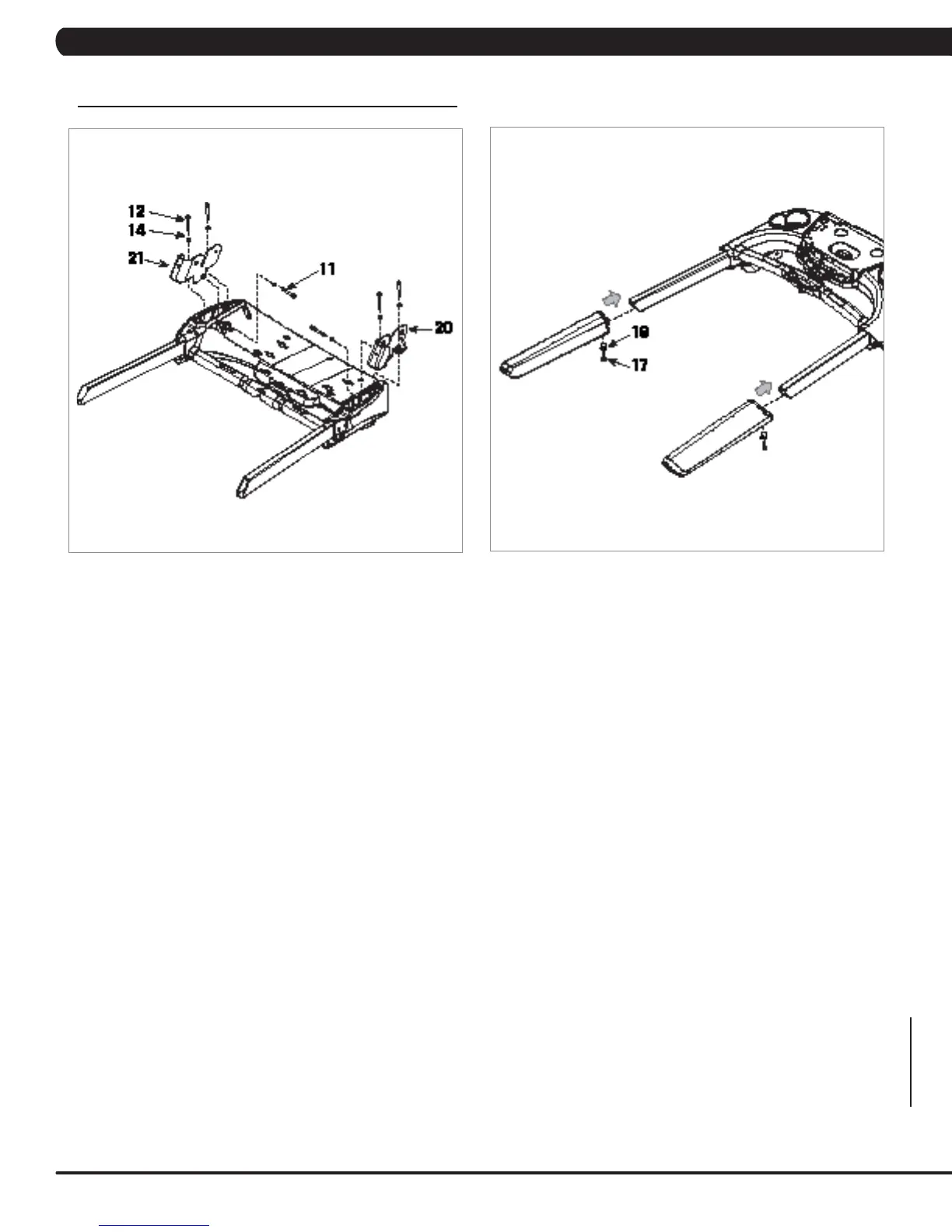

Open White Assembly Bag. Assemble the left and right bracket
(items 20 and 21) to the console base using item 12 socket head
cap screw, item 14 flat washer and item 11 socket head cap screw.
Assembly Tip: It is much easier to accomplish this task if the
console base is left inside its shipping container.
Open Blue Assembly Bag. Slide the urethane arms over the steel
tubes on the console base. Fasten the urethane arms to the steel
tubes using item 17 socket head cap screw and item 19 spacer.
STEP 3
STEP 4
