74

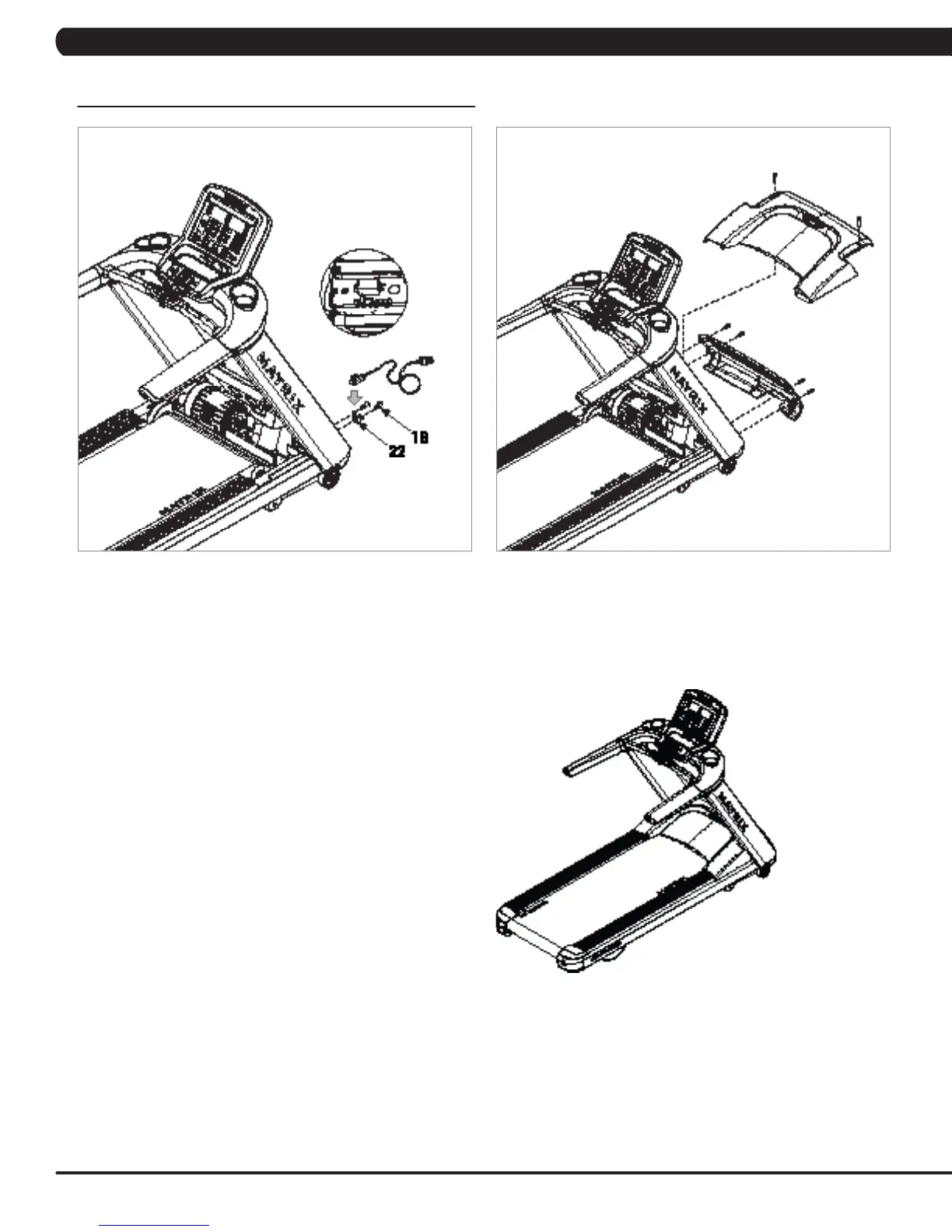

10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
Open Green Assembly Bag. Install the power cord and assemble
item 18 power cord holder with item 22 button head screw. If your
hardware pack is missing item 22, check to see if the screws are
already assembled on the treadmill.
Replace the motor cover(s) and power the treadmill on. The power
button is located next to the power cord inlet.
ASSEMBLY COMPLETE
Assembly is complete, the running belt should be adjusted as
needed and the auto calibration sequence must now be run as
outlined in Sections 3.5 and 3.6 Also the treadmill should be
leveled and the console and platform serial numbers should be
entered into the console as outlined in Section 10.4 and 10.5.
STEP 7 STEP 8
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
