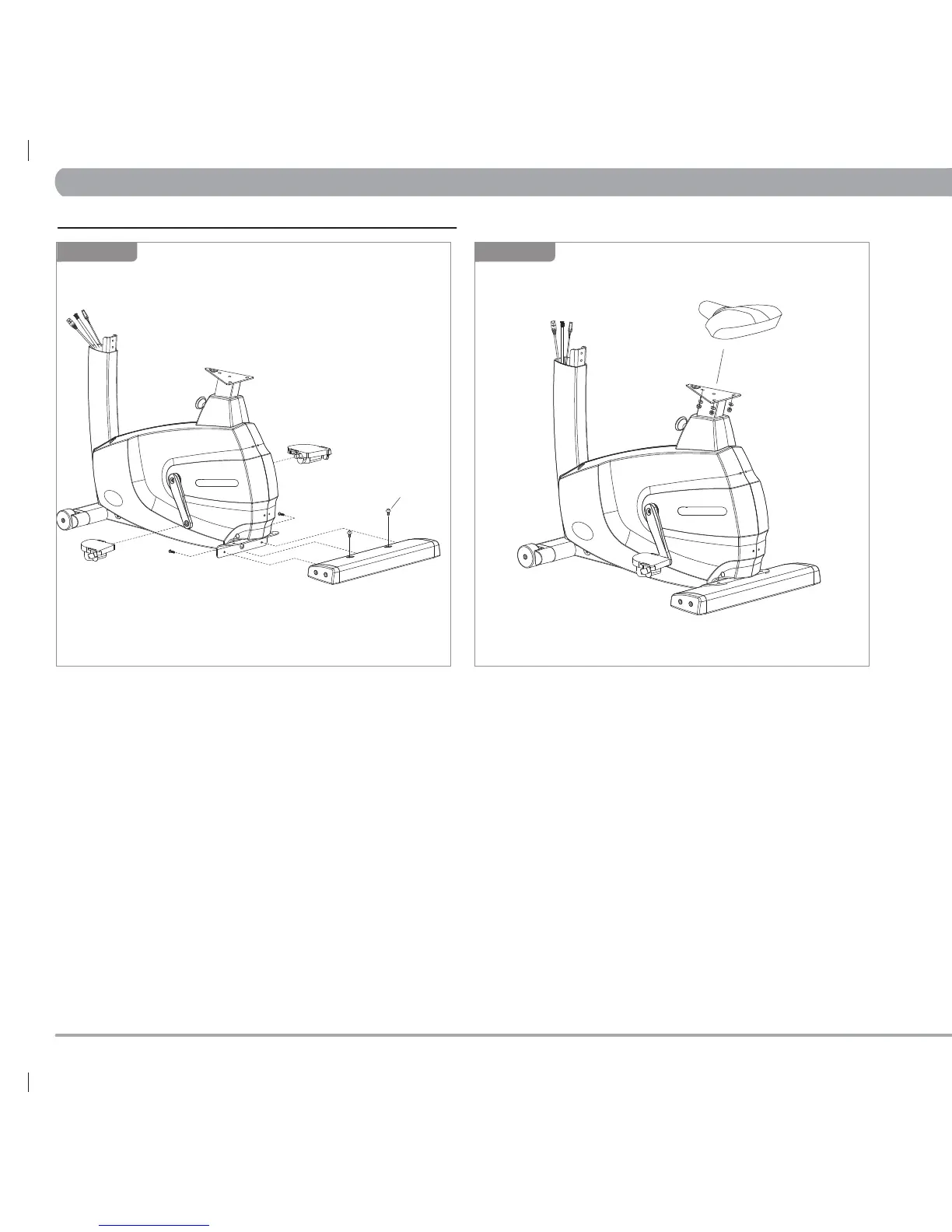

4.3 ASSEMBLY STEPS U1x
REAR FOOT
1) Install the rear foot in position at the rear of the bike with the mating
holes in the frame bracket. Insert the four bolts (Z01) through the frame
bracket and rear foot. Using the #6 Allen Wrench (Z31) tighten the
screws completely.
PEDALS
1) Install the pedals on the pedal cranks using the Open Wrench (Z32). The
Matrix logo of the pedal strap must point upward.
NOTE: Be careful to align the threads correctly to avoid damage. A little
grease on the threads should help the pedals to screw in easily and cor-
rectly. Turn the left pedal spindle counterclockwise when threading into
the crank arm, and turn the right pedal
Z01
STEP 1
CHAPTER 4: Bike parts and assembly Guides
1) Remove the nuts from the bottom of the seat. Attach the seat to the seat
post with the nuts you just removed. Tighten them with the
Open Wrench (Z32).
