Matrix U30

13
14
4
15
G
5 6
U30
U50

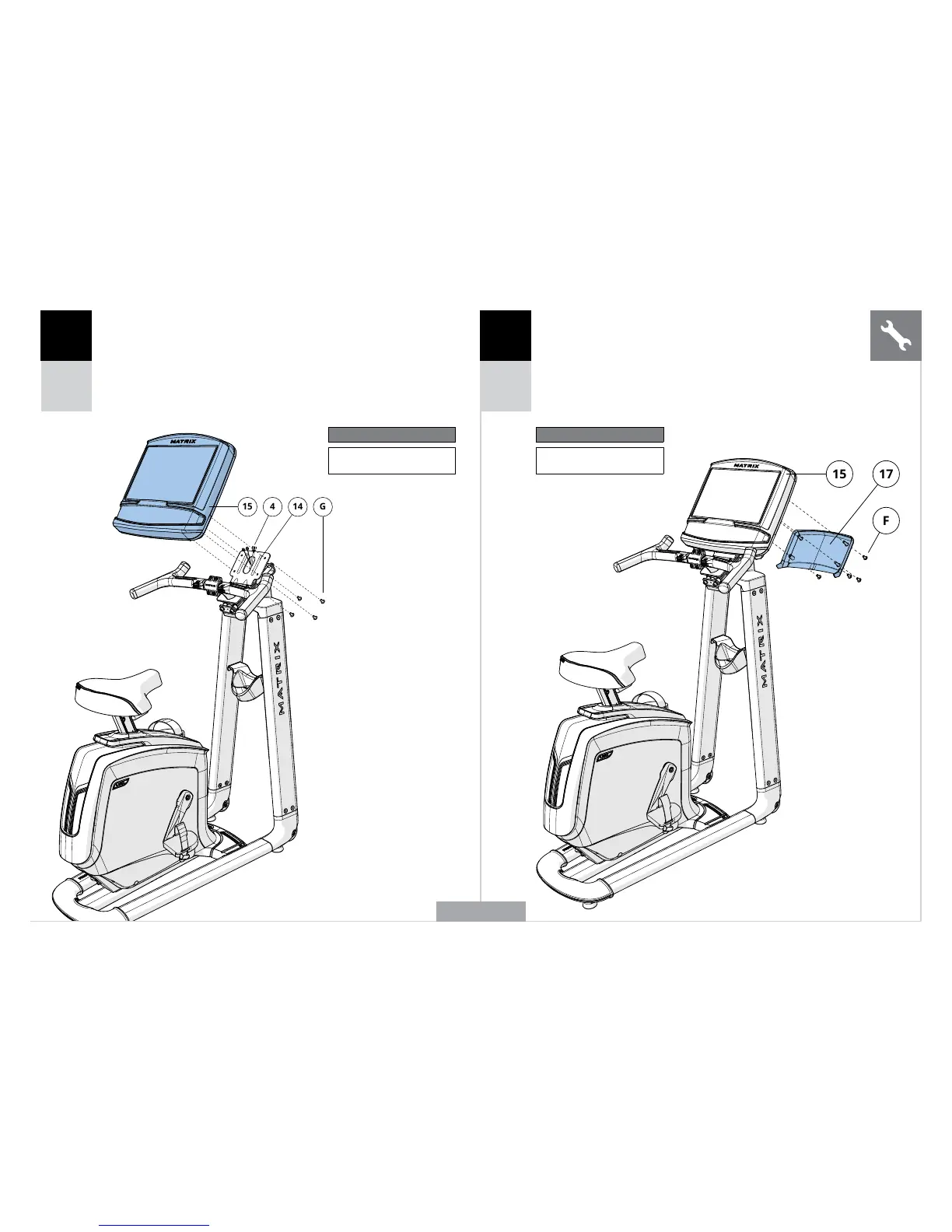

A Open HARDWARE FOR STEP 5.
B Connect the CABLES (4) to the CONSOLE (15) and
carefully tuck them into the CONSOLE BRACKET (14).
C Attach the CONSOLE (15) to the CONSOLE
BRACKET (14) using 4 BOLTS (G).
15
17
F
U30
U50
A Open HARDWARE FOR STEP 6.
B Attach the CONSOLE BACK COVER (17) to
the CONSOLE (15) using 4 SCREWS (F).
Hardware For Step 6
Description Qty
F Screw 4
U50 SHOWN
ENGLISH
Hardware For Step 5
Description Qty
G Bolt 4
