Matrix U7x User Manual

20 21
Z32
Z31
Z33
Q05
AC1
FLAT WASHER
BUTTON HEAD BOLT(M8x15L)
Z33
Z31
Z32
4
4
4
SPRI NG WASHER

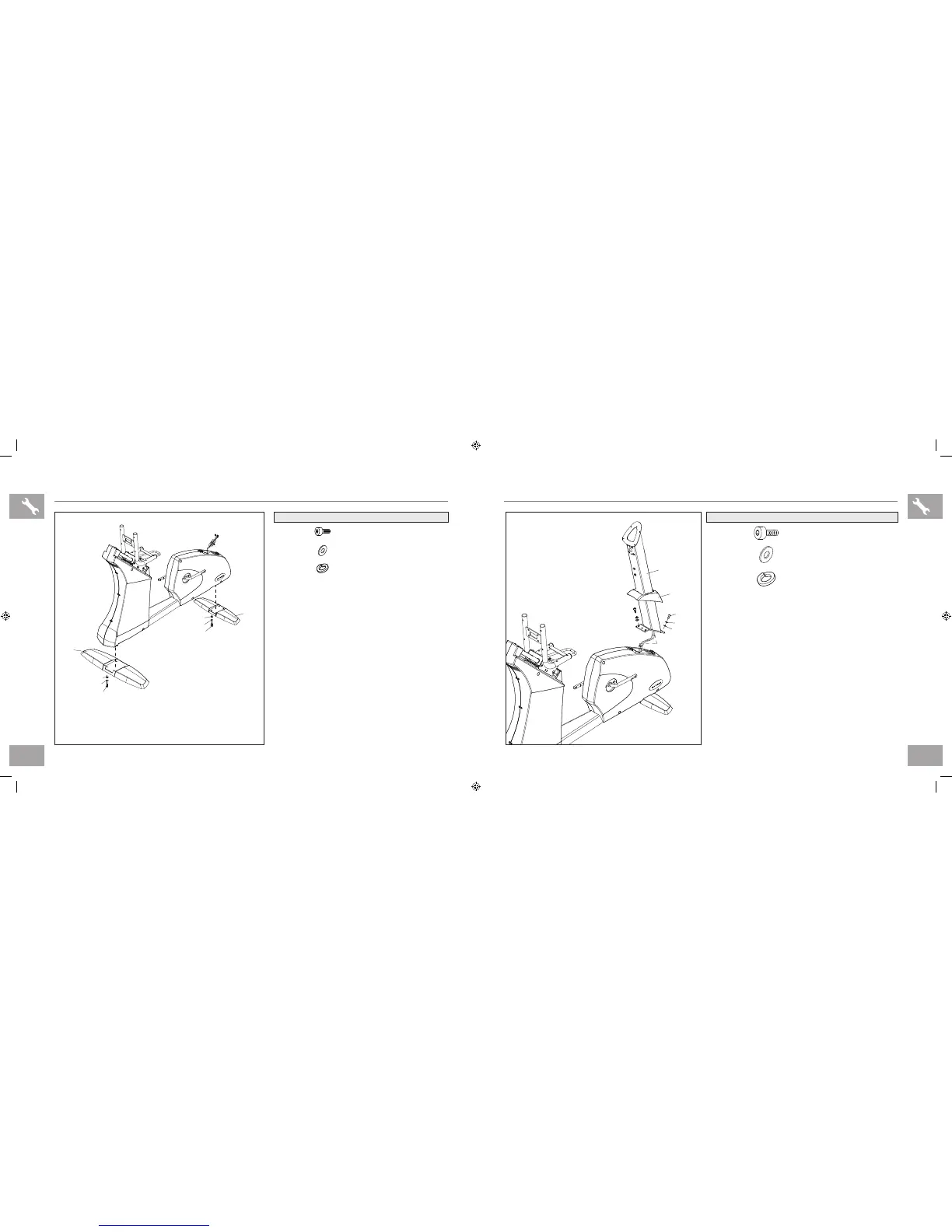

ASSEMBLY STEP 2
A Open YELLOW HARDWARE BAG.
B Attach MANUAL INCLINE LIFT LEVER to GUIDE
RAIL SET using 4 BOLTS (D), 4 FLAT WASHERS
(E), 4 SPRING WASHERS (F) and 4 NUTS (G).
C Align GUIDE RAIL SET with MAIN FRAME as
shown.
D Lift up on the MANUAL INCLINE LIFT LEVER
and place it in one of the holes inside the MAIN
FRAME.
E Attach the GUIDE RAIL SET to the MAIN FRAME
using 4 BOLTS (G), 4 FLAT WASHERS (H), 4
SPRING WASHERS (I) and 4 NUTS (J).
YELLOW HARDWARE BAG CONTENTS
ASSEMBLY STEP 1
A Open BLACK HARDWARE BAG.
B Attach the STABILIZER TUBE to the MAIN
FRAME using 2 BOLTS (A), 2 SPRING
WASHERS (B) and 2 ARC WASHERS (C) on
each side.
FLAT WASHER
BUTTON HEAD BOLT(M8x20L)
Z22
Z23
Z21
8
8
SPRING WASHER 8
BLACK HARDWARE BAG CONTENTS :
Z21 x4
Z23 x4
Z22 x4
AJ2
Z21 x4
Z23 x4
Z22 x4
AJ1
