Matrix U7x User Manual

22 23
Z13
C21
Z11
Z12
AC2
P02
P11

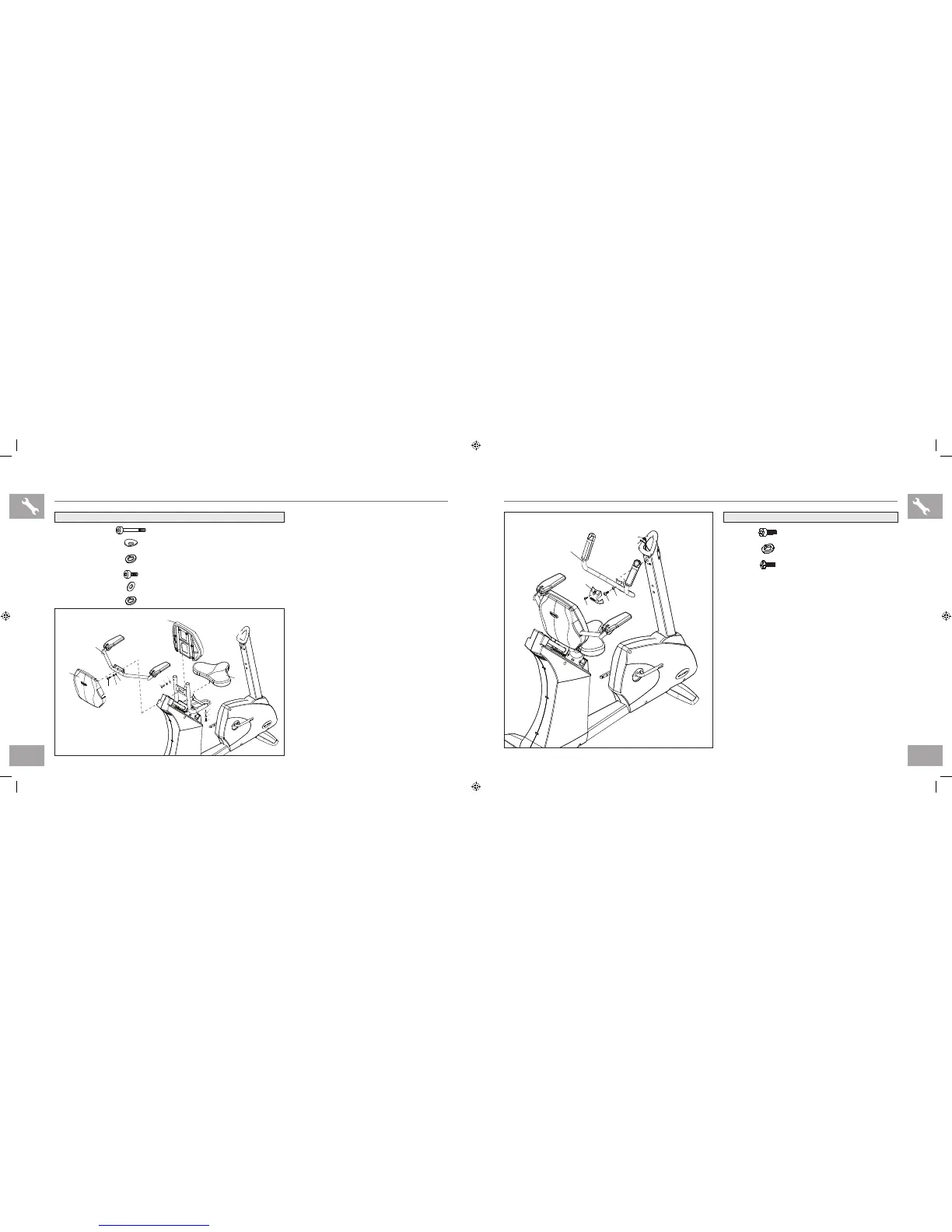

ASSEMBLY STEP 4
A Open WHITE HARDWARE BAG.
B Carefully pull the CONSOLE CABLE through
the CONSOLE MAST using the twist tie located
inside the CONSOLE MAST.
C Attach CONSOLE MAST to MAIN FRAME
using PRE-INSTALLED BOLTS AND
WASHERS.
D Slide WAVY WASHER (L) over CRANK
followed by PEDAL ARM as shown. Rest
PEDAL ARM WHEEL on GUIDE RAIL.
E Attach the PEDAL ARM to the CRANK using 1
FLAT WASHER (K), 1 SPRING WASHER (B)
and 1 BOLT (M).
F Repeat steps D–E on the opposite side of
the bike.
SPRING WASHER
BUTTON HEAD BOLT(M8x25L)
BUTTON HEAD BOLT(M5x10L)
Z11
Z12
Z13
4
2
4
WHITE HARDWARE BAG CONTENTS :
ASSEMBLY STEP 3
A Open RED HARDWARE BAG.
B Attach the GUIDE RAIL SET to the
MAIN FRAME using 4 BOLTS (F), 4
SPRING WASHERS (E) and 4 FLAT
WASHERS (D).
C Attach the GUIDE RAIL SET to the
INCLINE BRACKET using 4 BOLTS
(G), 4 FLAT WASHERS (H), 4 SPRING
WASHERS (I) and 4 NUTS (J).
BUTTON HEAD BOLT(M8x15L)
SPRING WASHER
FLAT WASHER
Z53
Z51
Z52
4
4
4
8ARC WASHERZ42
BUTTON HEAD BOLT(M8x50L)Z41 8
SPRING WASHERZ43 8
RED HARDWARE BAG CONTENTS
D43
Z42
Z53
Q07
Z51
AD4
Z52
Z41
Z43
Z42
Z41
Z42
Z43
bikes_om_r1.5.indd 22-23 9/9/11 8:19 AM
