Matrix U7x User Manual

24 25
T08
T09
T08
T09
Z34
C11
A Open HARDWARE BAG.
B Slide 1 RUBBER WASHER (S) and 1 FLAT
WASHER (T) onto the CONSOLE MAST.
C Slide LOWER HANDLEBAR onto CONSOLE
MAST and attach using 1 FLAT WASHER (T),
1 FLAT WASHER (H), 1 HANDLEBAR CAP, 1
FLAT WASHER (H), 1 SPRING WASHER (B)
and 1 BOLT (U).
D Repeat steps B–C on the opposite side of
the bike.
BUTTON HEAD BOLT(M8x25L)Z34 2
BLUE HARDWARE BAG CONTENTS :

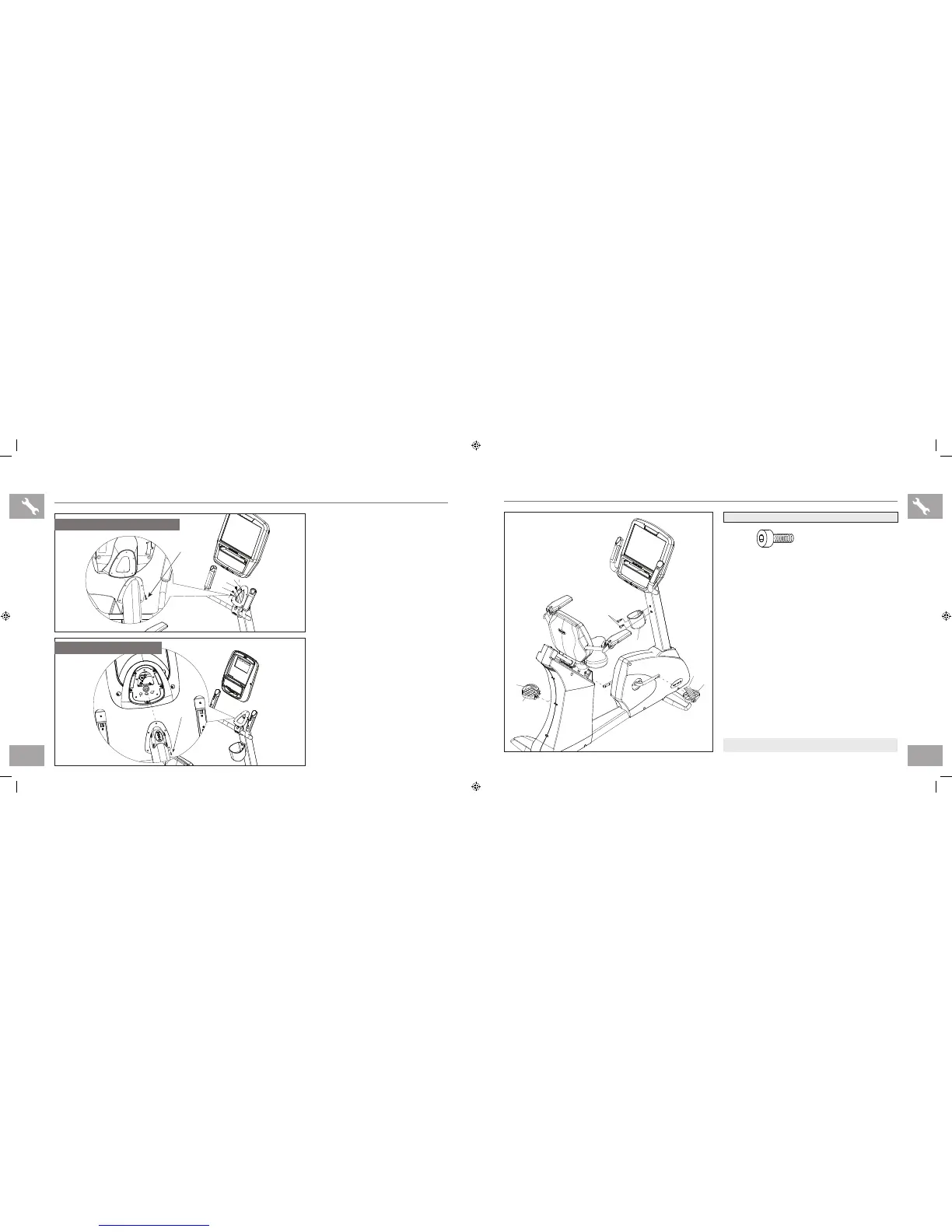

ASSEMBLY STEP 6
P02
P20
P11
P06
CONSOLE SCREW
ASSEMBLY STEP 5
A Open HARDWARE BAG.
B Slide 1 FLAT WASHER (N), 1
WAVY WASHER (O) and another
FLAT WASHER (N) onto the
LOWER LINK ARM.
C Slide the LOWER LINK ARM into
the PEDAL ARM BRACKET.
D Attach the LOWER LINK ARM to
the PEDAL ARM BRACKET using
1 FLAT WASHER (R), 1 SPRING
WASHER (Q) and 1 BOLT (P).
E Repeat steps B–D on the opposite
side of the bike.
ASSEMBLY COMPLETE!
CONSOLE SCR EW
3X / 3XE CONSOLE ASSEMBLY
7XE / 7X / 5X CONSOLE ASSEMBLY
bikes_om_r1.5.indd 24-25 9/9/11 8:19 AM
