Matrix U7x User Manual

30 31
Z43
Z41
Z42
4
Z43
4
Z42
4
Z41
SPRI NG WASHE R-CHROME PLATED
FLAT WASHE R-CHROME PLATED
BUTTON HEAD HEX SOCKET CAP SCREW-CHROME PLATED(M8x20L)

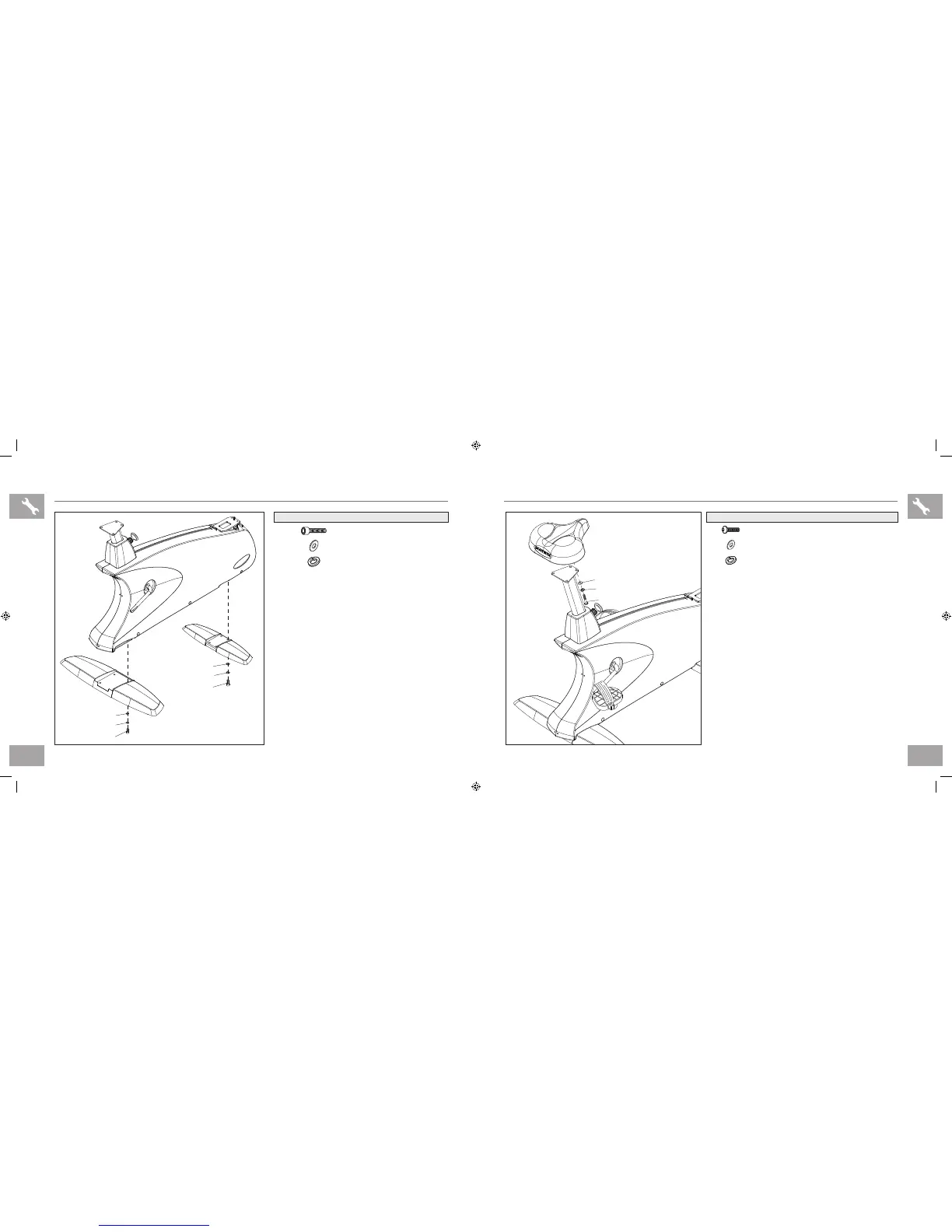

ASSEMBLY STEP 2
A Open RED HARDWARE BAG.
B Attach MANUAL INCLINE LIFT LEVER to GUIDE
RAIL SET using 4 BOLTS (D), 4 FLAT WASHERS
(E), 4 SPRING WASHERS (F) and 4 NUTS (G).
C Align GUIDE RAIL SET with MAIN FRAME as
shown.
D Lift up on the MANUAL INCLINE LIFT LEVER
and place it in one of the holes inside the MAIN
FRAME.
E Attach the GUIDE RAIL SET to the MAIN FRAME
using 4 BOLTS (G), 4 FLAT WASHERS (H), 4
SPRING WASHERS (I) and 4 NUTS (J).
RED HARDWARE BAG CONTENTS
ASSEMBLY STEP 1
A Open BLACK HARDWARE BAG.
B Attach the STABILIZER TUBE to the MAIN
FRAME using 2 BOLTS (A), 2 SPRING
WASHERS (B) and 2 ARC WASHERS (C) on
each side.
8
Z22
8Z21
8
Z23
FLAT WASHER
HEX SOCKET HEAD CAP SCREW(M8x20L)
SPRING WASHER
BLACK HARDWARE BAG CONTENTS :
Z21
Z22
Z23
Z23
Z22
Z21
