Matrix U7x - RECUMBENT CYCLE ASSEMBLY STEPS

40 41
Z32
Z33
Z31
BUTTON HEAD BOLT(M8x15L)Z31 4
Z32 FLAT WASHER 4
Z33 SPRING WASHER 4

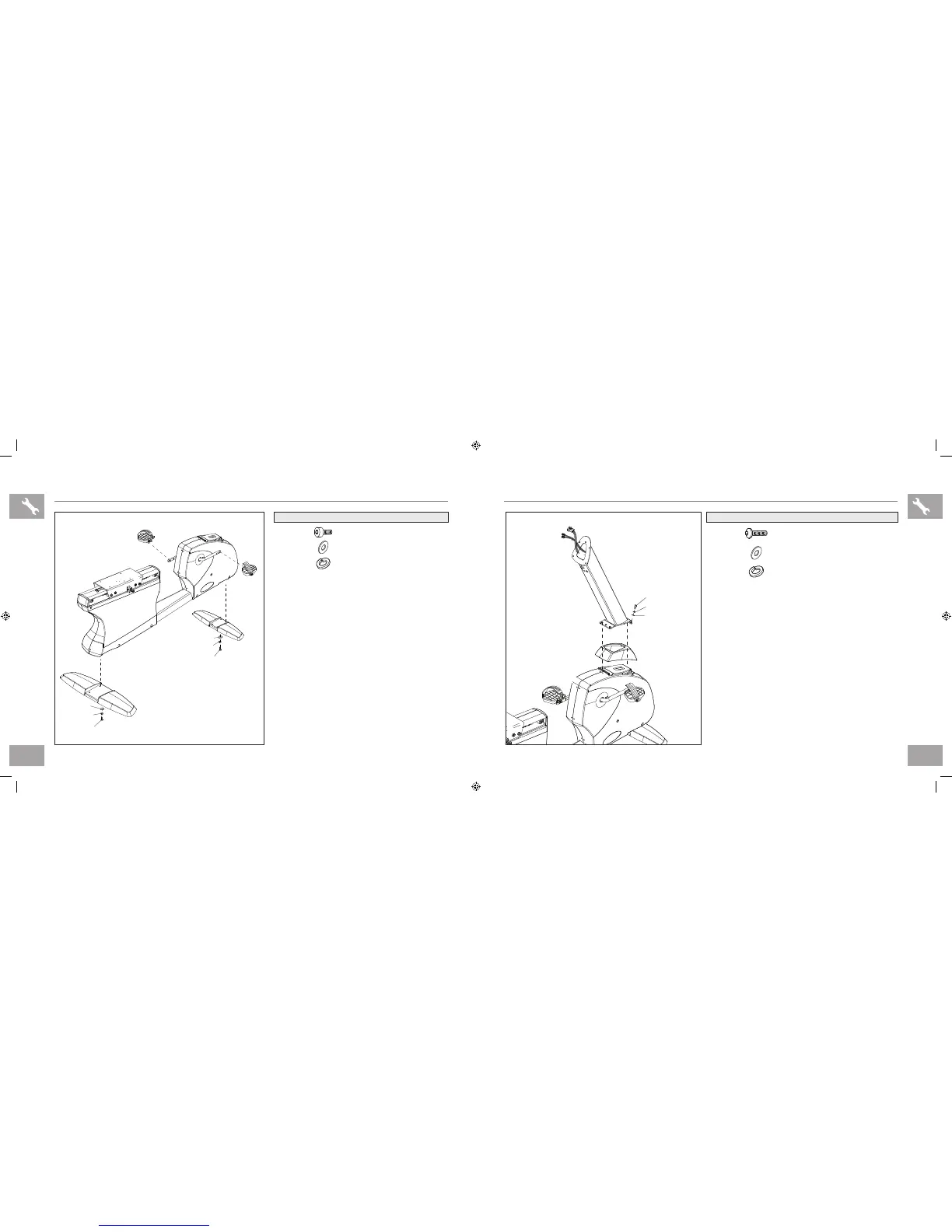

ASSEMBLY STEP 2
A Open RED HARDWARE BAG.
B Attach MANUAL INCLINE LIFT LEVER to GUIDE
RAIL SET using 4 BOLTS (D), 4 FLAT WASHERS
(E), 4 SPRING WASHERS (F) and 4 NUTS (G).
C Align GUIDE RAIL SET with MAIN FRAME as
shown.
D Lift up on the MANUAL INCLINE LIFT LEVER
and place it in one of the holes inside the MAIN
FRAME.
E Attach the GUIDE RAIL SET to the MAIN FRAME
using 4 BOLTS (G), 4 FLAT WASHERS (H), 4
SPRING WASHERS (I) and 4 NUTS (J).
RED HARDWARE BAG CONTENTS
ASSEMBLY STEP 1
A Open BLACK HARDWARE BAG.
B Attach the STABILIZER TUBE to the MAIN
FRAME using 2 BOLTS (A), 2 SPRING
WASHERS (B) and 2 ARC WASHERS (C) on
each side.
BUTTON HEAD BOLT(M8x20L)Z21 8
FLAT WASHERZ22 8
SPRING WASHERZ23 8
BLACK HARDWARE BAG CONTENTS :
Z23
Z22
Z23
Z22
Z21
Z21
