Matrix U7x User Manual

42 43
AC2
Q08
Z11
Z12
Z13
Z34
BUTTON HEAD BOLT(M8x25L)Z11 4
SPRING WASHERZ12 4
BUTTON HEAD BOLT(M5x10L)Z13 2
BUTTON HEAD BOLT(M8x25L)Z34 2

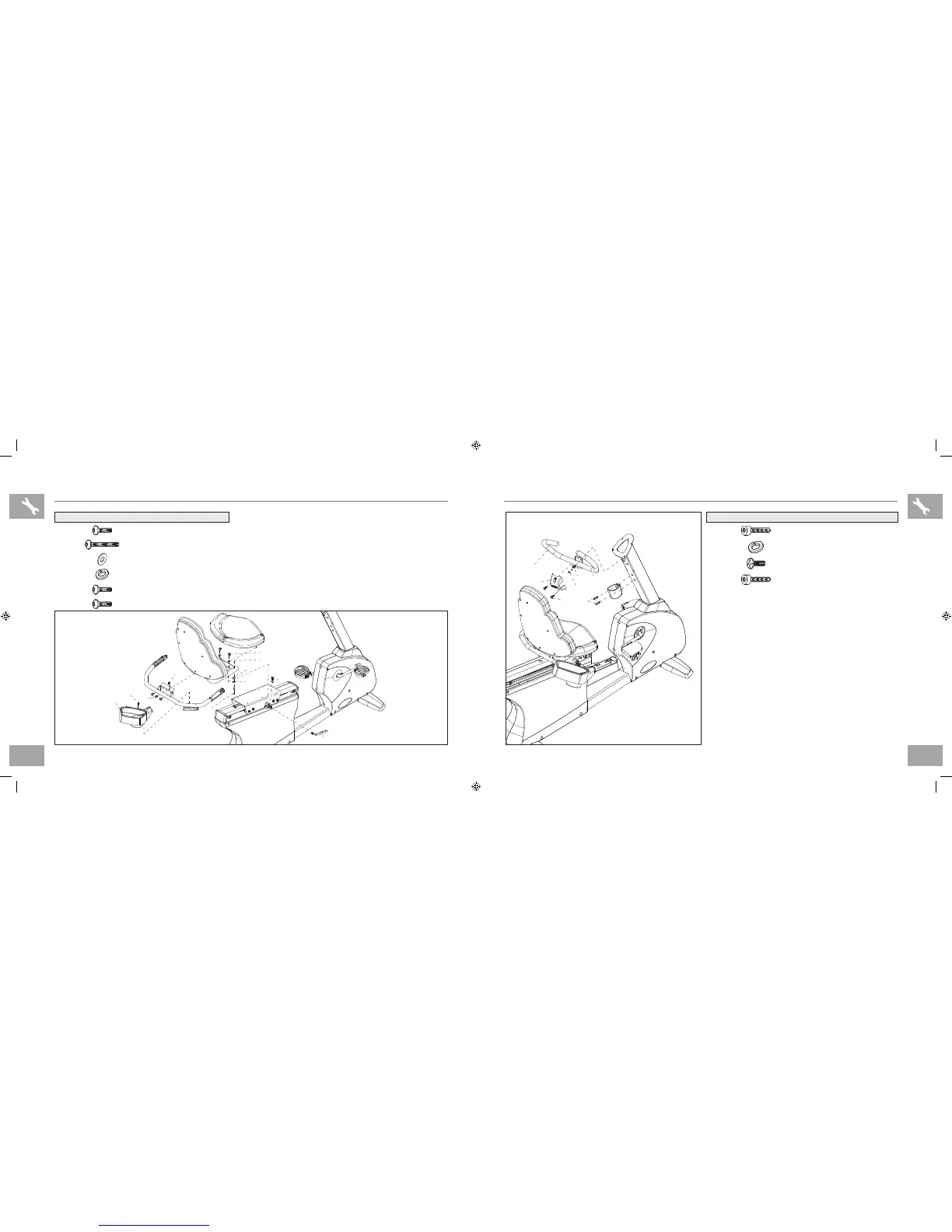

ASSEMBLY STEP 4
A Open RED HARDWARE BAG.
B Attach MANUAL INCLINE LIFT LEVER to GUIDE
RAIL SET using 4 BOLTS (D), 4 FLAT WASHERS
(E), 4 SPRING WASHERS (F) and 4 NUTS (G).
C Align GUIDE RAIL SET with MAIN FRAME as
shown.
D Lift up on the MANUAL INCLINE LIFT LEVER
and place it in one of the holes inside the MAIN
FRAME.
E Attach the GUIDE RAIL SET to the MAIN FRAME
using 4 BOLTS (G), 4 FLAT WASHERS (H), 4
SPRING WASHERS (I) and 4 NUTS (J).
RED HARDWARE BAG CONTENTS
ASSEMBLY STEP 3
A Open BLACK HARDWARE BAG.
B Attach the STABILIZER TUBE to the MAIN FRAME using
2 BOLTS (A), 2 SPRING WASHERS (B) and 2 ARC
WASHERS (C) on each side.
BUTTON HEAD BOLT(M8x15L) 4Z41
BUTTON HEAD BOLT(M8x50L)Z42 4
ARC WASHERZ43 4
Z44 SPRING WASHER 8
BUTTON HEAD BOLT(M8x15L)Z45 3
BUTTON HEAD SCREW(M5x40L)Z55 2
BLACK HARDWARE BAG CONTENTS :
D80
Z55
D57
D55
Z44
P04
Z42
Z45
Z44
Z43
Z41
D10
bikes_om_r1.5.indd 42-43 9/9/11 8:19 AM
