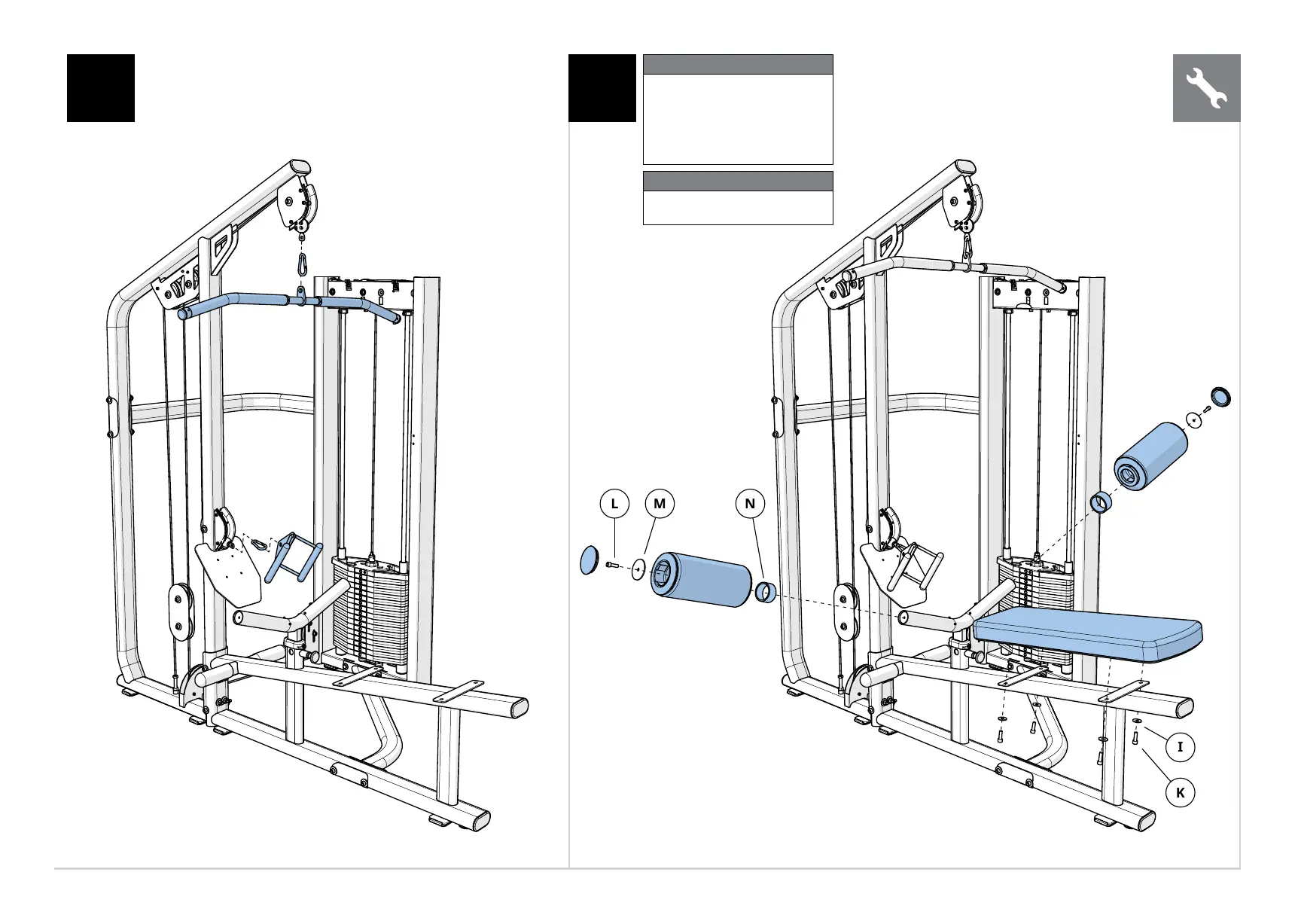

Step 6 Hardware
Description Qty
K
I
L
M
N
Bolt (M10x30L)
Flat Washer (Φ10.2)
Bolt (M8x25L)
Bracket
Sleeve
4
4
2
2
2
Torque Values
K
L
10 Nm / 7 ft-lb
25 Nm / 18 ft-lb
