Matrix VS-S71 User Manual

11
ASSEMBLY

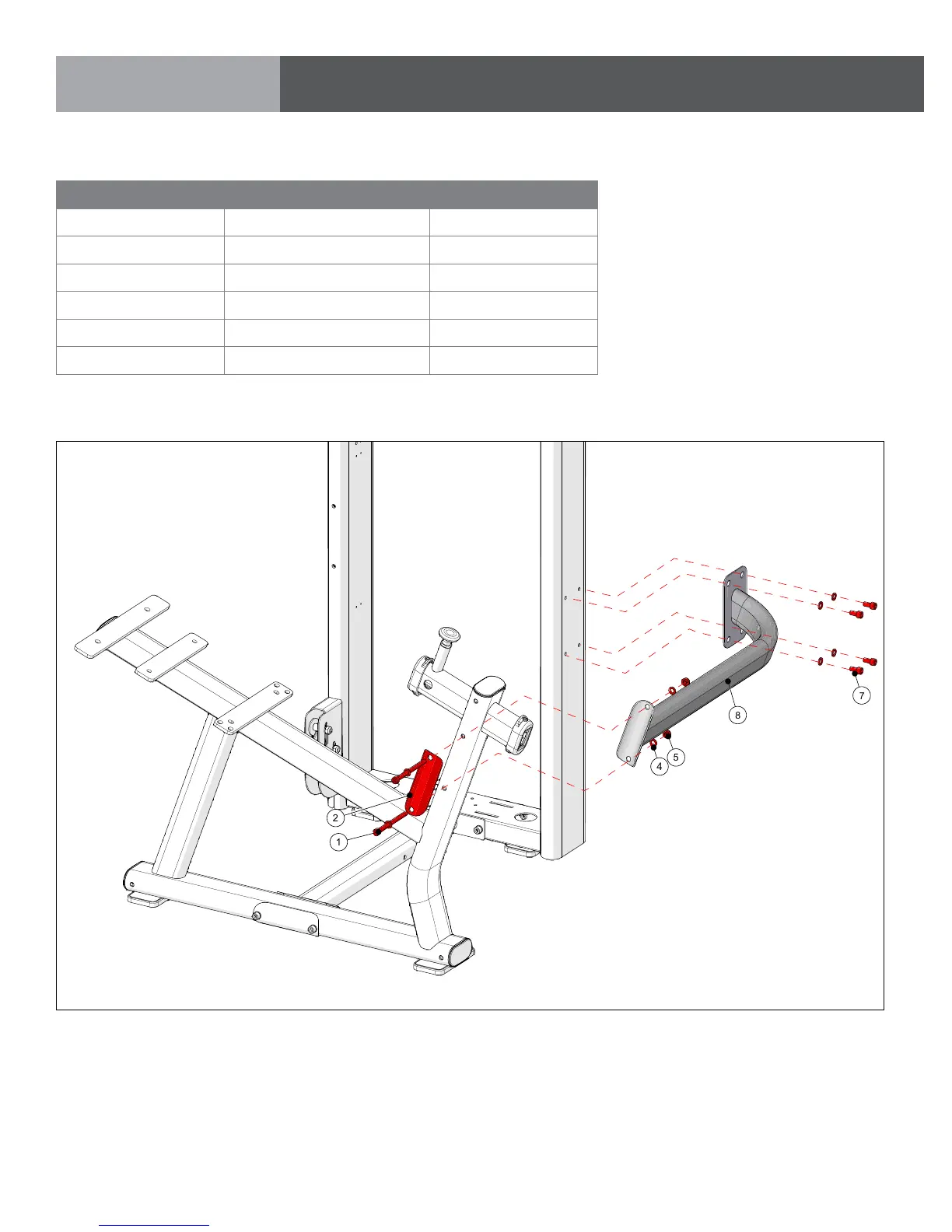

STEP 2 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
PART 1: STACK & USER FRAME ASSEMBLY
4
7
8
5
2
1
ID DESCRIPTION QUANTITY
1 M10 X 125L SHC 2
2 Wide Cupped Flange 2
4 M10 Flat Washer 8
5 M10 Nylock Nut 2
7 M10 X 20L SHC 4
8 Rear Connecting Tube 1
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
