12
PART 1: STACK & USER FRAME ASSEMBLY
STEP 3 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
7 M10 X 20L SHC 4
9 Rear Stack Support 1
10 M10 Flat Washer (Small Diamter) 4
11 M8 X 20L SHC 2
12 M8 Flat Washer 2

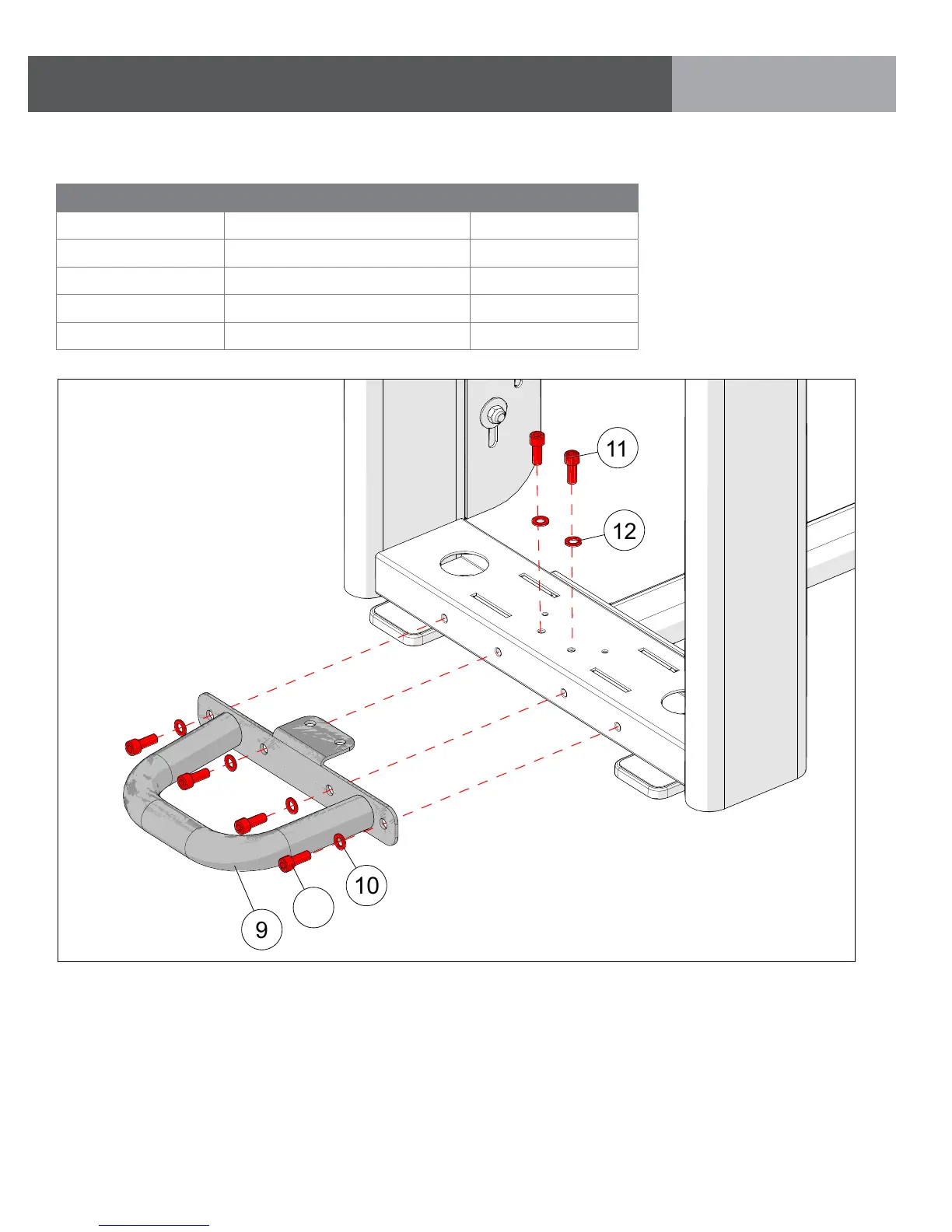

ASSEMBLY
12
11
10
9
7
Install the user frame hardware as shown.
Torque M10 hardware to: 77 N-m/57 ft-lbs.
Torque M8 hardware to: 39 N-m/29 ft-lbs.
