Matrix VS-S71 User Manual

14
ASSEMBLY

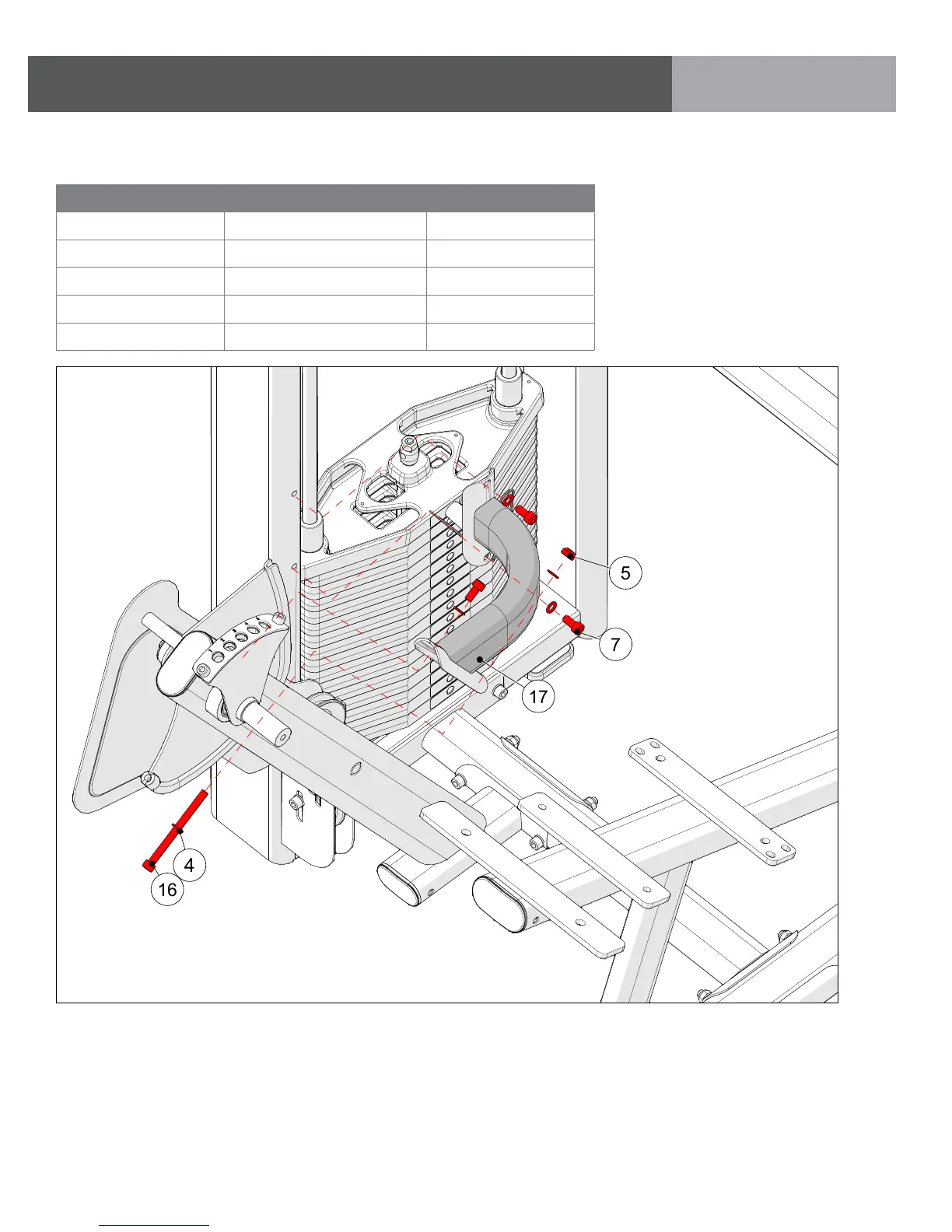

STEP 5 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
PART 1: STACK & USER FRAME ASSEMBLY
7
4
16
5
17
ID DESCRIPTION QUANTITY
4 M10 Flat Washer 5
5 M10 Nylock Nut 1
7 M10 X 20L SHC 3
16 M10 X 120L SHC 1
17 Upper Connecting Tube 1
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
