6 Matrox M-Series – User Guide

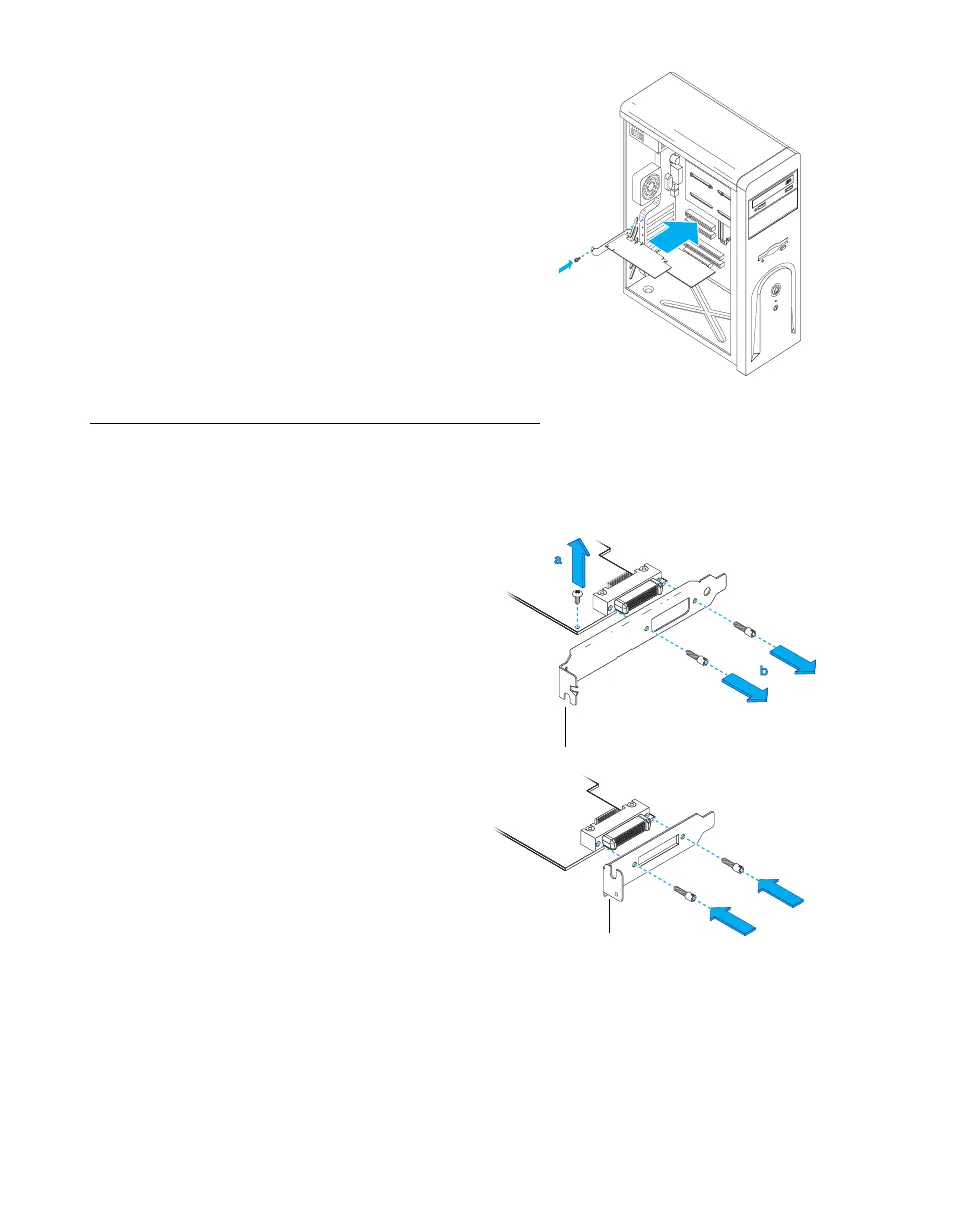

3 Insert your Matrox card
a
Position your Matrox card over the
expansion slot you’ve chosen.
b
Push the card in firmly and evenly until
it’s fully seated in the slot.
c
Secure the bracket of your Matrox card
to the computer frame.
Replacing brackets on a low-profile graphics card
Most Matrox low-profile graphics cards ship with ATX brackets compatible with most systems. The
following explains how to change brackets on your Matrox product.
1
Remove the current bracket
from your Matrox graphics card
by removing the screw (
a
) on top
of the graphics card, then the
nuts (
b
) on either side of the
monitor connector.
2
Attach and fasten the new
bracket with the two nuts you
just removed.
