Matrox QuadHead2Go Q2G-DP4K - Page 41

Matrox
®
QuadHead2Go
™
Series Configuration Guide
41/48
units
If n ≠ 1
 
4
 
# GPU outputs
If n = 1
# QuadHead2Go units + 1
If n ≠ 1
Same as # QuadHead2Go units.

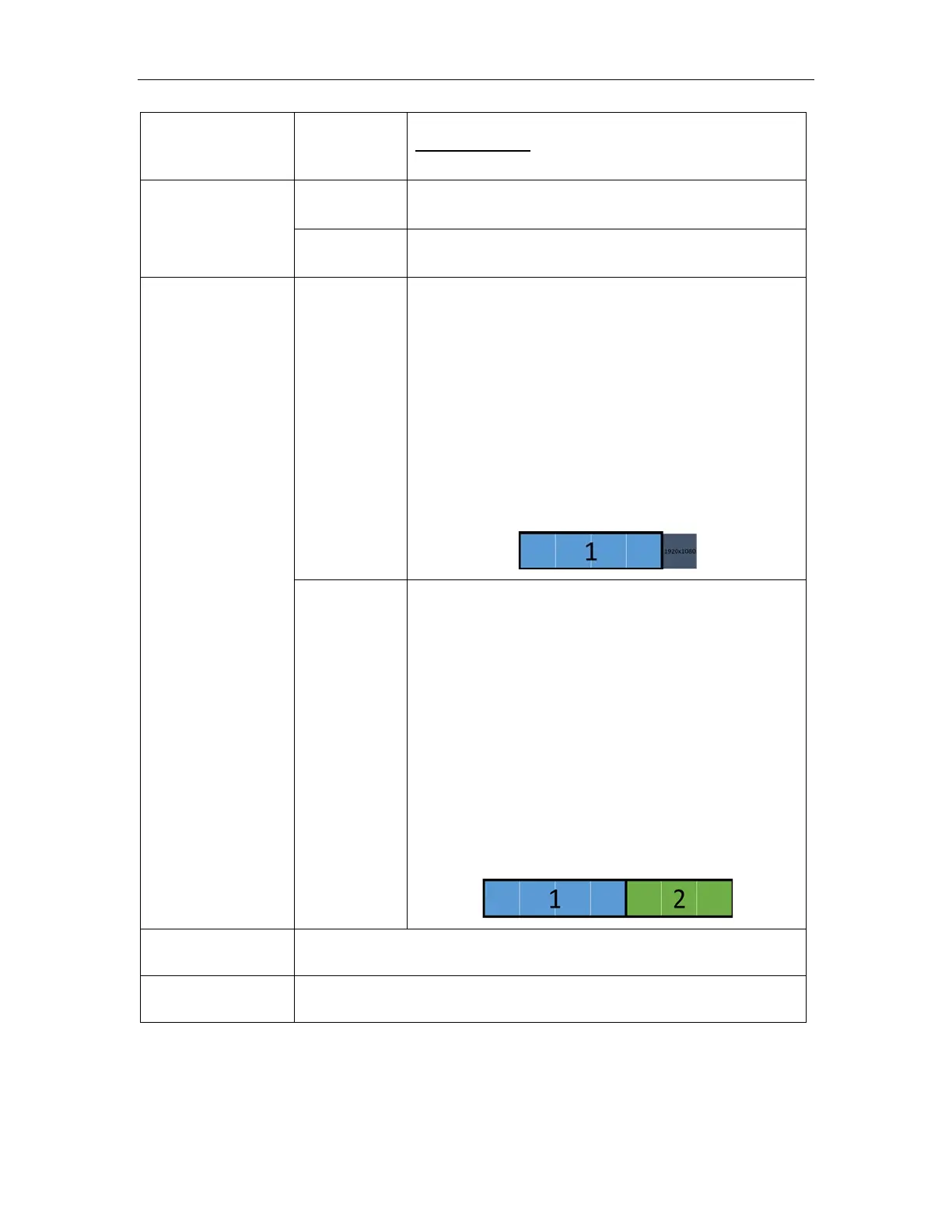

Configuration
If n = 1
If rows = 1:
Place each QuadHead2Go unit in a 4x1
configuration. The right-most single monitor is a
direct 1920x1080 output from the source.
If columns = 1:
Place each QuadHead2Go unit in a 1x4
configuration. The bottom-most single monitor is
a direct 1920x1080 output from the source.
Example:
If n ≠ 1
If rows = 1:
Place each QuadHead2Go unit in a 4x1
configuration, except the right-most or left-most
QuadHead2Go, which will be in a nx1
configuration.
If columns = 1:
Place each QuadHead2Go unit in a 1x4
configuration, except the top-most (or bottom-
most) QuadHead2Go, which will be in a 1xn
configuration.
Example:
Reason
A horizontal or vertical line is formed.
Exceptions
1x6, 6x1, 1x9, 9x1.
