disconnecting the batteries. If VSR chatter is experienced, increase the
delay in 20 second increments.
LOWER DELAY IN SECS: This setting determines how long the primary/
starting battery will be allowed to remain at the lower limit in volts before
the MPVSR cuts out and isolates the primary/starting battery. A delay is
useful here because the voltage of the starting battery may drop below
this point for a few seconds when starting the vehicle, but return to a safe
level quickly. In this scenario you would not need to isolate the primary/
starting battery.

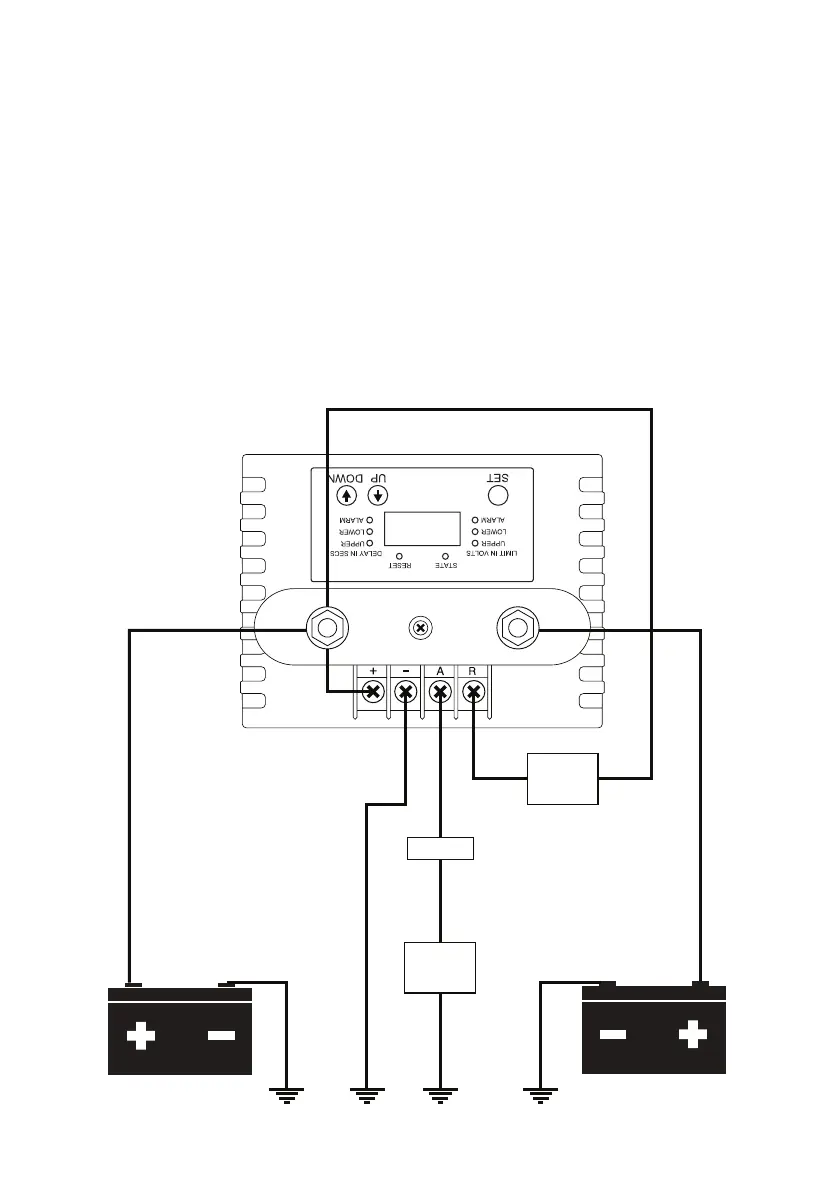

DUAL BATTERY WIRING EXAMPLE
+ SENSE WIRE
12 Volt Primary
Battery
(Sensing)
12 Volt Secondary
Battery
(Charging)
BUZZER
MUTE
SWITCH
(OPTIONAL)
REMOTE
OVERRIDE
SWITCH
