8
MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180
Matweld reserves the right to change parts, features, or specifications without notice.
03/08
06900 MULTI-PURPOSE GRINDER
1
2
3

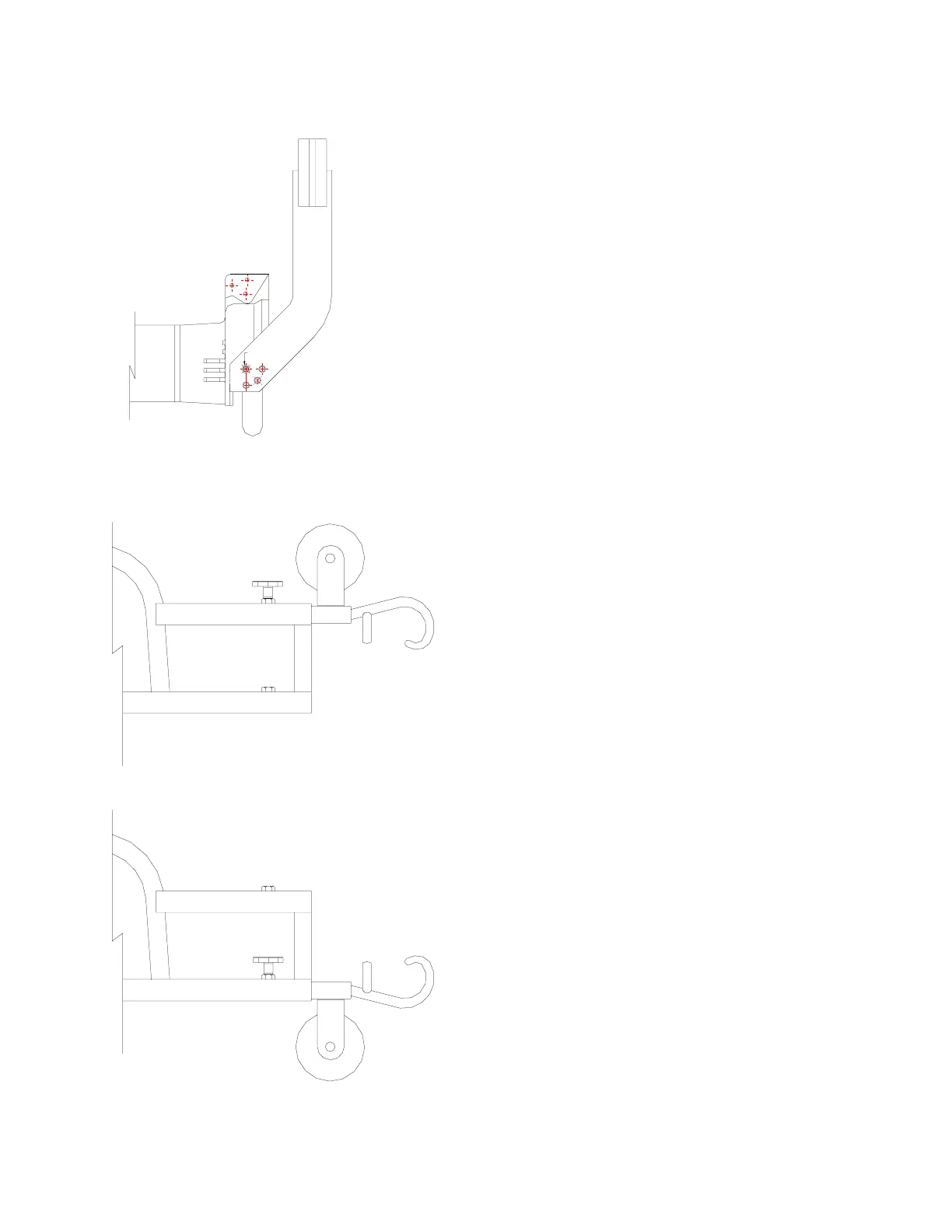

PIVOT
POSITION 3
THE STONE IS IN THE VERTICAL POSITION. THE
WHEEL AND ONE FLANGE IS USED. THIS POSITION
IS PRIMARILY USED FOR FROG POINT AND ROLL
OVER GRINDING.
NOTE: USE BOTH FLANGES ON THE RAIL WHEEL IN
THIS POSITION FOR STRAIGHT RAIL ROLL OVER
GRINDING.
RAIL GUIDE POSITION
POSITION 1
USE THE RAIL HOOK IN THE DOWN
POSITION FOR FIELD WELD GRINDING.
POSITION 2
USE THE RAIL HOOK IN THE UP POSITION
FOR ALL OTHER GRINDING APPLICATIONS.
