PIVOT
1
2
3
06900 MULTI-PURPOSE GRINDER
FLOW: 10 GPM (38 LPM)
PRESSURE: 2000 PSI (140 BAR)
ROTATION: COUNTER CLOCKWISE
RPM: 4000
OPERATION:
1. WITH THE POWER SOURCE IN THE “OFF” POSITION, CONNECT THE HOSES. DO
NOT DRAG THE SERVICE HOSE BY PULLING WITH THE TOOL. LOOP THE SERVICE
HOSE IN THE WORK AREA IN SUCH A WAY TO RELIEVE STRESS ON THE HOSE AND
QUICK DISCONNECT FITTINGS WHILE WORKING. BE AWARE OF HOSE LOCATION
AT ALL TIMES.
2. CONNECT THE TOOL TO THE POWER SOURCE.
3. GRASP THE TOOL FIRMLY BEFORE TURING ON THE VALVE OR ENGAGING THE
TRIGGER. THERE WILL BE A SLIGHT TORQUE REACTION WHEN THE STONE IS
ACTIVATED.

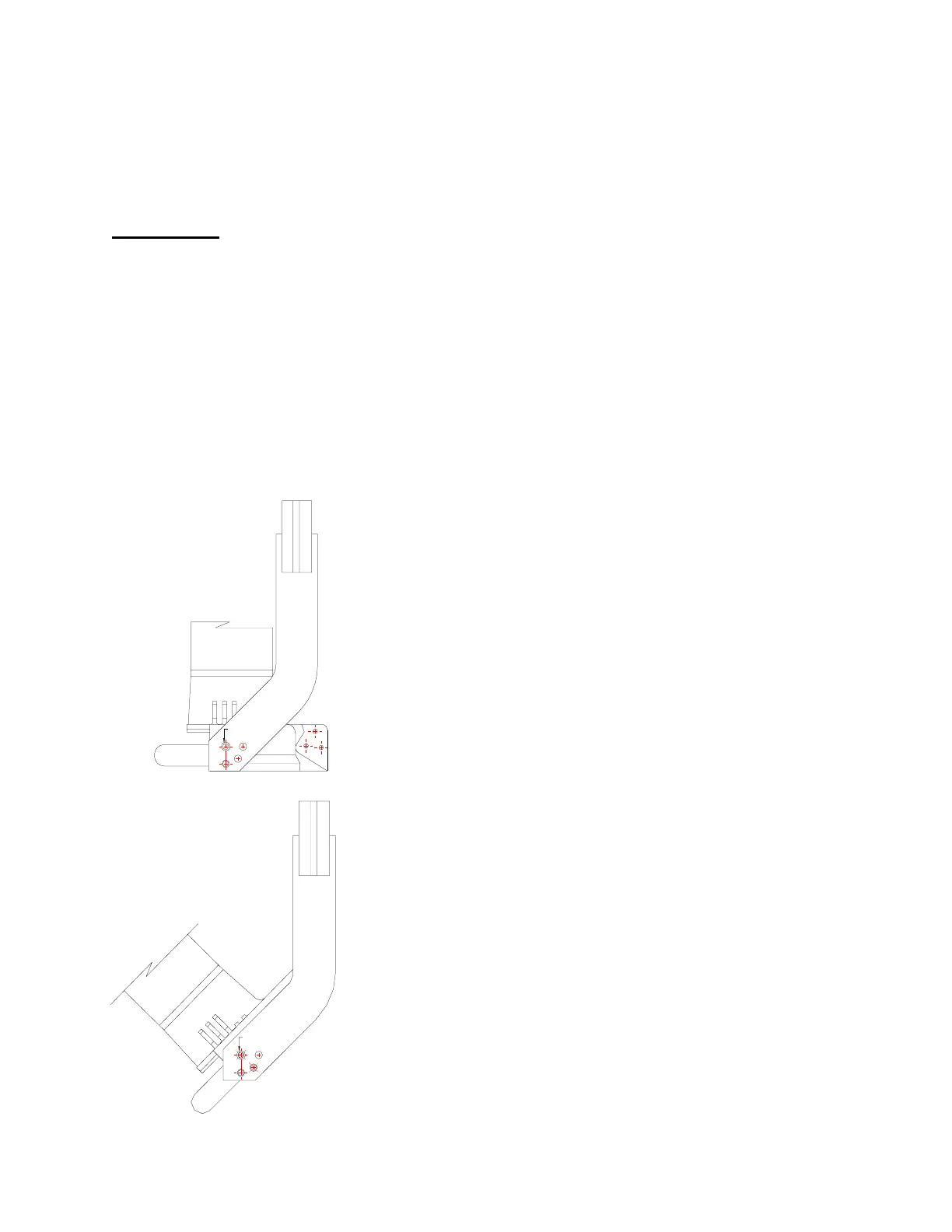

POSITION 1
THE STONE IS IN THE HORIZONTAL POSITION. THE
HOOK IS ALSO USED IN THIS POSITION. THIS POSITION
IS PRIMARILY USED FOR COMPLETE THERMITE WELD,
PROFILE BLENDING AND REMOVAL.
3
2
1
PIVOT
POSITION 2
THE STONE IS IN THE 45 DEGREE POSITION. THE
WHEEL WITH THE BOTH FLANGES IS USED. THIS
POSITION IS PRIMARILY USED FOR SWITCH UNDER
CUTTING AND ROLL OVER REMOVAL.
GRINDING HEAD POSITION
