3. TECHNICAL DESCRIPTION
3.1. Operation conditions
Electrical device is designed to flawless work
under following climatic conditions :
temperature from +5 to +30°C
relative humidity 60% by +30°C
or 90% by +20°C
Electric power of the device is quoted in the
electro technical documentation. The machine is
delivered for the electricity system 400/230V, 50
Hz. Other values have to be declared in the
contract of sale.
Nominal values, dimensions and connection
places are stated in the project drawing.
3.2. Technical parameters
Total electrical power consumption 10,8 kW
Input of heating element in smoke generator 0,7 kW
Input of heating elements in chamber 9 kW
Input of fan 1,1 kW
Dimensions :
width 620 mm
depth 800 mm
height 1780 mm
Total weight (empty chamber) 230 kg
Water connection G 1/4"
Diameter of smoke outlet 100 mm

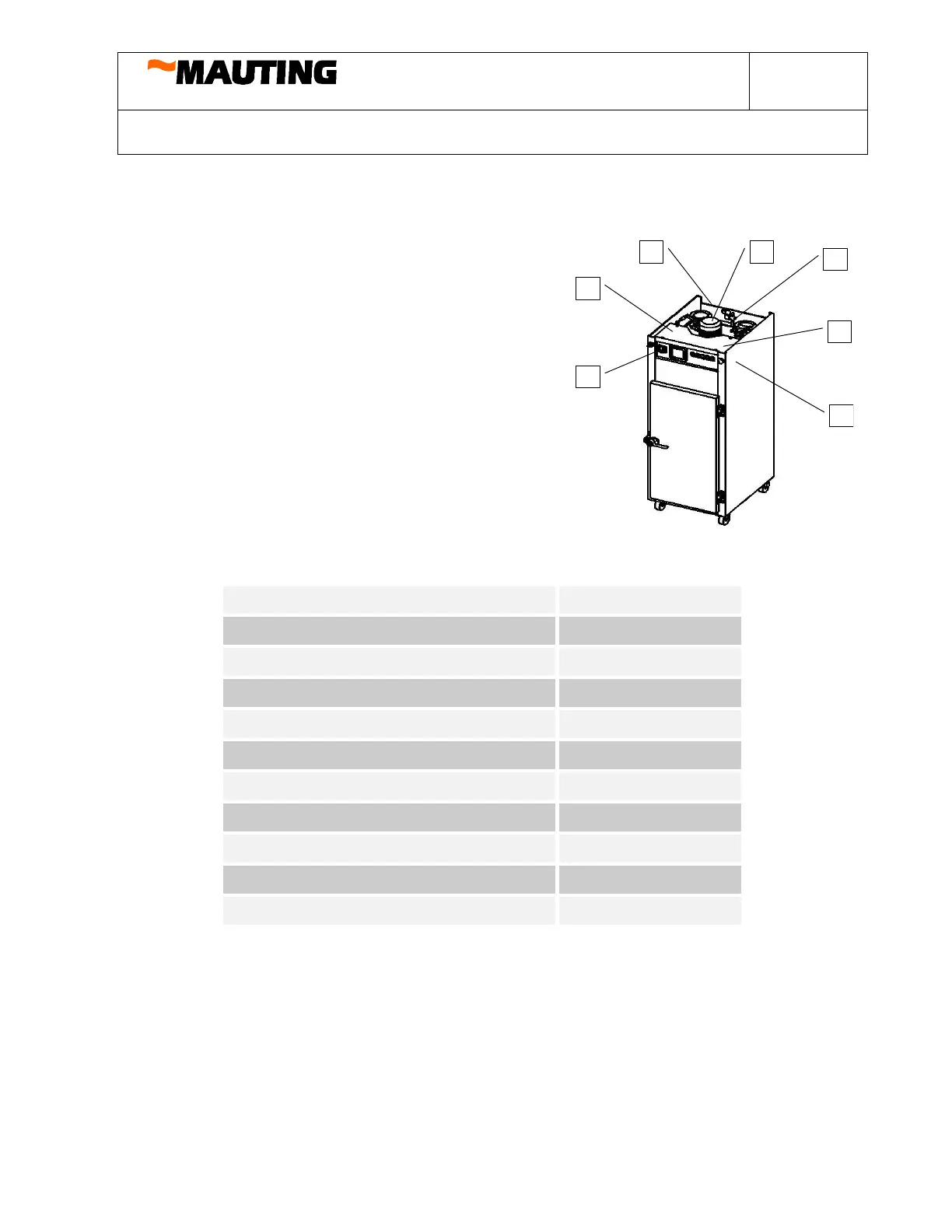

3.3. Description
Smoking chamber Junior consists of welded housing and other parts that are screwed on it.
Housing of the chamber is created by side panels, rear panel, on it is fixed smoke generator,
floor, ceiling, which part is the fan with a gear, outlet flap, fresh air flap and water
distribution for humidification, and front bars serving for connections and fortifications of
ceiling and floor in the front part of the chamber housing.
