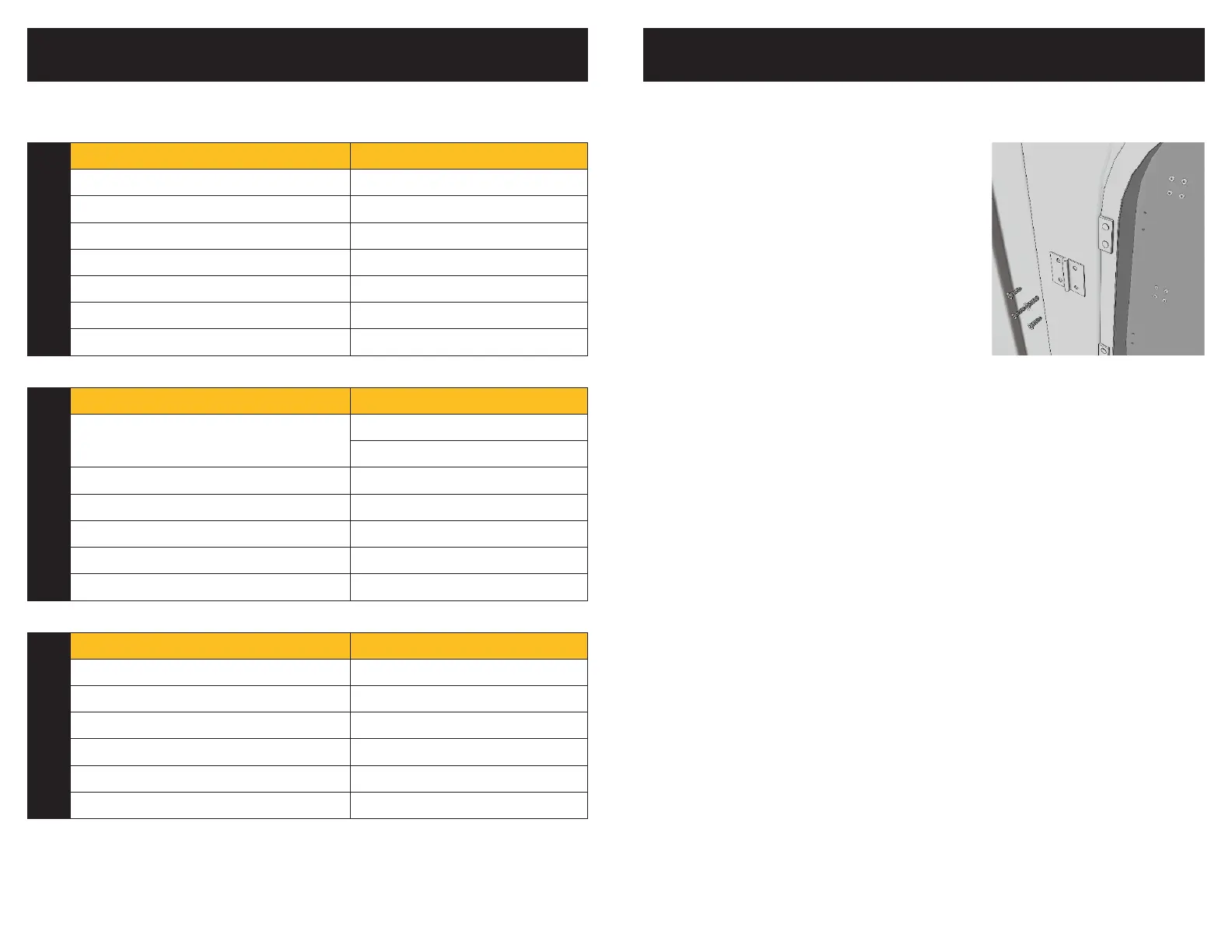

Installing Windows (Blind Specific)
Step 1: Peel off protective film from windows
Step 2: Mount hinges into the pre-drilled holes
at the bottom (5-Shooter GX or 6-Shooter) or
side (XL) of each blind window
+ The hinge pins & screw heads should
be inside the blind when installed
DO NOT over tighten hinges to the plexiglass; this can cause the window to
crack. Tighten nuts by hand or with a socket.
DO NOT use Loctite.
Step 3: Hand-tighten nuts or use a 5/16” socket to snug them
+ Screw heads and hinge pins should be inside, nuts on the outside
Step 4: Apply seal to outer edge of each window on the side opposite of the hinge
+ Gradually peel white backing off as you make your way around the
window while applying some tension
+ Stay within 1/8” of the edge of the window
+ Tear seal from roll once complete
Step 5: Attach each window from inside the blind using screws and
a drill or screwdriver
+ Notice the screws will grab the plastic of the blind and hold the windows
in place temporarily
+ Attach and tighten nuts from outside
Step 6: From inside the blind, use machine screws to mount (3) window clips per
window into pre-drilled holes (No nuts needed)
5-SHOOTER GX
Parts Quantity
Horizontal Plexiglass Windows 5 (22” x 10”)
Vertical Plexiglass Windows 1 (11” x 19”)
Window Hinges 11
Window Hinge Screws/Nuts 44
Window Clips 18
Window Clip Kit Screws 20
Window Seal Roll 1
6-SHOOTER
Parts Quantity
Vertical Plexiglass Windows
1 (11” x 19”)
8 (10” x 22”)
Window Hinges 9
Window Hinge Screws/Nuts 36
Window Clips 27
Window Clip Kit Screws 30
Window Seal Roll 1
XL
Parts Quantity
Vertical Plexiglass Windows 9 (11” x 22”)
Window Hinges 18
Window Hinge Screws/Nuts 72
Window Clips 27
Window Clip Kit Screws 30
Window Seal Roll 1
INSTALLING WINDOWS INSTALLING WINDOWS
