Installing the 5-Shooter GX & 6-Shooter Door Hardware
Step 1: Cut the remaining (2) tabs out of the door that are holding it closed
+ These are in place to secure door during shipping
Step 2: Slide door seal onto the blind
+ You can trim the seal at each corner or wrap it continuously
until you reach the hinges
+ Trim the remaining seal piece to fit between the door hinges
+ You may have to push or tap the seals on

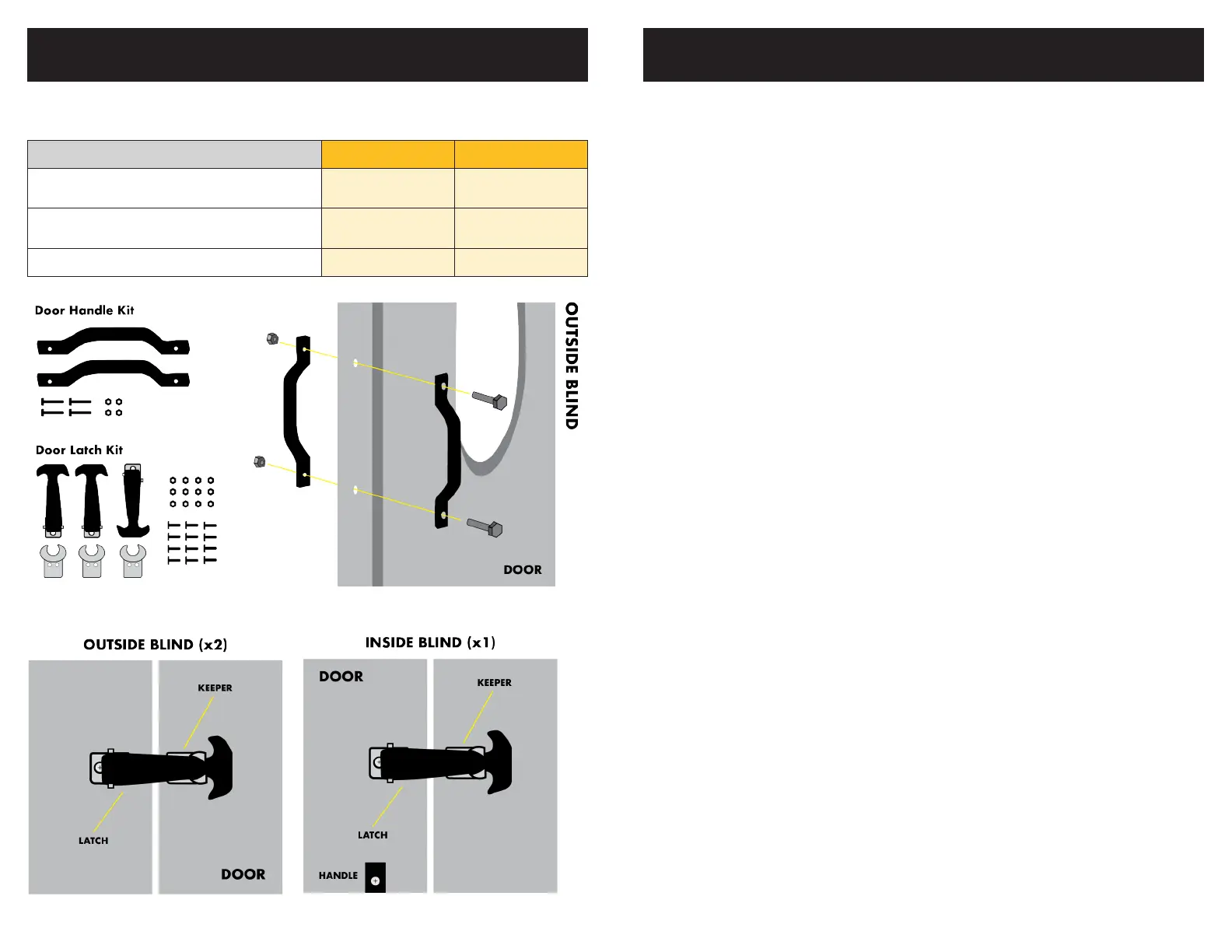

Step 3: Place door handles back-to-back using the middle set of pre-drilled
holes on the door using (2) bolts and (2) nuts
Step 4: Install (3) door latch keepers using pre-drilled holes on the door
+ Screws install from the outside of the blind and thread through to the inside
+ Place (2) keepers on the outside of the blind and (1) on the inside
Step 5: Install the (3) door latches using the pre-drilled holes on the blind
+ Place (2) latches on the outside of the blind and (1) on the inside
Part 5-Shooter GX 6-Shooter
Door Latch Kit
(2 latches outside, 1 latch inside)
3 3
Door Handle Kit
(1 handle outside, 1 handle inside)
1 1
Door Seal 1 1
INSTALLING DOOR HARDWARE INSTALLING DOOR HARDWARE
5-Shooter GX and 6-Shooter Specic Instructions
