MAX 7136
Professional PA amplifier
CONNECTORS

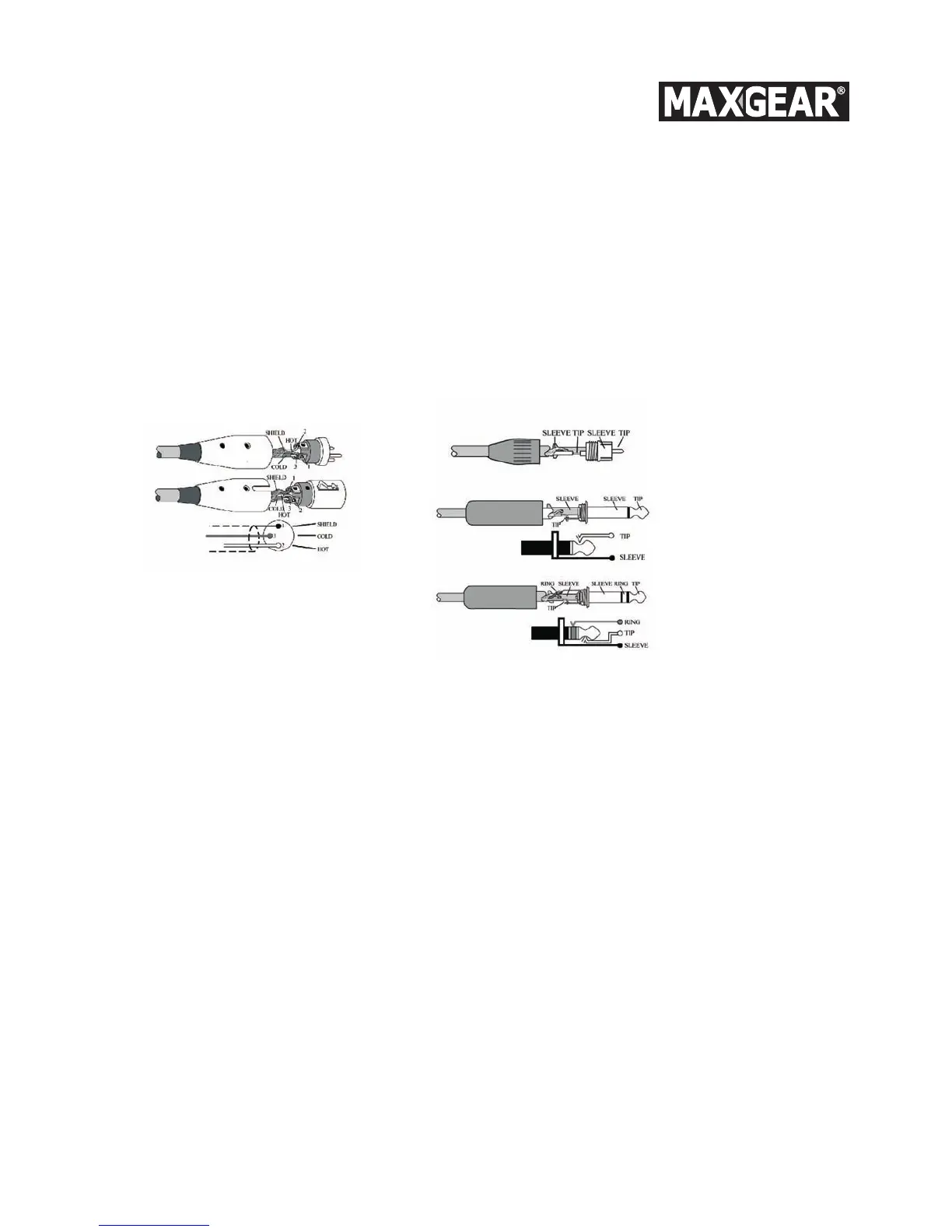

The following diagrams show the wiring of the connectors that can be used wi th the amplifiers.
To connect the amplifier to the loudspeaker enclosures always use power cables (speaker cables made
up of two wires, normally with a large cross-section) .Take care of your connector cables, always grip-
ping them by the plugs, avoid pulling them directly and winding them without knots or bends: they
will last longer and be more reliable, which is to your advantage.
Check periodically that your cables are in good condition, correctly wired and with perfectly, correct-
ly wired and with perfectly efficient contacts: in fact many problems and drawbacks (false contacts,
ground hum, crackles, etc.) are caused by the use of unsui table or damaged cables.
SPECIFICATIONS
Power Output (RMS) 2 x 125 Watts @ 4 Ohm
Professional power amplifier 27V
Load Impedance Mini 4 Ohm
Frequency Response 10 Hz ~ 20 Khz
Signal to noise >= 105 dB
Ratio. T.H.D. <= 0.1%
Crosstalk >70 dB
Rated input level 0 dB
Dimensions (WxHxD) 484 x 254 x 88 mm
