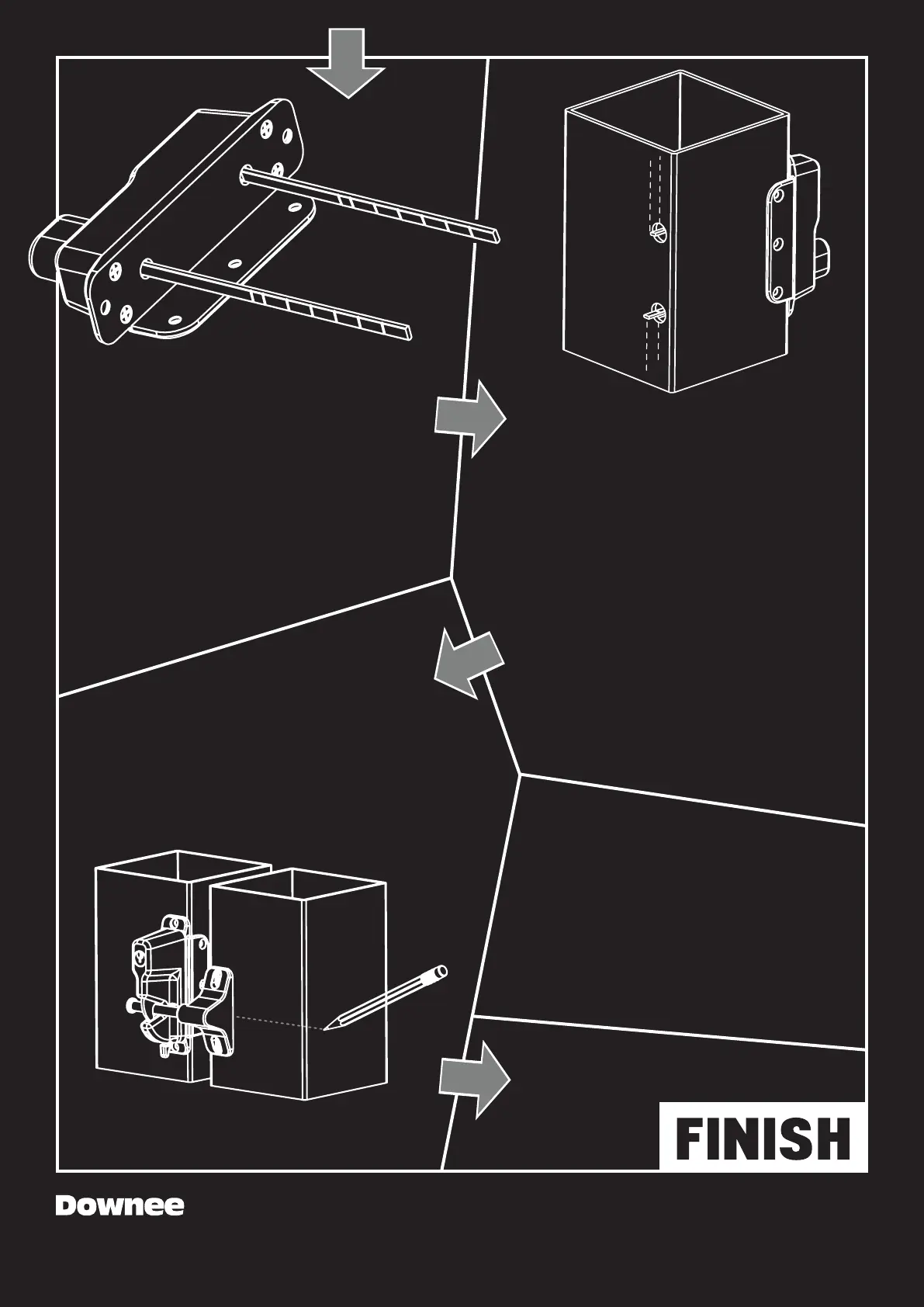

Use one screw to hold Button body on
fence post.
Trim plastic tubes to match post depth
and insert.
Check both sides are unlocked. Hold the
Latch in place and test the Button works
the Latch.
All good? Completely mount Latch and
Button.
Not working? See Troubleshooting below.
Sit Striker in Latch and mark the Striker’s
centre on gate. Drill pilot holes and mount.
Test the locking and unlocking of the Latch
and Button.
Protrudes
7mm
Protrudes
13mm
Maintenance
• Inspect Latch annually or more frequently if the gate is used often.
• Only lubricate with powdered graphite lubricant. No petroleum-based lubricants, oils etc.
• Keep Latch free of contaminants
TROUBLESHO OT ING
If it doesn’t lock, rotate Lock Spindle 180°.
1. Remove keys.
2. Remove Latch off post.
3. Hold the Key, rotate Lock Spindle 180°.
4. Remount Latch, careful not to turn Lock
or Spindle.
Continued
To protect the
Latch from slam
damage add a
Gate Stop.
Lock
Spindle
Button
Spindle
Trim Spindles
Button
POST (mm) TRIM MARK
50 2
75 4
90 5
100 6
125 no trim
Trim both Spindles using the trim
marks.
2
4
5
6
2
4
5
6
To Next Page
