11
ALWAYS disconnect air supply before changing
the hook direction.
The hook can be directed in the two direction. Re-
move the hexagon socket cap screw with hexagon
wrench, change the direction, and then, put back the
bolt to reassemble.

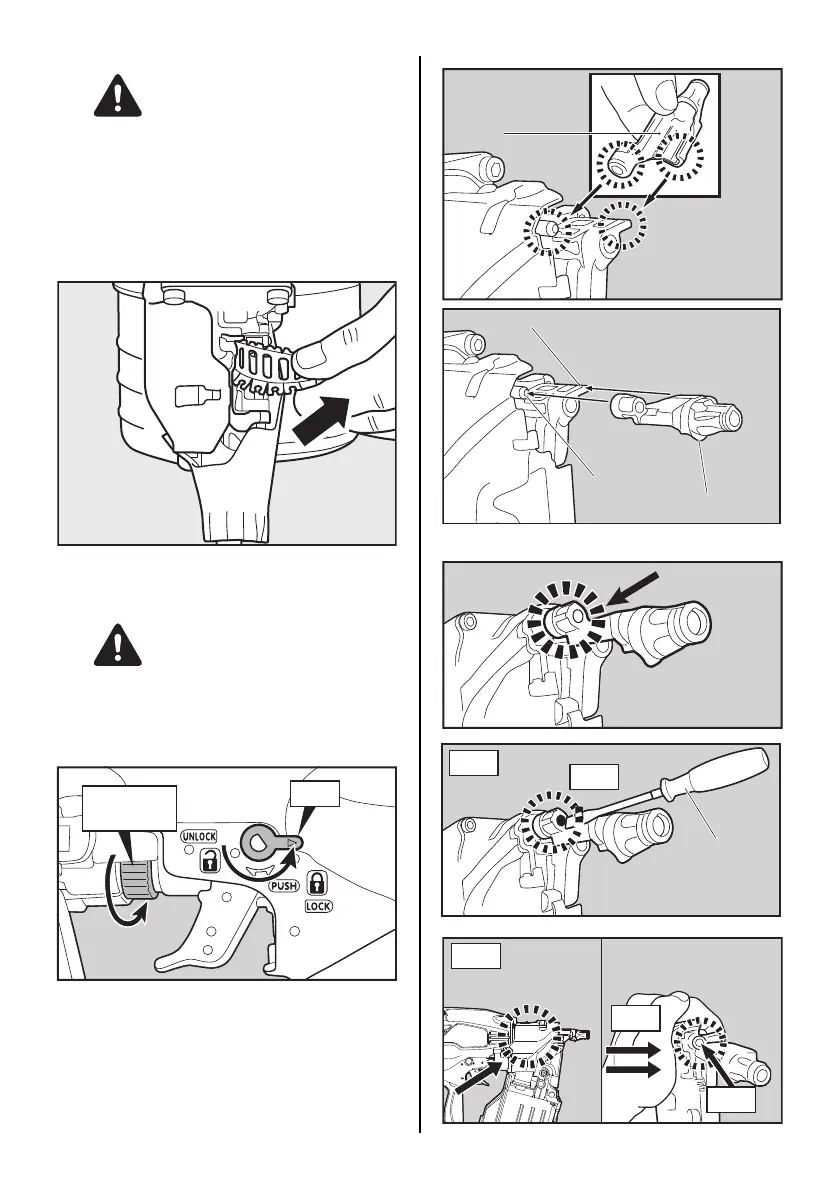

HOW TO REMOVE USED PLASTIC SHEET COLLATION
As nails are driven the plastic sheet will feed out of the tool. When
two inches or more has been fed out it can be torn away by pull-
ing against the tear edge in the nose.
HOW TO REATTACH THE REMOVABLE "CONTACT NOSE".
ALWAYS disconnect air supply before reassem-
bling the contact nose.
1 Lock the Trigger and turn the depth adjust dial to the shal-
lowest position.
2 Align the Contact Nose to the parts pointed by the arrows.
3
With a Flathead screwdriver (see A) or manually (see B),push
the Contact Nose at the place indicated below until it clicks.
Contact Arm
Connection points
Contact Nose
Push here until it
clicks.
Push
A
Flathead
screwdriver
B
Push
Press
Keep pressing it and
push the Contact
Nose until it clicks.
Press here with
your palm.
To Next Page
