10

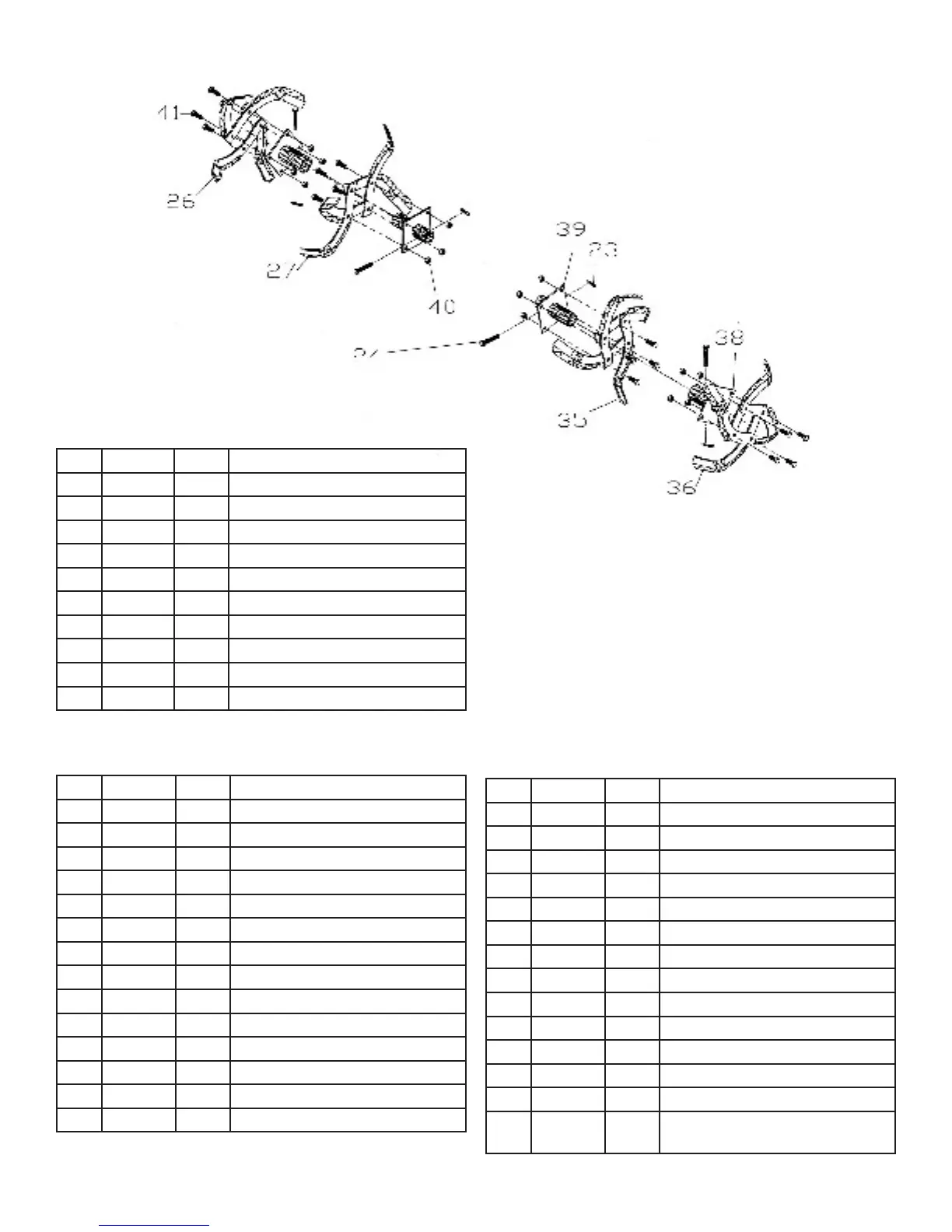

Tine Assembly
Illustration 2
Ref. Part QTY Description
23 460312 5 Hairpin
24 359768 5 Clevis Pin
26 130828 1 Tine Assembly, RH Outer
27 130830 1 Tine Assembly, RH Inner
35 130829 1 Tine Assembly, LH Outer
36 130827 1 Tine Assembly, LH Inner
38 130822 2 Tube WLDT - Outside
39 130823 2 Tube WLBT - Inside
40 444721 16 Nut .375 - 16 Lock
41 400260 16 Bolt .375 - 16 x 1.00
Transmission Assembly --Illustration 3
Ref Part QTY Description
1 359792 1 R/H Case Side
2 359791 1 L/H Case Side
3 359312 1 Oil Fill Plug
4 359310 1 Expansion Plug
5 359795 2 Bushing Input
6 400104 17 Capscrew, 1/4 x 1/2 NC5
7 445768 17 1/4” Hex Nut, Whizlock
8 359294 1 Oil Seal Input
9 455049 a/r Shim Washer 1” x .625 x .0625
9-A 455062 a/r Shim Washer 1” x 41/64 x .0312
10 140108 1 Bushing Powder - 5/8”
11 463017 1 Key - Woodruff
12 359781 1 Input Shaft Assembly
13 359786 1 Cluster Sprocket
Ref Part QTY Description
14 359787 2 Bearing Idler
15 359783 1 Chain Upper #35 x 50L (Mini)
16 359784 1 Chain Lower #40 x 40L (Mini)
17 359788 1 Spacer, Bearing Race (Bushing)
18 359800 1 Gasket, Chain Case
19 359782 1 Output Shaft Assembly
20 359799 1 Spacer, Output Shaft
21 359320 1 Washer, 2” x1-1/16” x .085
22 359796 1 Bearing, Output (Mini)
23 359829 2 Oil Seal Output (Mini)
24 359828 2 Dust Cover
25 408883 1 Screw, 1/4” x 1/2 Hex Washer
26 359336 1 Washer, Rubber Seal
27 455065 a/r Shim Washer 1/2” x 1.03” x
.0312
