Maximum 058-0322-8 User Manual

1 2
model nos. 058-0322-8 | 058-0323-6 | 058-0324-4 | contact us 1-888-670-6682
SPECIFICATIONS MAIN FEATURES
Model
No.
Max. Torque
(ft-lb)
Square Drive
(inches)
Torque Measuring Range
(ft-lb)
Length
(mm)
058-0322-8 250.7
1/2
12.5-250.7 650
058-0323-6 99.5
3/8
5-99.5 415
058-0324-4 22.12
1/4
1.11-22.12 390
All Models
Accuracy *1
CW: ±2%
CCW: ±3%
Bright LED 12 LED(4 Red+8 Green)
Operation Mode Peak hold / Track
Unit Selection N-m, ft-lb, in-lb, kg-cm
Head Type Lever Type Ratchet
Gear Teeth 36
Button 4
PC Connectivity No
Battery *2 AA x 2
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Humidity Up to 90% non-condensing
Drop Test 3'(1m)
Vibration Test *3 10G
Environmental test *4 Pass
Electromagnetic compatibility test *5 Pass
NOTE:
Accuracy is guaranteed from 20% to 100% full scale.
* See note on page 3
MAIN FEATURES
• Digital torque value readout.
• Accuracy ±2% (CW) & CCW: ±3%.
• CW and CCW operation.
• Peak hold and track mode selectable.
• Buzzer and LED indicator for the pre-settable target torque.
• Engineering units (N-m, ft-lb, in-lb, kg-cm) selectable.
• Auto Sleep after about 5 minutes idle.
• Rechargeable batteries are compatible.

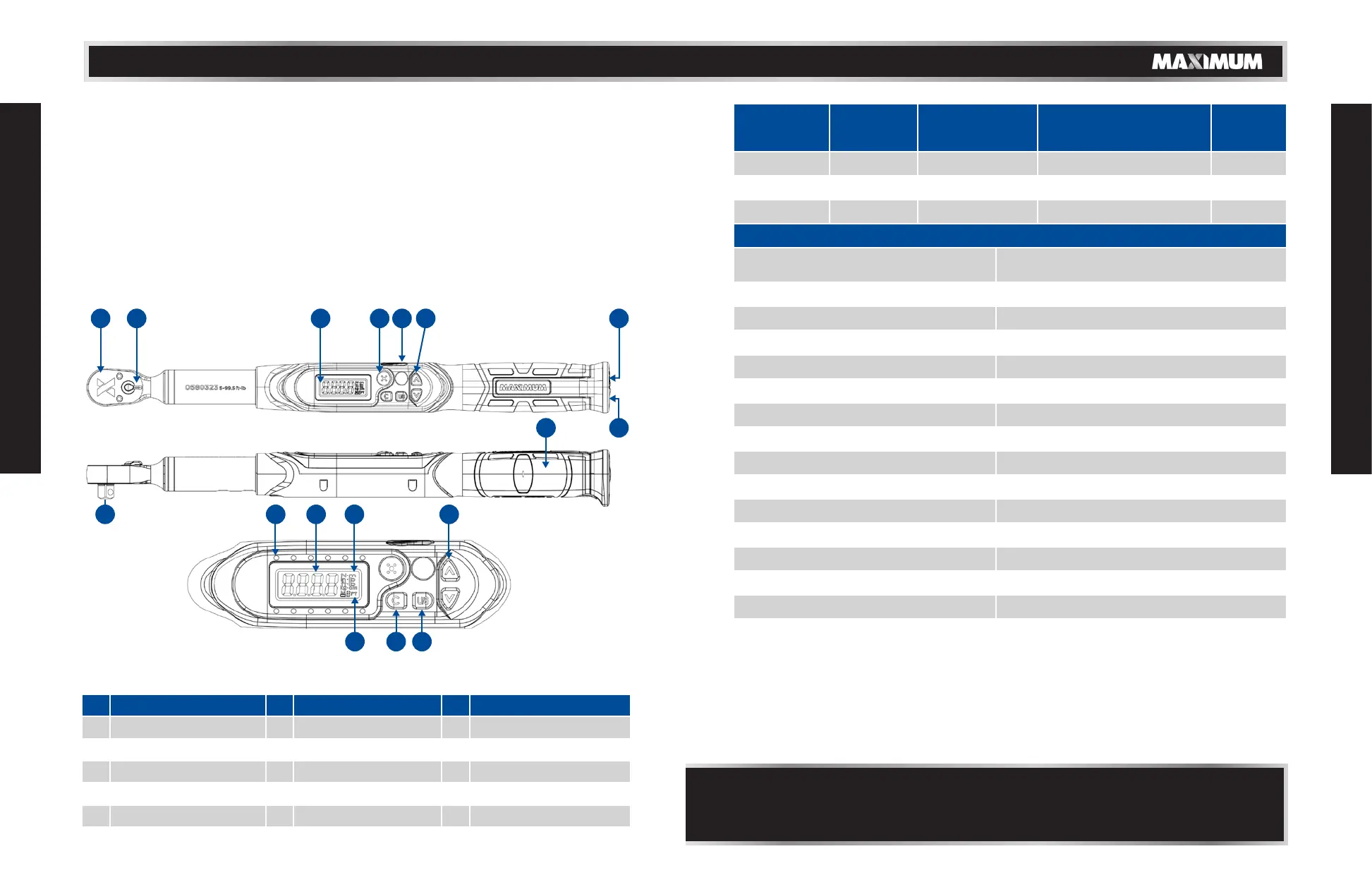

NAMES AND FUNCTIONS OF PARTS
No. Description No. Description No. Description
1 Reversible Ratchet Head 7 Battery Compartment 13 Unit
(N-m, ft-lb, in-lb, kg-cm)
2 Direction Lever 8 Battery Cover 14 Peak Hold
(P)
/ Track Mode
(T)
3 LCD Readout 9 Ratchet Drive 15 Power On / Clear Button
4 Buzzer 10 Anti-slip Handle 16 Unit / Setting Button
5 Communication Port 11 LED Indicator 17 Up / Down Button
6 Buttons 12 Torque Value
1 2 3 4 5 6 7
10
11 12 13 17
8
14 15
9
16
®
