model no. 054-2312-8 | contact us 1-888-670-6682

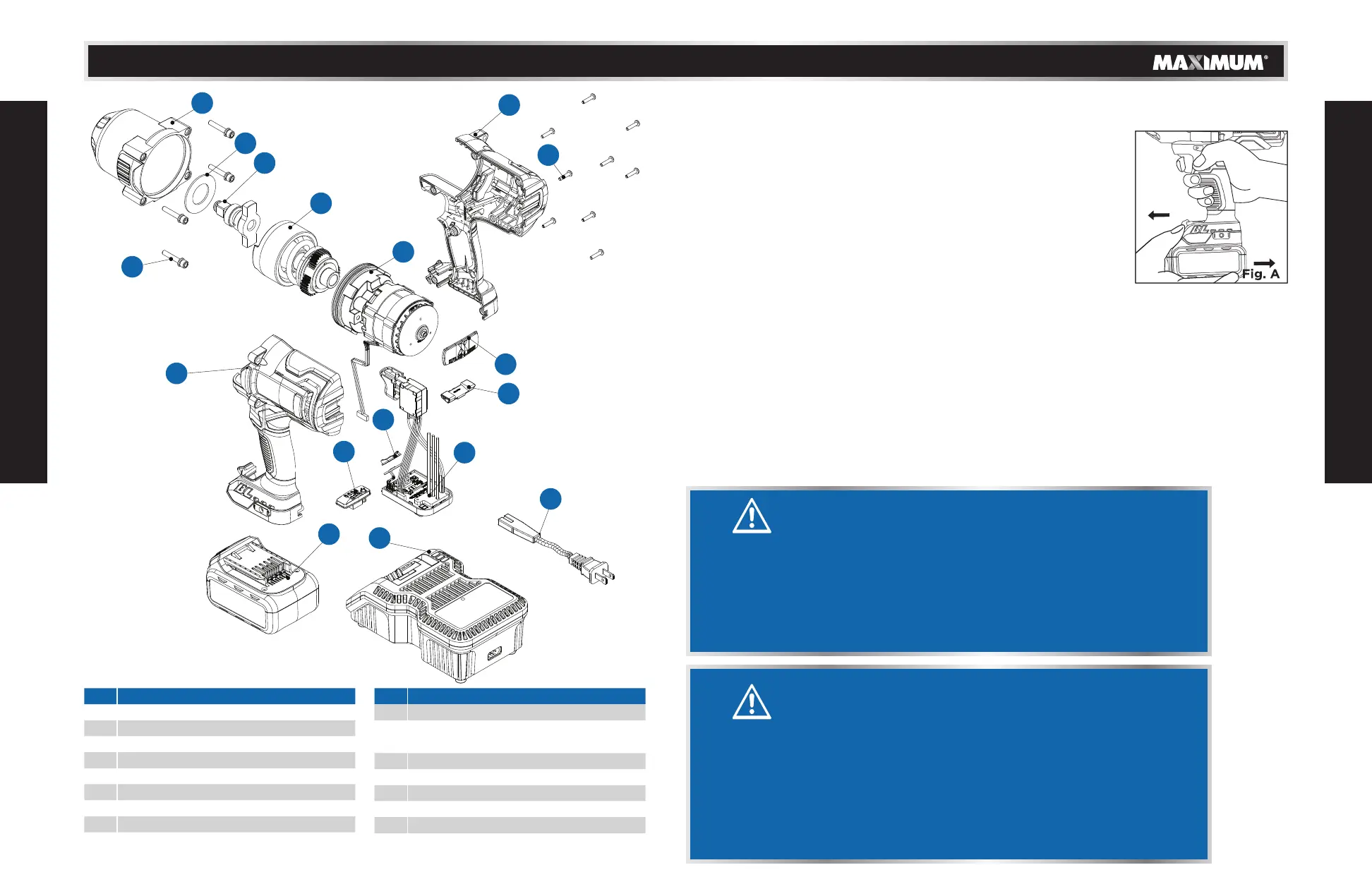

KNOW YOUR T00L
NO. DESCRIPTION
1 RIGHT HOUSING
2 SCREW
3 GEAR BOX ASSEMBLY
4 WASHER
5 OUTPUT SHAFT
6 ANVIL ASSEMBLY
7 MOTOR ASSEMBLY
8 SCREW
9 LEFT HOUSING
NO. DESCRIPTION
10 REAR COVER
11 FORWARD AND REVERSE
LEVER
12 POWER INDICATOR COVER
13 LED COVER
14 SWITCH AND PCB ASSEMBLY
15 BATTERY PACK
16 CHARGER
17 DETACHABLE CABLE AND PLUG
FITTING AND REMOVING THE BATTERY PACK TO THE
IMPACT WRENCH
• To install the battery pack to the tool, align the raised
portion of the battery pack with the grooves on the bottom
of the tool, and slide it firmly into the handle until you hear
the lock snap into place (Fig. A).
• To remove the battery pack from the tool, press the battery
pack release button and slide the battery pack completely
out of tool handle.
CHARGING PROCEDURE
• Connect the plug cable to the charger, and then plug into
an appropriate outlet before inserting battery pack (Fig. B).
All three charging lights will be on for two seconds and then
off.
• Insert the battery pack into the charger, making sure the
pack is fully seated in the charger (Fig. C). During the
charging process, the charging lights will indicate the
charging status as follows:
- Less than 30% charged: all three charging lights will
blink in sequence.
OPERATING INSTRUCTIONS
WARNING!
• Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is enough to
cause serve injury.
• Before attempting to use this cordless tool, become familiar
with all of its operating features and safety requirements.
• To reduce the risk of serious personal injury, turn tool off
and disconnect battery pack before making any adjustments
or removing/installing attachments or accessories.
CAUTION!
• Before attempting to charge the battery, check the charger
and the battery to ensure the charging equipment matches
the battery supplied. The components are all labelled with
component numbers.
• The rechargeable battery is not fully charged on leaving the
factory. Charge the rechargeable battery before first use.
• Recharge discharged batteries as soon as possible after use
or battery life may be greatly diminished. For longest battery
life, do not discharge batteries fully.
10
11
14
13
12
9
15
16
17
1
2
6
7
8
5
4
3
