Model #
Swing Radius
(SR)
Dimensions
inches (millimeters)
A B C D E F
EXA40
4.0
(102)
4.8
(122)
1.0
(26)
2.1
(54)
3.7
(94)
2.4
(61)
2.4
(61)
EXA50
4.3
(110)
5.5
(140)
1.3
(34)
3.4
(87)
3.7
(94)
3.3
(84)
2.4
(61)
EXA60
4.6
(117)
6.0
(153)
1.5
(39)
4.1
(105)
4.1
(105)
3.9
(100)
2.4
(61)
3
EXA Modulating Valve Series

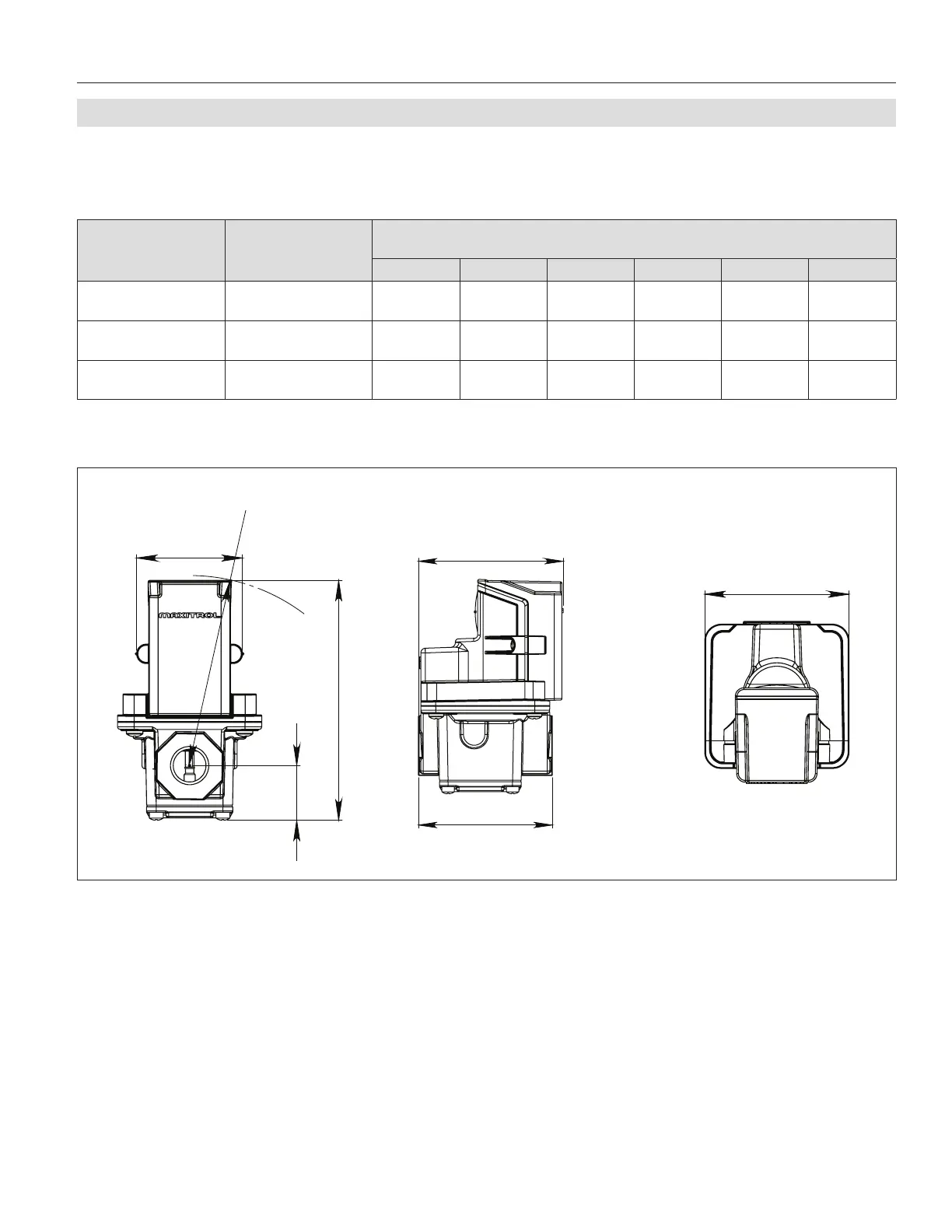

Figure 3: EXA Modulating Valve Series Dimensions
B
A
F
SR
C
D
Table 4: Dimensions
E
© 2019 Maxitrol
© 2019 Maxitrol Company, All Rights Reserved.
DIMENSIONS
NOTE: Dimensions are to be used only as an aid in designing clearance for the valve. Actual production dimensions may vary
somewhat from those shown (see Table 4 and Figure 3).
